E
EPC Data

DECK BOARD & DECK TRIM COVER

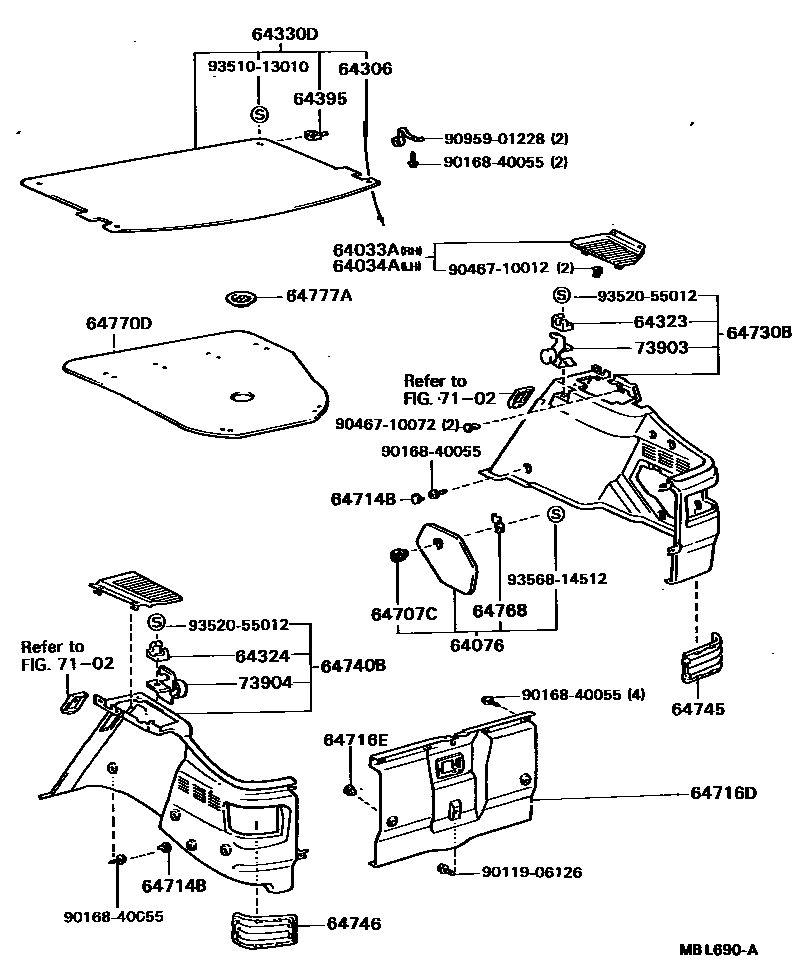

Parts diagram
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-20060-01i198708-198908
BLACK,TRIM2#
sub64033-20070
main64033-20060-05i198708-198908
DARK BEIGE,TRIM4#
sub64033-20070
main64033-20060-14i198708-198908
DEEP BLUE,TRIM8#
sub64033-20070
main64033-20070-01i198708-198908
BLACK,TRIM2#
main64033-20070-01i198708-198908
W(SPEAKER),BLACK,TRIM2#
main64033-20070-04i198708-198908
W(SPEAKER),DEEP BLUE,TRIM8#
main64033-20070-04i198708-198908
DEEP BLUE,TRIM8#
main64033-20070-05i198708-198908
DARK BEIGE,TRIM4#
main64033-20070-05i198708-198908
W(SPEAKER),DARK BEIGE,TRIM4#
main64033-20080-01i198708-198908
W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#
sub64033-20090
main64033-20080-05i198708-198908
W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#
sub64033-20090
main64033-20080-14i198708-198908
W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#
sub64033-20090
main64033-20090-01i198708-198908
W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#
main64033-20090-01i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),BLACK,TRIM2#
main64033-20090-01i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER,BLACK,TRIM2#
main64033-20090-04i198708-198908
W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#
main64033-20090-04i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),DEEP BLUE,TRIM8#
main64033-20090-04i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER,DEEP BLUE,TRIM8#
main64033-20090-05i198708-198908
W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#
main64033-20090-05i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),DARK BEIGE,TRIM4#
main64033-20090-05i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER,DARK BEIGE,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-20060-01i198708-198908
BLACK,TRIM2#
sub64034-20070
main64034-20060-05i198708-198908
DARK BEIGE,TRIM4#
sub64034-20070
main64034-20060-14i198708-198908
DEEP BLUE,TRIM8#
sub64034-20070
main64034-20070-01i198708-198908
BLACK,TRIM2#
main64034-20070-01i198708-198908
W(SPEAKER),BLACK,TRIM2#
main64034-20070-04i198708-198908
DEEP BLUE,TRIM8#
main64034-20070-04i198708-198908
W(SPEAKER),DEEP BLUE,TRIM8#
main64034-20070-05i198708-198908
W(SPEAKER),DARK BEIGE,TRIM4#
main64034-20070-05i198708-198908
DARK BEIGE,TRIM4#
main64034-20080-01i198708-198908
W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#
sub64034-20090
main64034-20080-05i198708-198908
W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#
sub64034-20090
main64034-20080-14i198708-198908
W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#
sub64034-20090
main64034-20090-01i198708-198908
W(REAR 3-POINT SEAT BELT),BLACK,TRIM2#
main64034-20090-01i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),BLACK,TRIM2#
main64034-20090-04i198708-198908
W(REAR 3-POINT SEAT BELT),DEEP BLUE,TRIM8#
main64034-20090-04i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),DEEP BLUE,TRIM8#
main64034-20090-05i198708-198908
W(REAR 3-POINT SEAT BELT & SPEAKER),DARK BEIGE,TRIM4#
main64034-20090-05i198708-198908
W(REAR 3-POINT SEAT BELT),DARK BEIGE,TRIM4#
64076COVER, DECK TRIM SIDE JACK
main64076-20010-01i198708-198908
BLACK,TRIM2#
sub64076-20010
main64076-20010-04i198708-198908
DEEP BLUE,TRIM8#
sub64076-20010
main64076-20010-05i198708-198908
DARK BEIGE,TRIM4#
sub64076-20010
main64076-20020-01i198710-198908
BLACK,TRIM2#
main64076-20020-04i198710-198908
DEEP BLUE,TRIM8#
main64076-20020-05i198710-198908
DARK BEIGE,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-12030i198708-198710
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-10010i198708-198908
64324CLAMP, PACKAGE TRAY TRIM, NO.2
main64324-10010i198708-198908
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-20720-01i198708-198908
BLACK,TRIM2#
sub64330-20720
main64330-20720-04i198708-198908
DEEP BLUE,TRIM8#
sub64330-20720
main64330-20720-05i198708-198908
DARK BEIGE,TRIM4#
sub64330-20720
64395PIN, PACKAGE TRAY TRIM HINGE
main64395-16010i198708-198908
64707CKNOB, JACK COVER
main64982-16020-11i198708-198908
BLACK,TRIM2#
sub64982-16020
main64982-16020-25i198708-198908
DARK BEIGE,TRIM4#
sub64982-16020
main64982-16020-44i198708-198908
DEEP BLUE,TRIM8#
sub64982-16020
64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)
main90950-01503-01i198708-198807
BLACK,TRIM2#
sub90950-01503
main90950-01503-04i198708-198807
BLUE,TRIM8#
sub90950-01503
main90950-01503-05i198708-198807
DARK BEIGE,TRIM4#
sub90950-01503
64716DCOVER, DECK TRIM, REAR
main64716-20160-01i198708-198908
BLACK,TRIM2#
main64716-20160-04i198708-198908
DEEP BLUE,TRIM8#
main64716-20160-05i198708-198908
DARK BEIGE,TRIM4#
main64716-20210-01i198710-198908
BLACK,TRIM2#
main64716-20210-04i198710-198908
DEEP BLUE,TRIM8#
main64716-20210-05i198710-198908
DARK BEIGE,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-09068-04i198708-198908
DEEP BLUE,TRIM8#
sub90467-09068
main90467-09068-05i198708-198901
DARK BEIGE,TRIM4#
sub90467-09068
main90467-09068-11i198708-198908
BLACK,TRIM2#
sub90467-09068
main90467-09068-E0i198809-198908
DARK BEIGE,TRIM4#
sub90467-09068
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-20070-01i198708-198908
BLACK,TRIM2#
main64730-20070-04i198708-198908
DEEP BLUE,TRIM8#
main64730-20070-05i198708-198908
DARK BEIGE,TRIM4#
main64730-20080-01i198710-198908
BRACK,TRIM2#
main64730-20080-04i198710-198908
DEEP BLUE,TRIM8#
main64730-20080-05i198710-198908
DARK BEIGE,TRIM4#
64740BBOARD, DECK TRIM SIDE, LH
main64740-20070-01i198708-198908
BLACK,TRIM2#
main64740-20070-04i198708-198908
DEEP BLUE,TRIM8#
main64740-20070-05i198708-198908
DARK BEIGE,TRIM4#
main64740-20080-01i198710-198908
BLACK,TRIM2#
main64740-20080-04i198710-198908
DEEP BLUE,TRIM8#
main64740-20080-05i198710-198908
DARK BEIGE,TRIM4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-20030-01i198708-198908
BLACK,TRIM2#
sub64745-20030
main64745-20030-04i198708-198908
DEEP BLUE,TRIM8#
sub64745-20030
main64745-20030-05i198708-198908
DARK BEIGE,TRIM4#
sub64745-20030
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-20030-01i198708-198908
BLACK,TRIM2#
sub64746-20030
main64746-20030-04i198708-198908
DEEP BLUE,TRIM8#
sub64746-20030
main64746-20030-05i198708-198908
DARK BEIGE,TRIM4#
sub64746-20030
64768STOPPER, JACK COVER
main64768-14020i198708-198908
64770DCOVER ASSY, SPARE WHEEL
main64770-20080i198708-198908
main64770-20090i198708-198908
main64770-20130i198710-198908
64777ACLAMP, SPARE WHEEL COVER
main64777-32030i198708-198908
7102
73903BRACKET SUB-ASSY, REAR SHELF, RH
main73903-16010i198708-198908
73904BRACKET SUB-ASSY, REAR SHELF, LH
main73904-16010i198708-198908
9011906126
main90119-06126
9016840055
main90168-40055
9046710012
main90467-10012
9046710072
main90467-10072
9095901228
main90959-01228
9351013010
main93510-13010
9352055012
main93520-55012
9356814512
main93568-14512

30 parts on this diagram · 1 diagram in section
