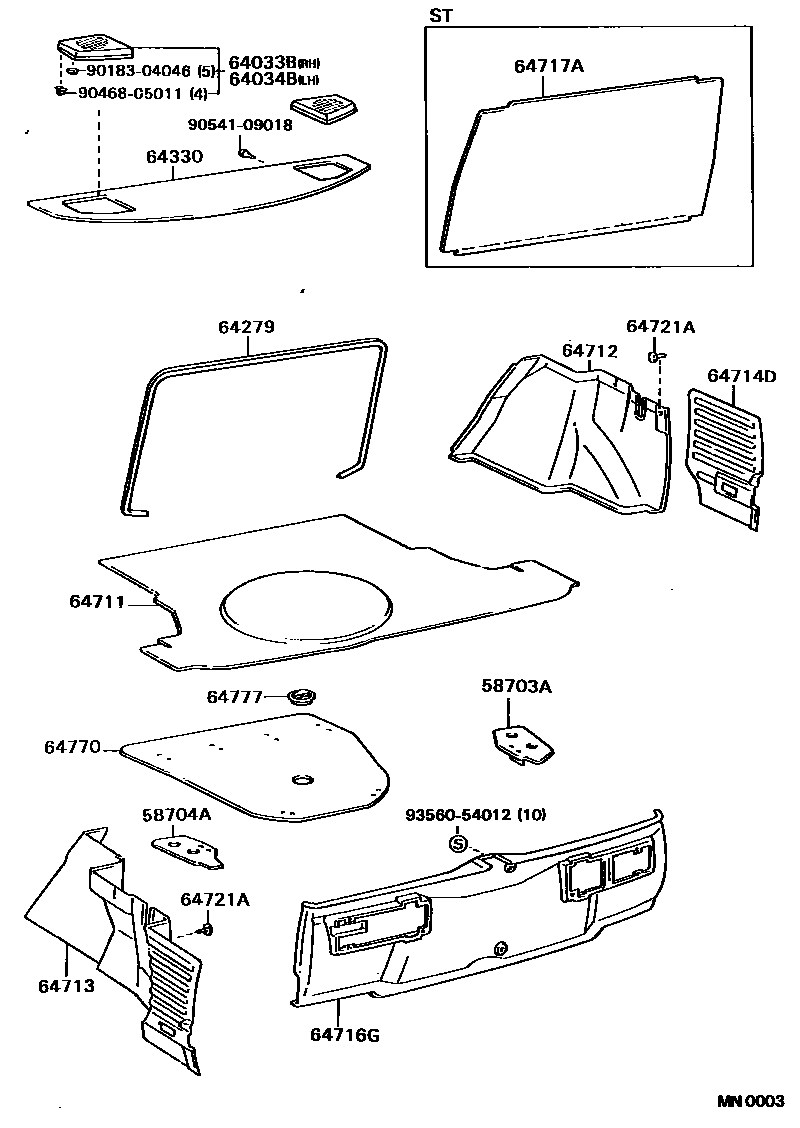

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20080iAT160,ST162..CP,CVT198708-198908

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20040iAT160,ST162..CP,CVT198708-198908

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20020-01iAT160,ST162..CP..LHD198708-198908

BLACK,TRIM2#

main64033-20020-04iAT160,ST162..CP..LHD198708-198908

DEEP BLUE,TRIM8#

main64033-20020-05iAT160,ST162..CP..LHD198708-198908

DARK BEIGE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20020-01iAT160,ST162..CP..LHD198708-198908

BLACK,TRIM2#

main64034-20020-04iAT160,ST162..CP..LHD198708-198908

DEEP BLUE,TRIM8#

main64034-20020-05iAT160,ST162..CP..LHD198708-198908

DARK BEIGE,TRIM4#

64279PROTECTOR, ROOM PARTITION

main64279-20030-01iAT160,ST162..(CP,CVT)..TWC198708-198908

BLACK,TRIM2#

sub64279-20030

main64279-20030-04iAT160,ST162..CP..TWC198708-198908

DEEP BLUE,TRIM8#

sub64279-20030

main64279-20030-05iAT160,ST162..CP..TWC198708-198908

DARK BEIGE,TRIM4#

sub64279-20030

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20660-01iAT160..CP..CBR198708-198908

W(SPEAKER),BLACK,TRIM2#

sub64330-20660

main64330-20660-04iAT160..CP..CBR198708-198908

W(SPEAKER),DEEP BLUE,TRIM8#

sub64330-20660

main64330-20660-05iAT160..CP..CBR198708-198908

W(SPEAKER),DARK BEIGE,TRIM4#

sub64330-20660

main64330-20670-01iAT160,ST162..CP..LHD..TWC198708-198908

W(SPEAKER),BLACK,TRIM2#

sub64330-20670

main64330-20670-04iST162..CP..RHD198708-198908

W(SPEAKER),DEEP BLUE,TRIM8#

sub64330-20670

main64330-20670-05iST162..CP..RHD198708-198908

W(SPEAKER),DARK BEIGE,TRIM4#

sub64330-20670

main64330-20770-01iAT160,ST162..CP..TWC198708-198908

BLACK,TRIM2#

sub64330-20770

main64330-20770-04iAT160,ST162..CP..TWC198708-198908

DEEP BLUE,TRIM8#

sub64330-20770

main64330-20770-05iAT160,ST162..CP..TWC198708-198908

DARK BEIGE,TRIM4#

sub64330-20770

main64330-20790-01iAT160..CP..CBR198708-198908

BLACK,TRIM2#

sub64330-20790

main64330-20790-04iAT160..CP..CBR198708-198908

DEEP BLUE,TRIM8#

sub64330-20790

main64330-20790-05iAT160..CP..CBR198708-198908

DARK BEIGE,TRIM4#

sub64330-20790

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20310iAT160..CP..CBR198708-198908

main64711-20360iAT160,ST162..(CP,CVT)..TWC198708-198908

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20120iAT160,ST162..CP,CVT198708-198908

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64072-20100iAT160,ST162..CP,CVT198708-198908

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20210iAT160,ST162..CP,CVT198708-198908

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20150iAT160..CP..CBR198708-198712

sub64716-20170

main64716-20151-03iAT160..CP..CBR198712-198908

GRAY,TRIM2#,4#,8#

sub64716-20170

main64716-20170-01iST162..CVT198710-198712

BLACK,TRIM2#

sub64716-20170

main64716-20171-01iST162..CVT198712-198908

BRACK,TRIM2#

sub64716-20170

main64716-20171-03iAT160,ST162..CP..TWC198712-198908

GRAY,TRIM2#,4#,8#

sub64716-20170

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20130iAT160..CP..CBR198708-198908

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03iAT160,ST162..CP,CVT198708-198807

GRAY,TRIM2#,4#,8#

sub90467-07042

sub90467-06175

64770COVER ASSY, SPARE WHEEL

main64770-20080iAT160..CP..CBR198708-198908

main64770-20090iAT160,ST162..(CP,CVT)..TWC198708-198908

64777CLAMP, SPARE WHEEL COVER

main64777-32030iST165198708-198908

9018304046

main90183-04046

9046805011

main90468-05011

9054109018

main90541-09018

9356054012

main93560-54012

19 parts on this diagram · 1 diagram in section
