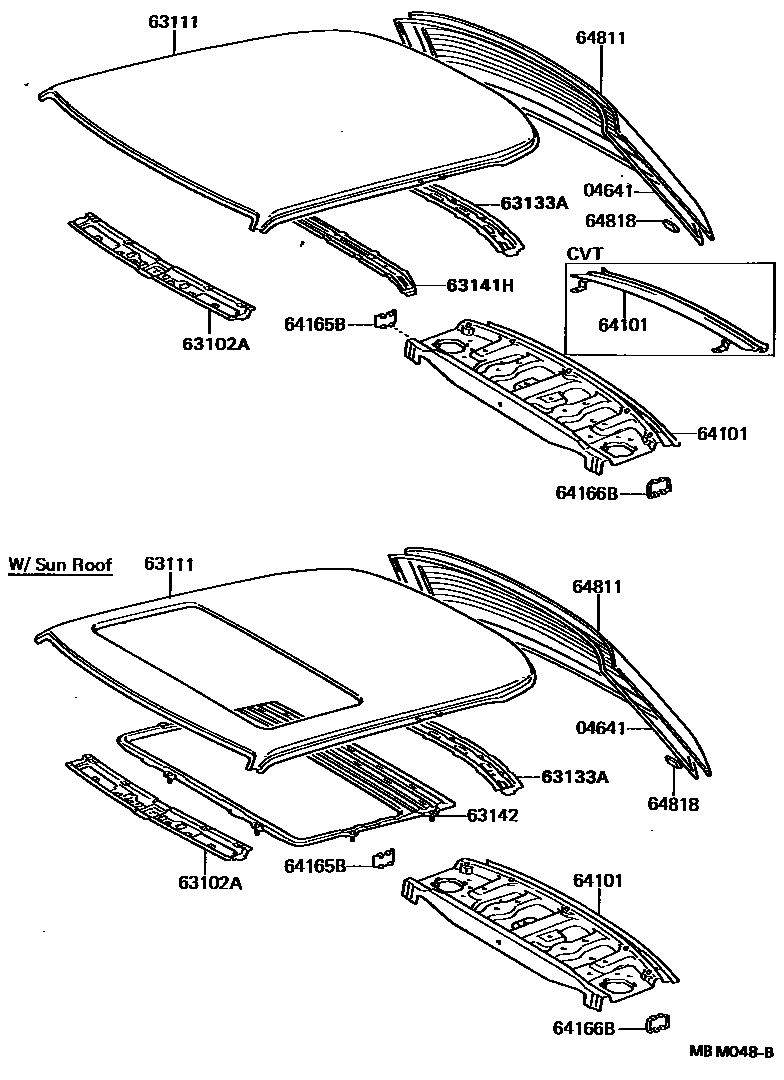

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iAT160,ST162..CP198708-198908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090iAT160,ST16#198708-198908

63111PANEL, ROOF

main63111-20220iAT160,ST162..CP,CVT198708-198908

main63111-20230iAT160,ST162..CP198708-198908

W(SUN ROOF)

main63111-20240iAT160,ST16#..LB198708-198908

main63111-20250iAT160,ST16#..LB198708-198908

W(SUN ROOF)

63133AFRAME, BACK WINDOW, UPPER

main63133-20120iAT160,ST162..CP,CVT198708-198908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20060iAT160,ST16#198708-198908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040iAT160,ST16#..CP,LB198708-198908

64101PANEL SUB-ASSY, UPPER BACK

main64101-20220iAT160..CP..CBR198708-198908

main64101-20240iAT160,ST162..CP..TWC198708-198908

main64101-20280iST162..CVT198708-198908

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20030iAT160,ST162..CP198708-198908

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20020iAT160,ST162..CP198708-198908

64811GLASS, BACK WINDOW

main64801-20110iAT160,ST162..CP198708-198908

*EHTT,T=4.0

main64801-20120iAT160,ST162..CP..LHD198708-198908

*EHTT,T=4.0,COLD SPEC

64818SPACER, BACK WINDOW GLASS

main64818-30050iAT160,ST162..CP198708-198908

11 parts on this diagram · 3 diagrams in section
