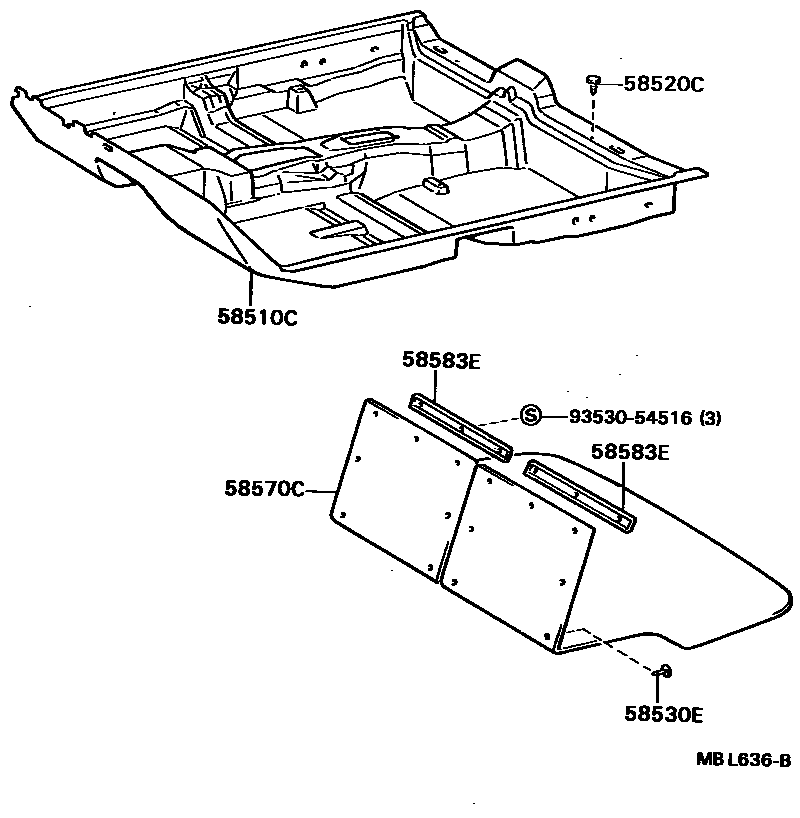

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2B031iST162..(CP,LB)..RHD198803-198908

main58510-2B031-01iST162..(CP,LB)..RHD198708-198908

BLACK,TRIM2#

main58510-2B031-04iST162..(CP,LB)..RHD198708-198908

DEEP BLUE,TRIM8#

main58510-2B031-05iST162..(CP,LB)..RHD198708-198908

DARK BEIGE,TRIM4#

main58510-2B221iST162..CVT..RHD198803-198908

main58510-2B221-01iST162..CVT..RHD198708-198908

BLACK,TRIM2#

main58510-2B231iST162..CVT..LHD198803-198908

main58510-2B231-01iST162..CVT..LHD198708-198908

BLACK,TRIM2#

main58510-2B240-01iAT160..CBR198708-198908

BLACK,TRIM2#

main58510-2B240-04iAT160..CBR198708-198908

DEEP BLUE,TRIM8#

main58510-2B240-05iAT160..CBR198708-198908

DARK BEIGE,TRIM4#

main58510-2B250-01iST165..LHD198710-198905

BLACK,TRIM2#

main58510-2B250-04iST165..LHD198710-198905

DEEP BLUE,TRIM8#

main58510-2B250-05iST165..LHD198710-198905

DARK BEIGE,TRIM4#

main58510-2B500-01iST165..RHD198710-198905

BLACK,TRIM2#

main58510-2B500-04iST165..RHD198710-198905

DEEP BLUE,TRIM8#

main58510-2B500-05iST165..RHD198710-198905

DARK BEIGE,TRIM4#

main58510-2B540iAT160,ST162..(CP,LB)..LHD..TWC198803-198908

main58510-2B540-01iAT160,ST162..(CP,LB)..LHD..TWC198709-198908

BLACK,TRIM2#

main58510-2B540-04iAT160,ST162..(CP,LB)..LHD..TWC198709-198908

DEEP BLUE,TRIM8#

main58510-2B540-05iAT160,ST162..(CP,LB)..LHD..TWC198709-198908

DARK BEIGE,TRIM4#

main58510-2D260-01iST165..LHD198905-198908

BLACK,TRIM2#

main58510-2D260-04iST165..LHD198905-198908

DEEP BLUE,TRIM8#

main58510-2D260-05iST165..LHD198905-198908

DARK BEIGE,TRIM4#

main58510-2D270-01iST165..RHD198905-198908

BLACK,TRIM2#

main58510-2D270-04iST165..RHD198905-198908

DEEP BLUE,TRIM8#

main58510-2D270-05iST165..RHD198905-198908

DARK BEIGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×2iAT160,ST16#..LB198808-198908

BLACK,TRIM2#

sub90467-07049

main90467-06016-30×2iAT160,ST16#..CP,LB198708-198808

BLUE,TRIM8#

sub90467-07049

main90467-06016-45×2iAT160,ST16#..LB198808-198908

DARK BEIGE,TRIM4#

sub90467-07049

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06016-11×11iST165198710-198908

BLACK,TRIM2#

sub90467-07049

main90467-06016-30×8iAT160,ST162..LB198708-198908

BLUE,TRIM8#

sub90467-07049

main90467-06016-45×11iST165198710-198908

DARK BEIGE,TRIM4#

sub90467-07049

58570CCARPET ASSY, REAR FLOOR

main58570-20060-01iAT160..LB..CBR198708-198908

BLACK,TRIM2#

main58570-20060-04iAT160..LB..CBR198708-198908

DEEP BLUE,TRIM8#

main58570-20060-05iAT160..LB..CBR198708-198908

DARK BEIGE,TRIM4#

main58570-20080-01iAT160,ST162..LB..TWC198708-198908

BLACK,TRIM2#

main58570-20080-04iAT160,ST162..LB..TWC198708-198908

DEEP BLUE,TRIM8#

main58570-20080-05iAT160,ST162..LB..TWC198708-198908

DARK BEIGE,TRIM4#

main58570-20100-01iST165198710-198908

BLACK,TRIM2#

main58570-20100-04iST165198710-198908

DEEP BLUE,TRIM8#

main58570-20100-05iST165198710-198908

DARK BEIGE,TRIM4#

main58570-20110-01iST165..LHD198812-198908

W(ANTI-LOCK BRAKE SYSTEM & TEMPORARY TIRE),BLACK,TRIM2#

main58570-20110-04iST165198710-198812

W(ANTI-LOCK BRAKE SYSTEM),DEEP BLUE,TRIM8#

main58570-20110-05iST165198710-198812

W(ANTI-LOCK BRAKE SYSTEM),DARK BEIGE,TRIM4#

main58570-20120-01iST165198812-198908

W(ANTI-LOCK BRAKE SYSTEM),BLACK,TRIM2#

main58570-20120-04iST165198812-198908

W(ANTI-LOCK BRAKE SYSTEM),DEEP BLUE,TRIM8#

main58570-20120-05iST165198812-198908

W(ANTI-LOCK BRAKE SYSTEM),DARK BEIGE,TRIM4#

58583EPLATE, REAR SEATBACK CARPET SUPPORT

main58583-20030-01×2iAT160,ST16#..LB198708-198908

BLACK,TRIM2#

main58583-20030-04×2iAT160,ST16#..LB198708-198908

DEEP BLUE,TRIM8#

main58583-20030-05×2iAT160,ST16#..LB198708-198908

DARK BEIGE,TRIM4#

9353054516

main93530-54516

6 parts on this diagram · 1 diagram in section
