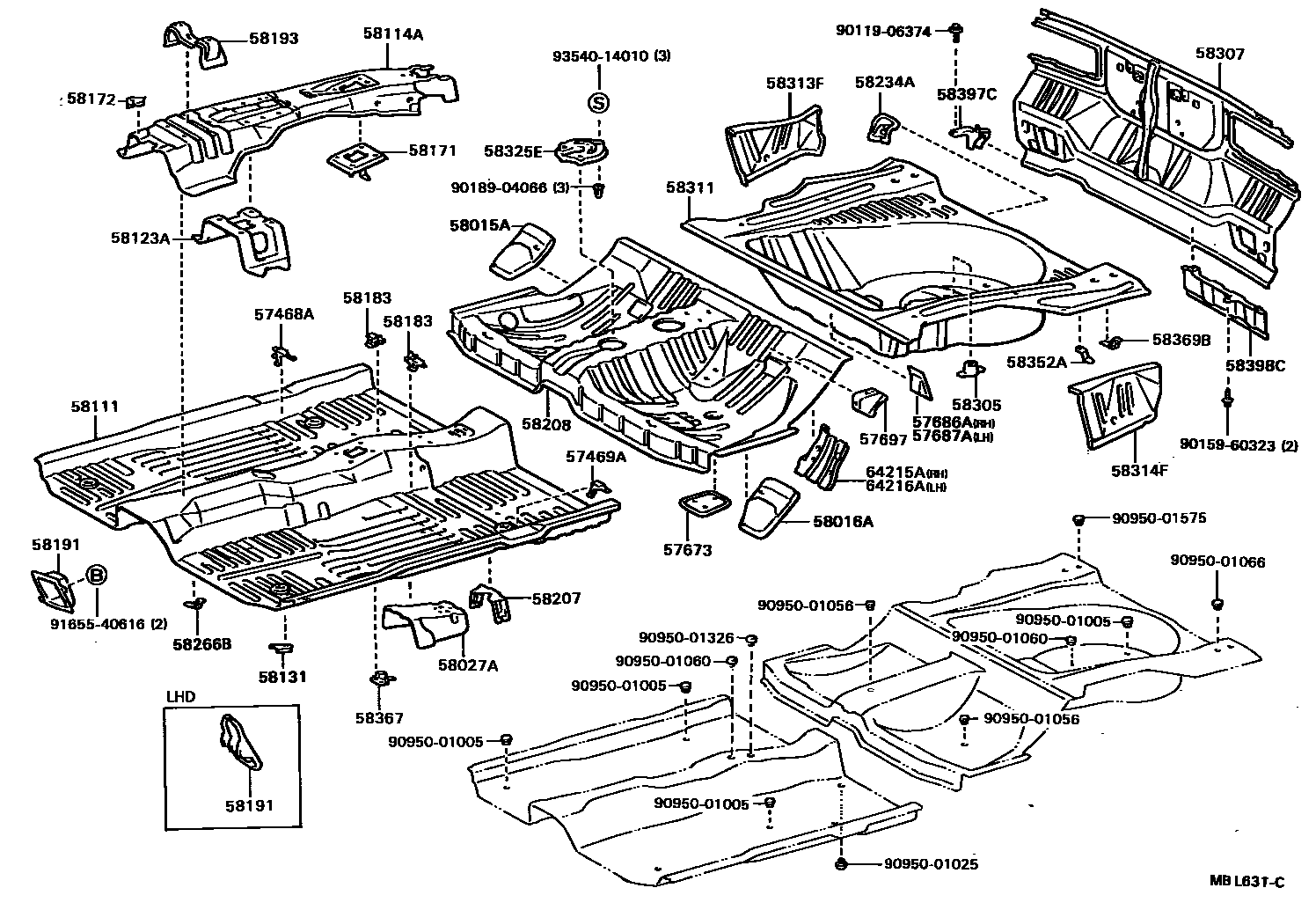

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58266BBRACKET, FUEL TUBE CLAMP
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
W(SIDE LIGHTING LAMP)
W(SIDE LIGHTING LAMP)
W(SIDE LIGHTING LAMP)
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58352ABRACKET, REAR FLOOR STAY
58367BRACKET, FUEL TUBE CLAMP
58369BBRACKET, FUEL TUBE, NO.3
58397CCOVER, BODY LOWER BACK, RH
58398CCOVER, BODY LOWER BACK, LH
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
9011906374
main90119-06374
9015960323
main90159-60323
9018904066
main90189-04066
9095001005
main90950-01005
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001066
main90950-01066
9095001326
main90950-01326
9095001575
main90950-01575
9165540616
main91655-40616
9354014010
main93540-14010
47 parts on this diagram · 3 diagrams in section
