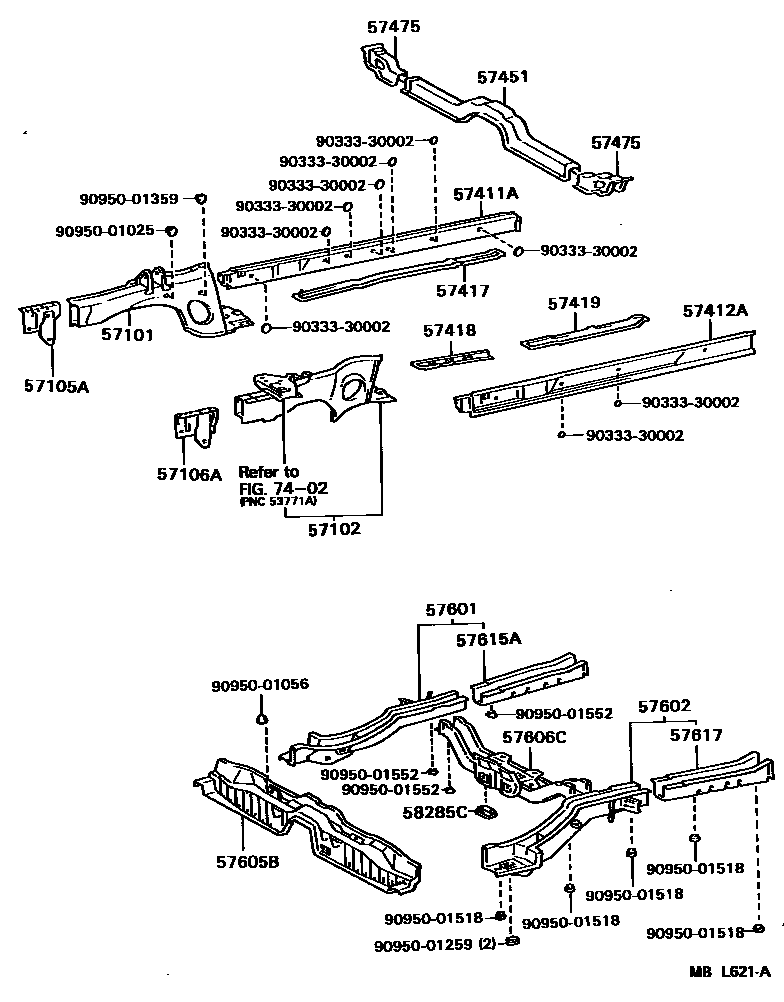

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20420iST162..CP,LB198708-198908

main57101-20450iAT160198708-198908

main57101-20560iST162..CVT198708-198908

main57101-20590iST165198710-198908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20440iAT160198708-198908

main57102-20640iST162198708-198710

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-20040iAT160,ST16#198708-198908

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-20040iAT160,ST16#198708-198908

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-20210iAT160,ST16#..CP,LB198708-198908

main57401-20230iST162..CVT198708-198908

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-20210iAT160,ST16#..CP,LB198708-198908

main57402-20230iST162..CVT198708-198908

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT160,ST16#198708-198908

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT160,ST16#198708-198908

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iAT160,ST16#198708-198908

57451MEMBER, FRONT FLOOR CROSS

main57451-20070iAT160,ST162198708-198908

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-20020iAT160,ST162198708-198908

RH

main57476-20020iAT160,ST162198708-198908

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20170iAT160,ST162198708-198908

main57601-20210iST165198710-198908

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20170iAT160,ST162198708-198908

main57602-20210iST165198710-198908

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20050iST165198710-198908

sub57605-20120

main57605-20060iAT160,ST162198708-198908

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20080iAT160,ST162198708-198908

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20904iAT160,ST162198708-198908

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20904iAT160,ST162198708-198908

58285CCOVER, REAR FLOOR HOLE

main58285-20020×2iAT160,ST162198708-198908

main58285-20030×2iST165198710-198908

7402

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001259

main90950-01259

9095001359

main90950-01359

9095001518

main90950-01518

9095001552

main90950-01552

26 parts on this diagram · 2 diagrams in section
