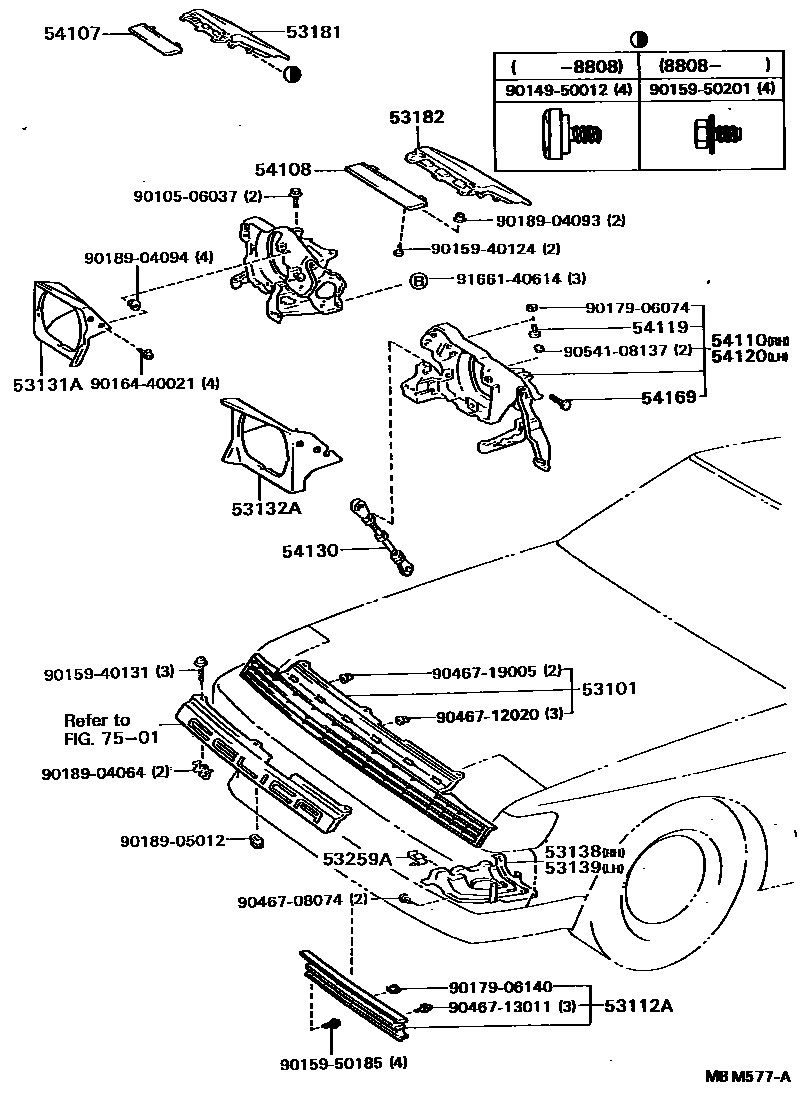

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-20240iAT160,ST16#198708-198908

main53101-20250iAT160,ST16#..CP,LB198708-198908

W(HEADLAMP CLEANER)

53112AGRILLE, RADIATOR, LOWER

main53102-20020iST165198710-198812

sub53102-20021

main53102-20021iST165198812-198908

53131ADOOR, HEADLAMP, RH

main53131-20250iAT160,ST16#198808-198908

main53131-20270iAT160,ST16#198708-198808

53132ADOOR, HEADLAMP, LH

main53132-20220iAT160,ST16#198808-198908

main53132-20240iAT160,ST16#198708-198808

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-20030iAT160,ST16#198708-198908

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-20030iAT160,ST16#198708-198908

53181COVER, HEADLAMP, RH

main53181-20010iAT160,ST16#198708-198908

53182COVER, HEADLAMP, LH

main53182-20010iAT160,ST16#198708-198908

53259ACLIP, RADIATOR SUPPORT TO FRAME SEAL

main53259-20020iAT160,ST16#198708-198908

54107GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH

main54107-20011iAT160,ST16#198708-198908

54108GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH

main54108-20011iAT160,ST16#198708-198908

54110BRACKET ASSY, RETRACTABLE HEADLAMP, RH

main54110-20011iAT160,ST162..CP,LB198708-198710

sub54110-20012

main54110-20012iAT160,ST16#..CP,LB198710-198908

main54110-20021iST162..CVT198708-198710

sub54110-20022

main54110-20022iST162..CVT198710-198908

54119STOP, RETRACTABLE HEADLAMP LINK

main54119-14010iAT160,ST16#198708-198908

54120BRACKET ASSY, RETRACTABLE HEADLAMP, LH

main54120-20011iAT160,ST16#..CP,LB198708-198908

main54120-20021iST162..CVT198708-198908

54130ROD ASSY, RETRACTABLE HEADLAMP

main54130-20010iAT160,ST16#198708-198908

54169STOP, RETRACTABLE HEADLAMP LINK DOWN

main54169-20010iAT160,ST16#198708-198908

7501

9010506037

main90105-06037

9014950012

main90149-50012

9015940124

main90159-40124

9015940131

main90159-40131

9015950185

main90159-50185

9015950201

main90159-50201

9016440021

main90164-40021

9017906074

main90179-06074

9017906140

main90179-06140

9018904064

main90189-04064

9018904093

main90189-04093

9018904094

main90189-04094

9018905012

main90189-05012

9046708074

main90467-08074

9046712020

main90467-12020

9046713011

main90467-13011

9046719005

main90467-19005

9054108137

main90541-08137

9166140614

main91661-40614

36 parts on this diagram · 1 diagram in section
