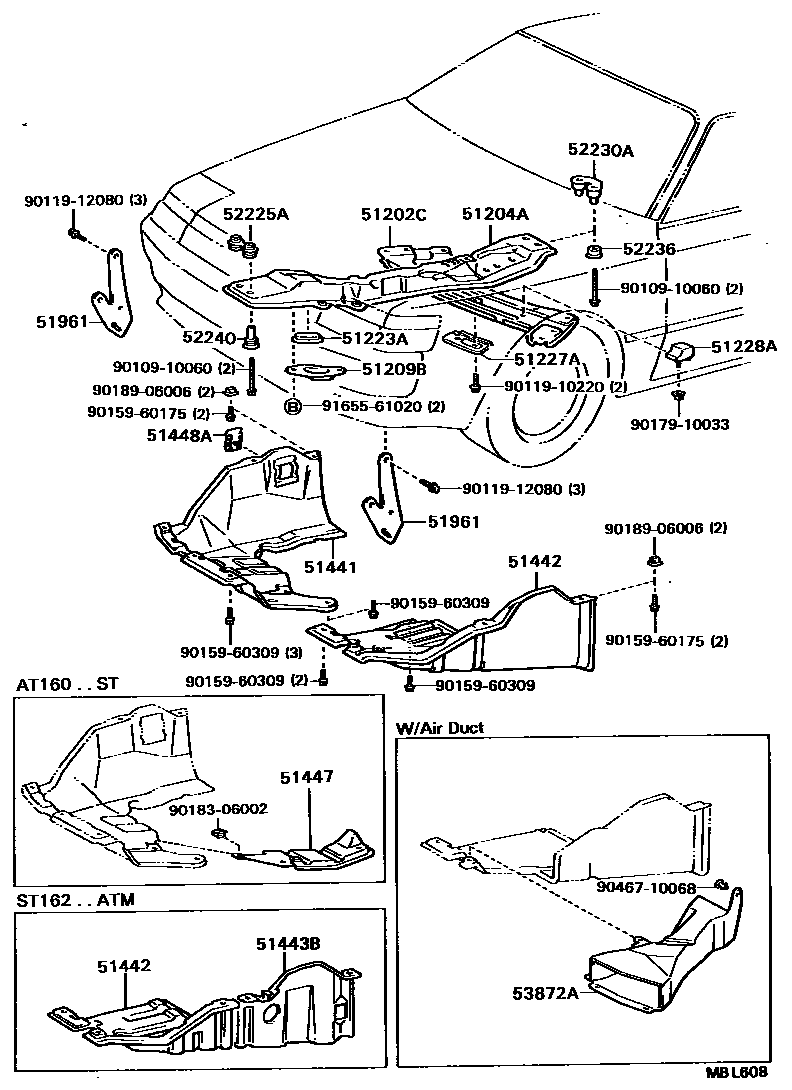

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-20010iAT160,ST162¥15,800198708-198908

main51202-20020iST165¥12,100198710-198908

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20030iAT160,ST162¥18,000198708-198908

main51204-20060iST165¥25,300198710-198808

sub51204-20090¥27,300

main51204-20090iST165¥27,300198808-198908

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iST165;ST162..4FC¥2,130198708-198908

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAT160,ST16#¥330198708-198908

sub51223-20030¥330

51227AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH

main51227-20010iAT160,ST162..TWC¥11,800198708-198908

main51227-20021iST165¥7,900198710-198908

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20010iAT160,ST162..TWC¥11,800198708-198908

51441COVER, ENGINE UNDER, NO.1

main51441-20120iAT160,ST162¥8,100198708-198908

main51441-20140iST165¥7,700198710-198908

51442COVER, ENGINE UNDER, NO.2

main51442-20040iAT160..CBR¥8,100198708-198908

main51442-20060iAT160,ST162..5F..TWC¥7,700198708-198908

main51442-20070iST162..4FC¥6,600198708-198908

main51442-20100iST165¥7,000198710-198908

51443BCOVER, ENGINE UNDER, NO.3

main51443-20030iST162..4FC¥7,000198708-198908

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAT160..CBR¥850198708-198908

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT160,ST16#¥650198708-198908

51961HOOK, NO.1

main51963-20070iAT160,ST16#¥1,510198708-198908

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20030iAT160,ST16#¥1,680198708-198908

sub52225-20050¥1,670

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20030iAT160,ST162¥2,160198708-198908

main52230-20040iST165¥2,490198710-198908

sub52230-20060¥2,050

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20030iAT160,ST16#¥670198708-198908

sub52236-20050¥660

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20030iAT160,ST16#¥1,020198708-198908

sub52240-20050¥2,050

53872ADUCT, AIR, LOWER

main53872-20010iAT160,ST162..TWC¥8,000198708-198908

main53872-20030iST165¥9,500198710-198908

9010910060

main90109-10060¥270

9011910220

main90119-10220¥140

9011912080

main90119-12080¥270

9015960175

main90159-60175¥120

9015960309

main90159-60309¥130

9017910033

main90179-10033¥130

9018306002

main90183-06002¥190

9018906006

main90189-06006¥100

9046710068

main90467-10068¥180

9165561020

main91655-61020¥190

27 parts on this diagram · 3 diagrams in section
