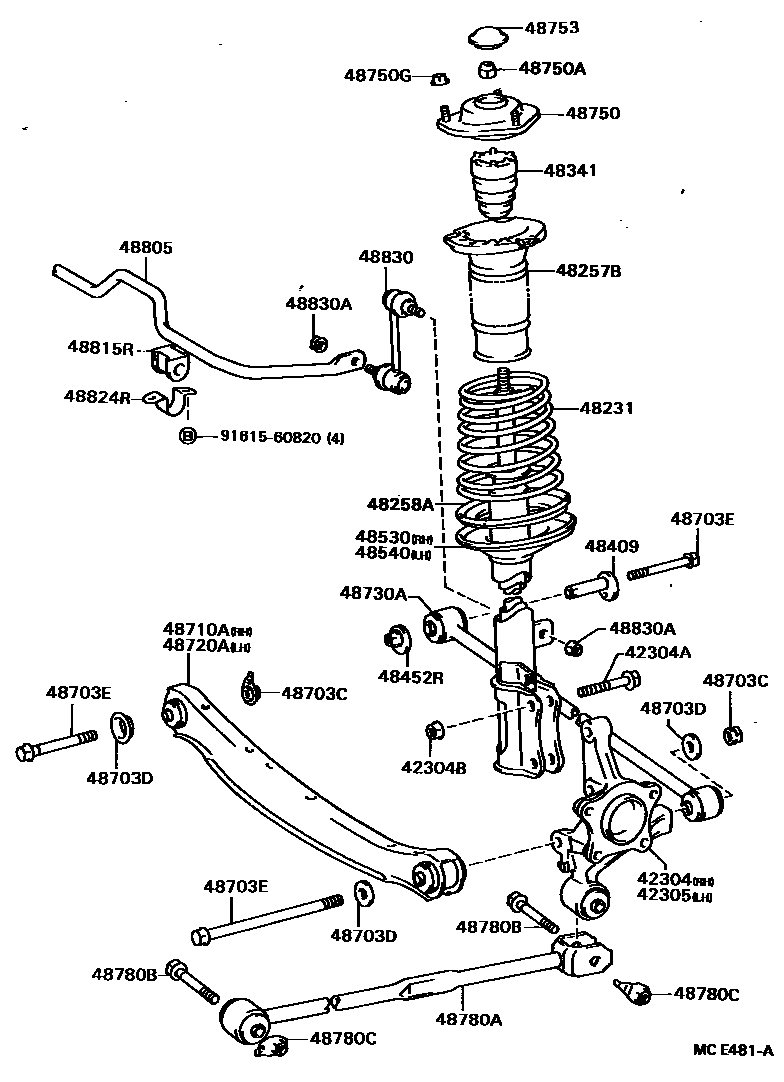

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20040iST165198710-198908

sub42304-20290

main42304-32020iAT160198708-198908

main42304-32030iST162198708-198908

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-15001iAT160,ST16#198708-198908

42304BNUT (FOR REAR AXLE CARRIER)

main90179-15001iAT160,ST16#198708-198908

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20040iST165198710-198908

sub42305-20290

main42305-32020iAT160198708-198908

main42305-32030iST162198708-198908

48231SPRING, COIL, REAR

main48231-20190iAT160..CP..CBR198708-198805

sub48231-20200

main48231-20200iAT160..CP..CBR198805-198908

sub48231-2B460

main48231-20210iST162..CP;AT160..LB..CBR198708-198908

main48231-20440iST162..CVT,LB198708-198908

sub48231-2B201

main48231-20490iAT160..CP..TWC198708-198908

sub48231-2B640

main48231-20580iAT160..LB..TWC198708-198908

main48231-20820iST165198710-198908

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-32030iAT160,ST16#198708-198908

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010iAT160,ST16#198708-198908

48341BUMPER, REAR SPRING

main48341-20090iAT160,ST162198708-198908

main48341-20100iST165198710-198908

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-20020iAT160,ST162198708-198908

main48409-20030iST165198710-198908

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-20010iST165198710-198908

main48452-32010iAT160,ST162198708-198908

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20131iAT160,ST162198708-198908

main48530-20180iST165198710-198908

sub48530-20171

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20131iAT160,ST162198708-198908

main48540-20180iST165198710-198908

sub48540-20171

48703CNUT(FOR REAR SUSPENSION ARM)

main90170-14006iST165198710-198908

main90179-14019iAT160,ST162198708-198908

48703DWASHER(FOR REAR SUSPENSION ARM)

main90201-14017iAT160,ST162198708-198908

CARRIER SIDE

main90209-13005iST165198710-198908

main90209-13008iAT160,ST162198708-198908

BODY SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-10132iAT160,ST162198708-198908

*10-1.25PX80-20

main90105-12147iAT160,ST162198708-198908

*12-1.25PX74.5-25

main90105-14036iAT160,ST162198708-198908

*14-1.5PX248-30

main90119-12083iST165198710-198908

*12-1.25PX80-25

main90119-12126iST165198710-198908

*12-1.25PX94-35

main90119-14024iST165198710-198908

*14-1.50PX73-67

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20060iAT160,ST162198708-198908

sub48710-20220

main48710-20070iST165..LHD198710-198908

main48710-20090iST165..RHD198710-198908

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20070iST165..LHD198710-198908

main48710-20090iST165..RHD198710-198908

main48720-20050iAT160,ST162198708-198908

sub48720-20090

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20010iAT160,ST162198708-198908

main48730-20020iST165..LHD198710-198908

main48730-20050iST165..RHD198710-198908

48750SUPPORT ASSY, REAR SUSPENSION

main48750-20010iAT160,ST162198708-198908

main48750-20040iST165198710-198908

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main94182-11400iAT160,ST16#198708-198908

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08111iAT160,ST16#198708-198908

48753COVER, REAR SUSPENSION SUPPORT

main48753-16010iAT160,ST16#198708-198908

48780AROD ASSY, STRUT, REAR

main48780-20020iAT160,ST162198708-198908

main48780-20030iST165198710-198908

48780BBOLT(FOR STRUT ROD)

main90119-12131iAT160,ST16#198708-198908

48780CNUT(FOR STRUT ROD)

main90179-12062iAT160,ST16#198708-198908

CARRIER SIDE

main90179-12063iAT160,ST162198708-198908

BODY SIDE

48805BAR SUB-ASSY, REAR STABILIZER

main48812-20150iAT160198708-198908

main48812-20170iST162198708-198908

main48812-20210iST165198710-198908

48815RBUSH, STABILIZER(FOR REAR)

main48818-20080iAT160198708-198908

main48818-20100iST162198708-198908

sub48818-12160

main48818-20120iST165198710-198908

sub48818-12180

48824RBRACKET, STABILIZER(FOR REAR)

main48832-20020iAT160,ST162198708-198908

main48832-20030iST165198710-198908

main48832-20040iST162198708-198908

W(ANTI-LOCK BRAKE SYSTEM),RH

main48832-20050iST162198708-198908

W(ANTI-LOCK BRAKE SYSTEM),LH

48830LINK ASSY, REAR STABILIZER

main48830-20010iAT160,ST16#198708-198908

main48830-32010iAT160,ST162198904-198908

GREEN PEINTED

sub48830-20010

main48830-32020iAT160,ST162198708-198904

GREEN PEINTED

sub48830-32010

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iAT160,ST16#198708-198908

9161560820

main91615-60820

31 parts on this diagram · 2 diagrams in section
