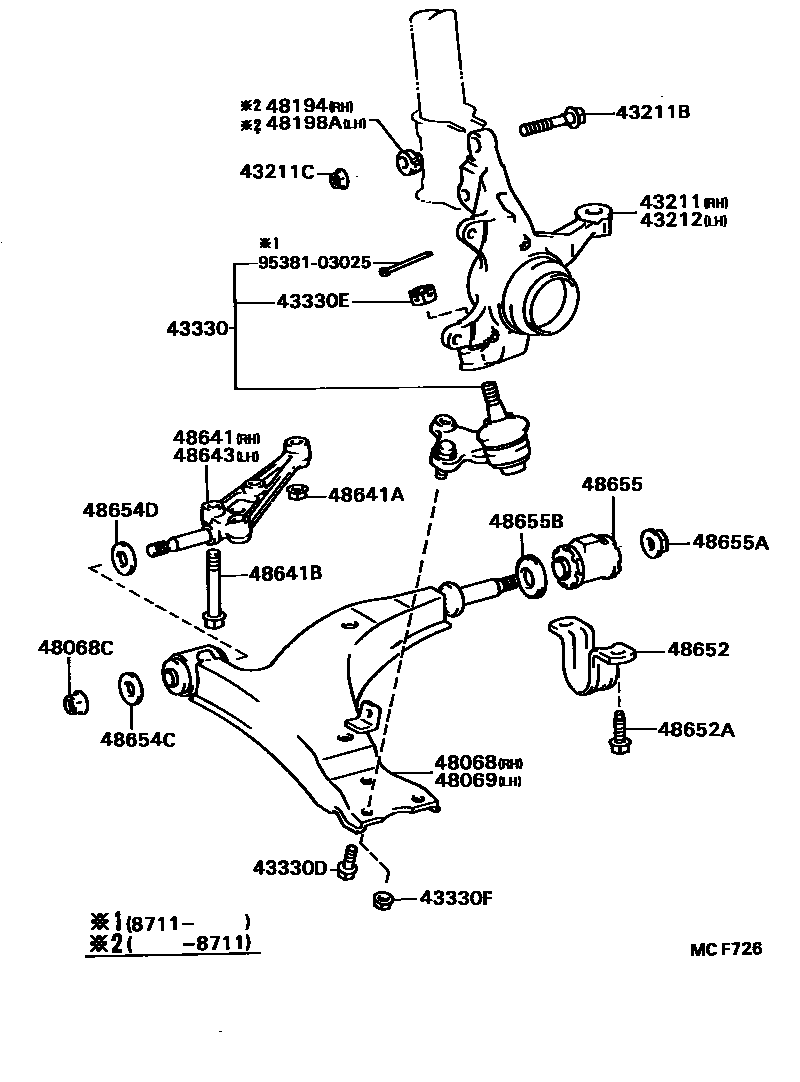

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-20100iAT160,ST16#198708-198711

sub43211-20101

main43211-20101iAT160,ST16#198711-198908

main43211-20110iST16#198708-198711

W(ANTI-LOCK BRAKE SYSTEM)

sub43211-20111

main43211-20111iST16#198711-198908

W(ANTI-LOCK BRAKE SYSTEM)

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001iAT160,ST16#198708-198908

43211CNUT (FOR ABSORBER SETTING)

main90179-15001iAT160,ST16#198708-198908

43212KNUCKLE, STEERING, LH

main43212-20060iAT160,ST16#198708-198711

sub43212-20061

main43212-20061iAT160,ST16#198711-198908

main43212-20070iST16#198708-198711

W(ANTI-LOCK BRAKE SYSTEM)

sub43212-20071

main43212-20071iST16#198711-198908

W(ANTI-LOCK BRAKE SYSTEM)

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29145iAT160,ST16#198708-198711

sub43330-29146

main43330-29146iAT160,ST16#198711-198908

sub43330-29185

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12122iAT160,ST16#198708-198908

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14003iAT160,ST16#198711-198908

main90179-14015iAT160,ST16#198708-198711

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-12052iAT160,ST16#198708-198908

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20180iAT160,ST16#198708-198908

sub48068-20160

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90179-16004iAT160,ST16#198708-198908

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20180iAT160,ST16#198708-198908

sub48069-20160

48194CAM, CAMBER ADJUST, RH

main48194-32020iAT160,ST16#198708-198711

48198ACAM, CAMBER ADJUST, LH

main48198-32020iAT160,ST16#198708-198711

48641SHAFT, LOWER ARM, RH

main48641-20060iAT160,ST162198708-198908

main48641-20070iST165198710-198908

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14007iAT160,ST16#198708-198908

48641BBOLT(FOR SUSPENSION LOWER ARM SHAFT)

main90101-14028iAT160,ST16#198708-198908

*14-1.5PX54-27

48643SHAFT, LOWER ARM, LH

main48643-20030iAT160,ST162198708-198908

main48643-20040iST165198710-198908

48652BRACKET, FRONT LOWER ARM

main48652-20040iAT160,ST16#198708-198908

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iAT160,ST16#198708-198908

48654CRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.1)

main90948-02089iAT160,ST16#198708-198908

48654DRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.1)

main90948-02088iAT160,ST16#198708-198908

48655BUSH, LOWER ARM, NO.2

main48655-20050iAT160,ST16#198708-198908

48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)

main90179-14006iAT160,ST16#198708-198908

48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)

main90948-02090iAT160,ST16#198708-198908

9538103025

main95381-03025

25 parts on this diagram · 1 diagram in section
