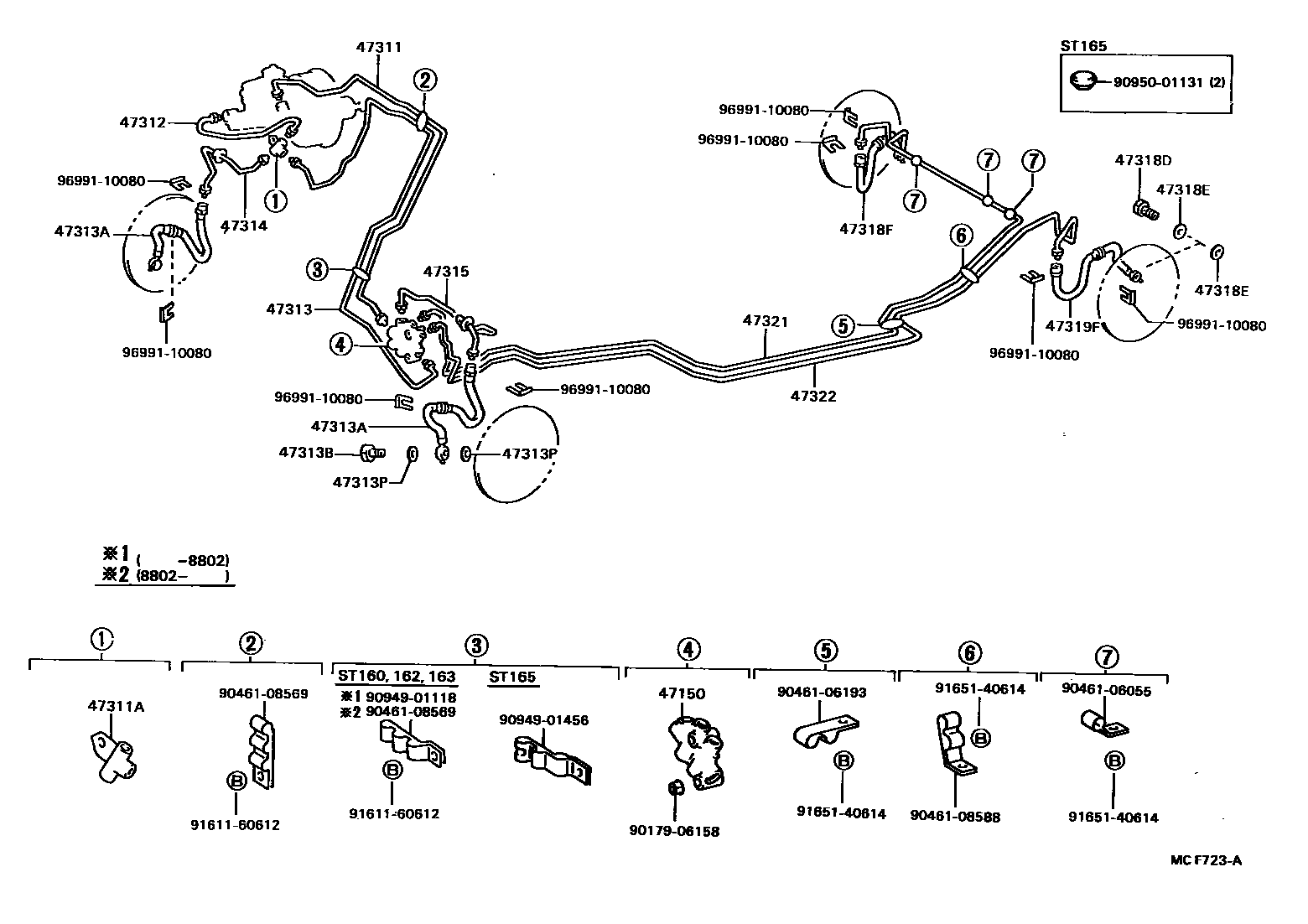

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKE SYSTEM) 0005 1W(ANTI-LOCK BRAKE SYSTEM) 0006 1W(ANTI-LOCK BRAKE SYSTEM) 0007 1W(ANTI-LOCK BRAKE SYSTEM) 0008 1W(ANTI-LOCK BRAKE SYSTEM)

47150VALVE ASSY, PROPORTIONING

main47150-12060iST162..(CP,LB)..FRG¥7,100198712-198801

SWEDEN SPEC

sub47150-12270¥13,500

main47150-12060iAT160¥7,100198708-198908

sub47150-12270¥13,500

main47150-20130iST162¥14,100198708-198801

sub47150-12240¥16,800

main47150-20200iST162¥16,900198708-198801

W(ANTI-LOCK BRAKE SYSTEM)

sub47150-20201

main47150-20201iST162198801-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47150-32060iST165¥16,700198710-198908

47311TUBE, FRONT BRAKE, NO.1

main47311-20380iST162..RHD¥1,090198708-198802

sub47311-20381¥1,120

sub90461-08569¥310

main47311-20381iST162..RHD¥1,120198802-198908

main47311-20420iAT160,ST162..LHD¥800198708-198908

main47311-20430iST165..LHD¥800198710-198805

main47311-20431iST165..LHD¥750198805-198908

main47311-20470iST165..RHD¥1,120198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20480iST165..LHD¥750198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20490iST162..RHD¥1,340198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20510iST162..LHD¥1,090198708-198803

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20511iST162..LHD¥2,030198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47311-20630iST165..RHD¥1,340198710-198809

sub47311-20631¥1,340

main47311-20631iST165..RHD¥1,340198809-198908

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10159iAT160,ST162..LHD¥1,000198708-198908

main90413-10182iST165..LHD¥990198710-198908

main90413-10193iST162..RHD¥990198708-198908

main90413-10208iST165..RHD¥1,180198710-198908

47312TUBE, FRONT BRAKE, NO.2

main47312-20130iST162..RHD¥600198708-198908

main47312-20140iAT160,ST162..LHD¥600198708-198908

main47312-20150iST165..LHD¥600198710-198908

main47312-20170iST165..RHD¥590198710-198908

47313TUBE, FRONT BRAKE, NO.3

main47313-20240iST162..RHD¥1,340198708-198802

sub47313-20241¥1,340

sub90461-08569¥310

main47313-20241iST162..RHD¥1,340198802-198908

main47313-20250iAT160,ST162..LHD¥600198708-198908

main47313-20260iST165..LHD¥600198710-198908

main47313-20280iST165..RHD¥1,470198710-198809

sub47313-20281¥1,470

main47313-20281iST165..RHD¥1,470198809-198908

main47313-20290iST165..RHD¥1,120198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47313-20300iST165..LHD¥990198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47313-20310iST162..RHD¥760198708-198803

W(ANTI-LOCK BRAKE SYSTEM)

main47313-20311iST162..RHD¥750198803-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47313-20330iST162..LHD¥2,730198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02550iAT160,ST16#¥2,660198708-198908

sub90947-02940

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAT160,ST16#¥200198708-198908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAT160,ST16#¥100198708-198908

47314TUBE, FRONT BRAKE, NO.4

main47314-20190iST162..RHD¥410198708-198908

main47314-20200iAT160,ST16#..LHD¥1,340198708-198908

main47314-20210iST165..RHD¥600198710-198908

main47314-20220iST165..RHD¥1,340198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47314-20230iST165..LHD¥1,340198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47314-20240iST162..RHD¥1,340198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47314-20250iST162..LHD¥1,340198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47315TUBE, FRONT BRAKE, NO.5

main47315-20320iST16#..RHD¥790198708-198908

main47315-20330iAT160,ST162..LHD¥410198708-198908

main47315-20340iST162..LHD¥410198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47315-20360iST165..RHD¥780198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47315-20370iST165..LHD¥990198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47315-20380iST162..RHD¥1,090198708-198805

W(ANTI-LOCK BRAKE SYSTEM)

main47315-20460iST162..RHD¥990198805-198908

W(ANTI-LOCK BRAKE SYSTEM)

47318TUBE, FRONT BRAKE, NO.8

main47318-20150iST162..RHD¥2,390198708-198805

main47318-20160iST162..LHD¥1,820198708-198908

main47318-20220iST162..RHD¥2,170198805-198908

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iST16#¥200198708-198908

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iST16#¥100198708-198908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02548iAT160¥1,960198708-198908

sub90947-02472¥1,690

main90947-02549iST165¥2,470198710-198908

sub90947-02939

main90947-02551iST162¥2,860198708-198908

sub90947-02941

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02548iAT160¥1,960198708-198908

sub90947-02472¥1,690

main90947-02549iST165¥2,470198710-198908

sub90947-02939

main90947-02551iST162¥2,860198708-198908

sub90947-02941

47321TUBE, REAR BRAKE, NO.1

main47321-20120iST162..RHD¥4,020198708-198908

main47321-20130iAT160,ST162..LHD¥4,180198708-198908

main47321-20160iST165..RHD¥3,110198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47321-20170iST165..LHD¥3,620198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47322-20270iST165..RHD¥4,530198710-198908

main47322-20300iST165..LHD¥4,430198710-198908

47322TUBE, REAR BRAKE, NO.2

main47321-20140iST165..RHD¥3,820198710-198908

main47321-20180iST165..LHD¥3,780198710-198908

main47322-20240iST162..RHD¥2,960198708-198908

main47322-20250iAT160,ST162..LHD¥3,250198708-198908

main47322-20280iST165..RHD¥3,110198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47322-20290iST165..LHD¥3,620198710-198908

W(ANTI-LOCK BRAKE SYSTEM)

9017906158

main90179-06158¥70

9046106055

main90461-06055¥220

9046106193

main90461-06193¥330

9046108569

main90461-08569¥310

9046108588

main90461-08588¥410

9094901118

main90949-01118¥520

9094901456

main90949-01456¥270

9095001131

main90950-01131¥520

9161160612

main91611-60612¥130

9165140614

main91651-40614¥160

9699110080

main96991-10080¥100

28 parts on this diagram · 8 diagrams in section
