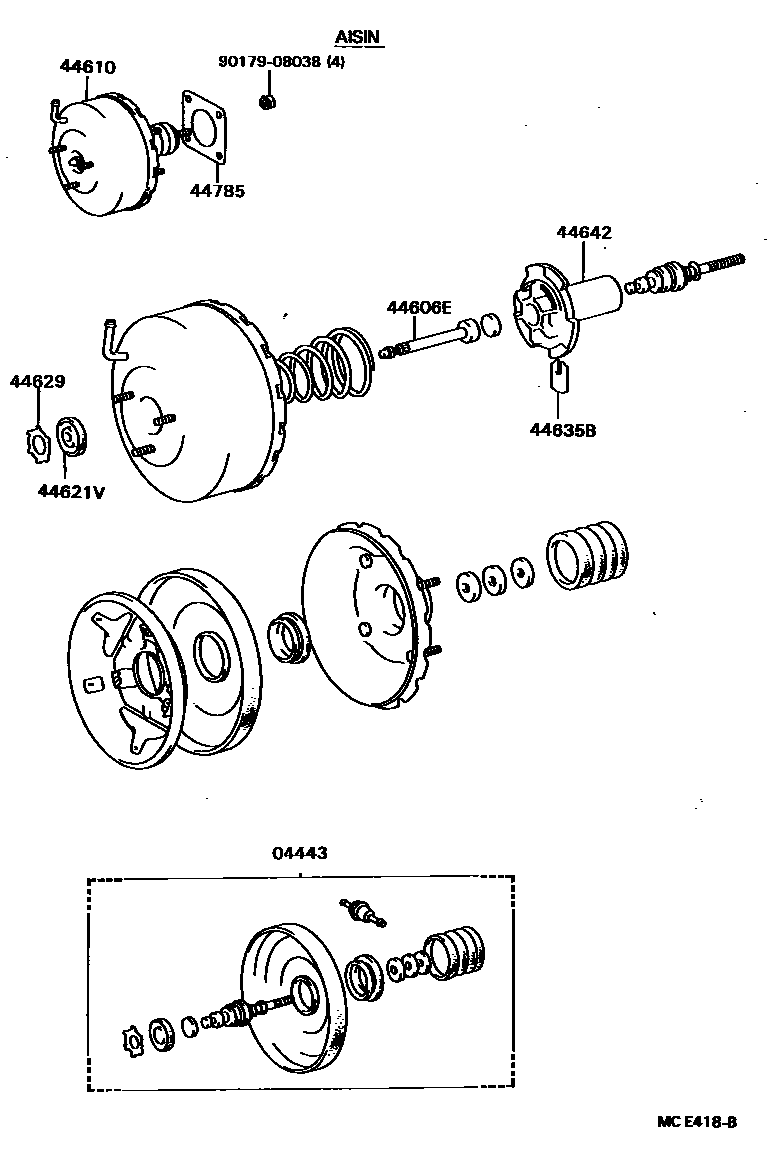

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1W(ANTI-LOCK BRAKE SYSTEM) 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-20360iAT160,ST162..LHD198708-198908

main04443-20400iAT160,ST162198708-198908

main04443-20500iST165..RHD198710-198908

main04443-20590iST162..RHD198708-198908

main04443-20630iST162..LHD198708-198805

W(ANTI-LOCK BRAKE SYSTEM)

main04443-20630iST165..LHD198708-198908

main04443-20640iST162..(CVT,LB)..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main04443-20650iST165..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iAT160,ST162198708-198908

main44606-20800iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44610BOOSTER ASSY, BRAKE

main44610-20710iAT160,ST162..LHD198708-198908

main44610-20770iST162..RHD198708-198908

main44610-20860iST165..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main44610-2B120iST165..LHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44621VSEAL, BOOSTER BODY

main44621-14030iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main44621-28120iAT160,ST162198708-198908

44629RING, CIRCULAR INTERNAL

main44628-28120iAT160,ST162198708-198908

main44628-60010iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

44635BKEY, VALVE STOPPER

main44635-20800iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main44635-28120iAT160,ST162198708-198908

44642PISTON, BRAKE BOOSTER

main44642-20800iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main44642-32010iST162..RHD198708-198908

main44642-32030iAT160,ST162..LHD198708-198908

44785GASKET, BRAKE BOOSTER

main44785-32010iAT160,ST16#198708-198908

9017908038

main90179-08038

9 parts on this diagram · 5 diagrams in section
