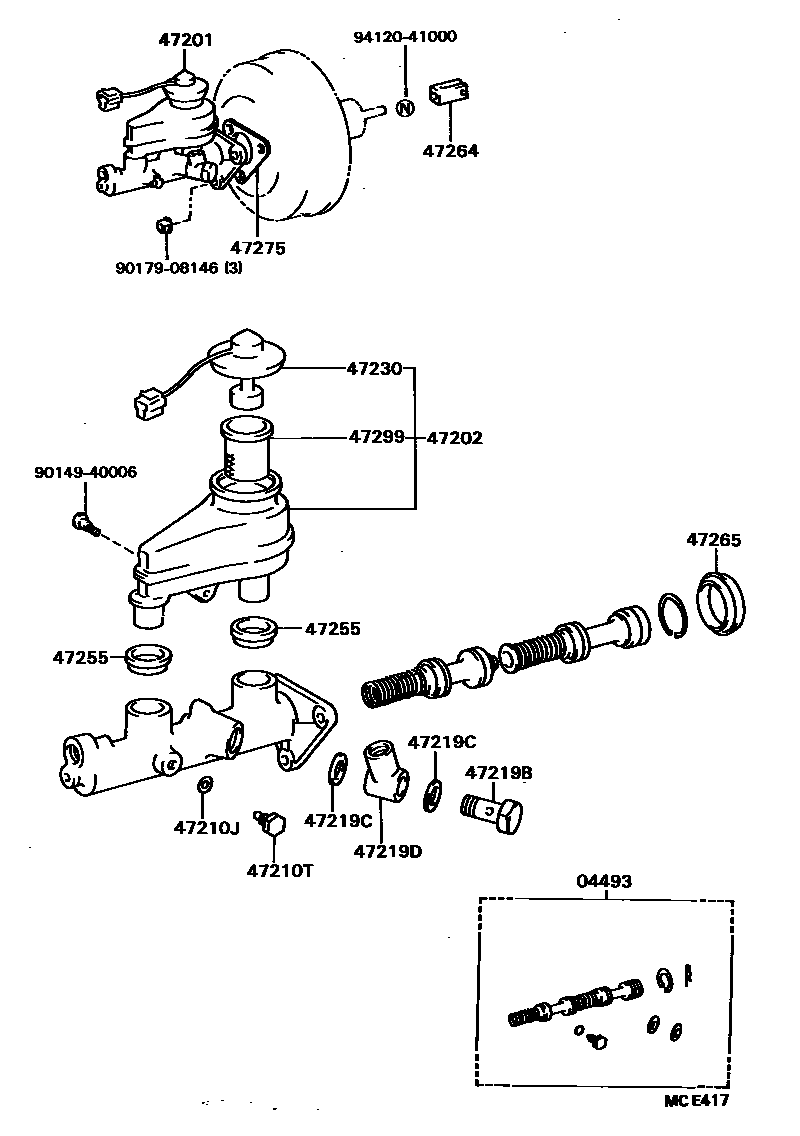

BRAKE MASTER CYLINDER

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKE SYSTEM)

04493CYLINDER KIT, BRAKE MASTER

main04493-20130iAT160,ST162198708-198908

main04493-20160iST165198710-198908

sub04493-33010

main04493-20170iST16#198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20380iST162..RHD198708-198908

main47201-20390iAT160,ST162..LHD198708-198908

main47201-20470iST165..LHD198710-198908

main47201-20480iST16#..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47201-20500iST16#..LHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47201-20510iST165..RHD198710-198908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20270iST162..RHD198708-198908

main47202-20280iAT160,ST162..LHD198708-198908

main47202-20320iST165..RHD198710-198908

main47202-20330iST16#..LHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47202-20330iST165..LHD198710-198908

main47202-20350iST16#..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT160,ST16#198708-198908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iST16#198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main90109-06077iAT160,ST16#198708-198908

47219BBOLT, UNION(FOR FLUID OUTLET REAR SIDE)

main90401-10023iST16#..RHD198708-198908

47219CGASKET(FOR FLUID OUTLET UNION BOLT REAR SIDE)

main90430-10074iST16#..RHD198708-198908

47219DUNION(FOR FLUID OUTLET REAR SIDE)

main90405-10073iST16#..RHD198708-198908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iAT160,ST16#198708-198908

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAT160,ST162198708-198908

main47255-16010iST165..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47255-16010iST165..LHD198710-198908

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAT160,ST162198708-198908

main47264-20040iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

47265BOOT, MASTER CYLINDER

main47265-20050iAT160,ST16#198708-198908

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT160,ST16#198708-198908

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iST165..RHD;AT160,ST162198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main47299-32010iST165..LHD198710-198908

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

17 parts on this diagram · 4 diagrams in section
