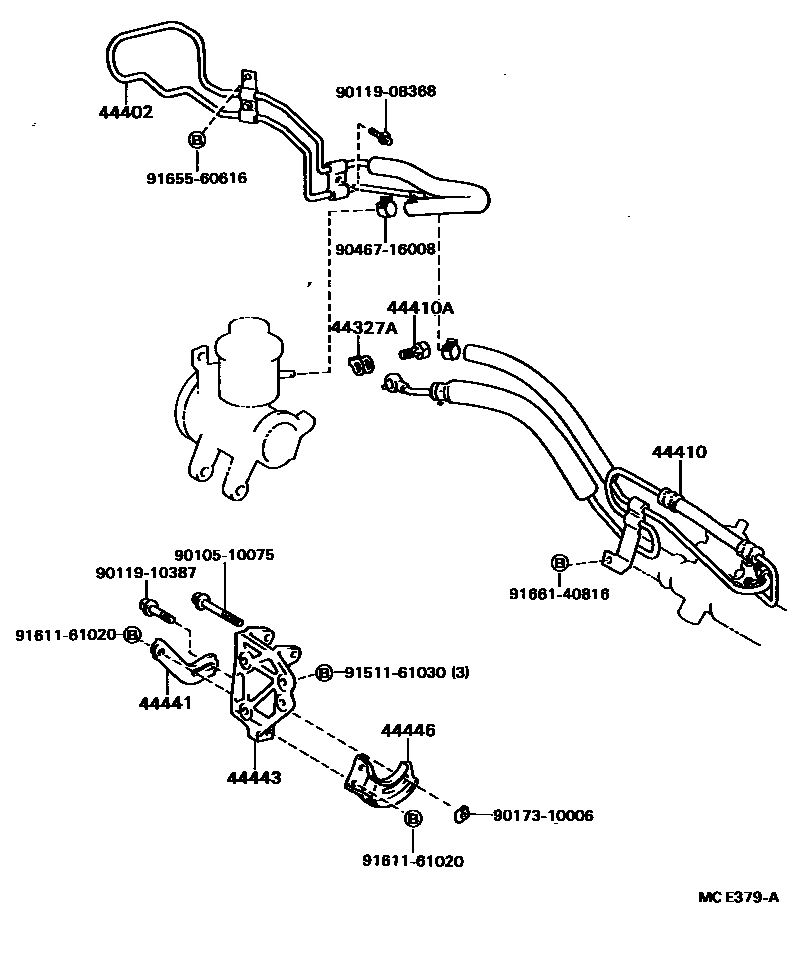

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST16#198708-198908

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20150iAT160..CBR198708-198808

main44402-20170iST162..RHD198708-198908

main44402-20180iST162..LHD198708-198908

main44402-20300iST165..LHD198710-198908

main44402-20310iST165..RHD198710-198908

44410TUBE ASSY, PRESSURE FEED

main44410-20220iAT160..CBR198708-198808

main44410-20320iST162..RHD198708-198908

sub44410-20321

main44410-20340iST162..RHD198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

sub44410-20341

main44410-20360iST165..RHD198710-198908

sub44410-20361

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT160..CBR198708-198808

44441BRACKET, PUMP, FRONT

main44441-32010iST16#198708-198908

44443BRACKET, PUMP

main44443-12050iAT160..CBR198708-198808

main44443-12060iAT160..TWC198708-198908

main44443-20050iST16#198708-198908

44446STRUT, ADJUSTING

main44446-12030iAT160..CBR198708-198808

9010510075

main90105-10075

9011908368

main90119-08368

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9151161030

main91511-61030

9161161020

main91611-61020

9165560616

main91655-60616

9166140816

main91661-40816

16 parts on this diagram · 6 diagrams in section
