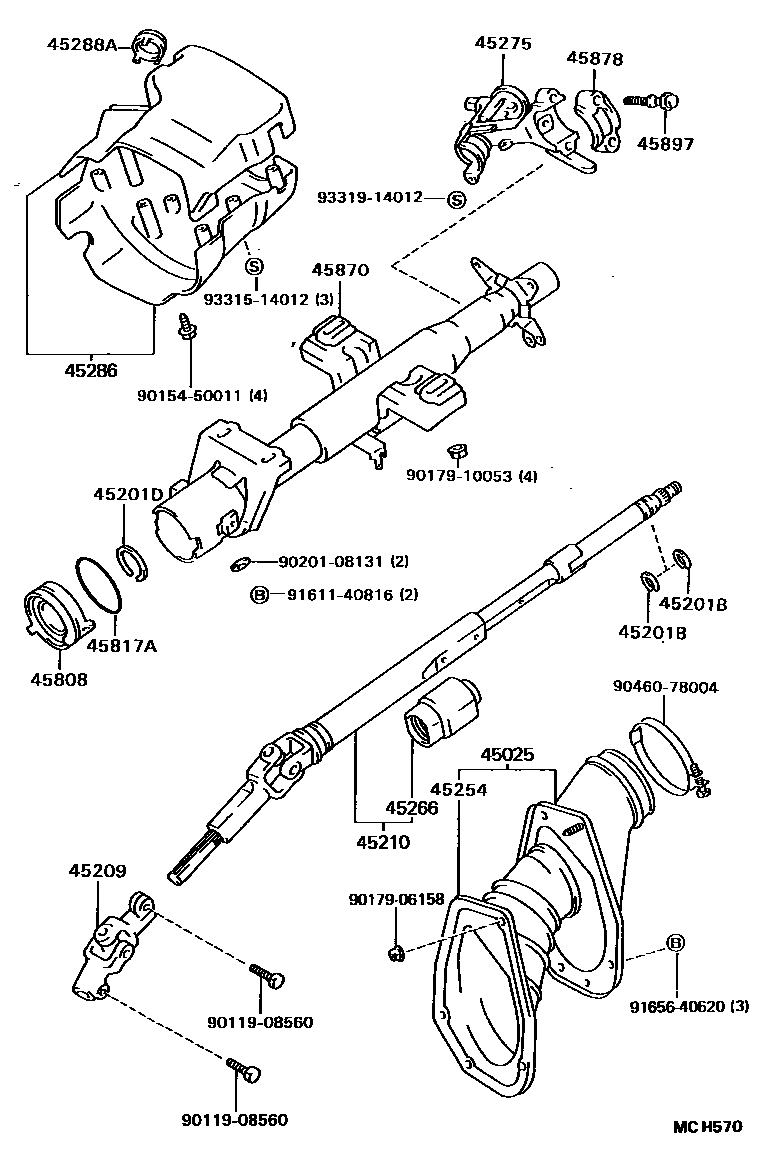

STEERING COLUMN & SHAFT
45025COVER, STEERING INTERMEDIATE SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,W(TILT STEERING)
T=1.20
T=1.35-1.45
45201DRING(FOR STEERING MAIN SHAFT)
45210SHAFT ASSY, STEERING MAIN
sub45210-14151
W(TILT & TELESOPIC STEERING)
W(TILT STEERING)
W(POWER STEERING)
45254SHIELD, STEERING COLUMN HOLE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
W(POWER STEERING)
45286COVER, STEERING COLUMN
W(TILT & TELESOPIC STEERING),DEEP BLUE,TRIM8#
sub45287-20906
W(TILT & TELESOPIC STEERING),DARK BEIGE,TRIM4#
sub45287-20906
45288ASPACER, COLUMN COVER
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
45817STOPPER, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
W(TILT STEERING)
9011908560
main90119-08560
9015450011
main90154-50011
9017906158
main90179-06158
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9165640620
main91656-40620
9331514012
main93315-14012
9331914012
main93319-14012
26 parts on this diagram · 3 diagrams in section
