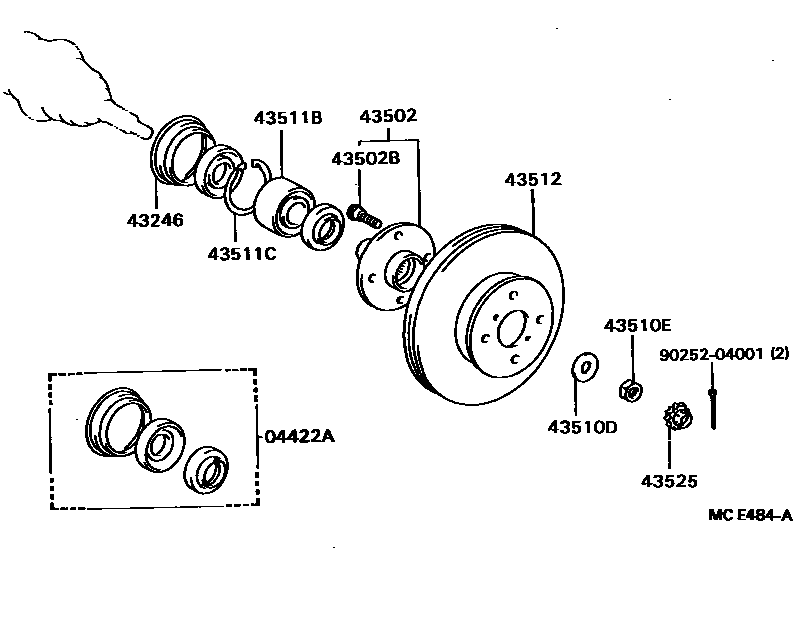

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAT160,ST16#198708

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-20010iAT160,ST16#198708-198908

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iAT160198708-198802

sub43502-12100

sub43502-20110

main43502-20040iST16#198708-198804

sub43502-32040

main43502-20080iAT160198802-198908

sub43502-20110

main43502-32040iST16#198804-198908

sub43502-32050

main43502-32050iST16#198908-198908

main43503-32010iST16#198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

sub43503-32020

main43503-32020iST16#198908-198908

W(ANTI-LOCK BRAKE SYSTEM)

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAT160198708-198908

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iAT160,ST16#198708-198908

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAT160,ST162198708-198908

main90170-19002iST165198710-198908

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAT160,ST16#198708-198908

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAT160,ST16#198708-198908

OD=79

main90521-79003iST165..LHD;AT160,ST162198708-198908

T=2.50-2.57

main90521-79004iST165..LHD;AT160,ST162198708-198908

T=2.57-2.62

main90521-79005iST165..LHD;AT160,ST162198708-198908

T=2.62-2.67

main90521-79006iST165..LHD;AT160,ST162198708-198908

T=2.67-2.72

43512DISC, FRONT

main43512-20110iAT160198708-198908

main43512-20270iST162198708-198908

sub43512-20120

main43512-20280iST165198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

sub43512-20190

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAT160,ST16#198708-198908

9025204001

main90252-04001

11 parts on this diagram · 1 diagram in section
