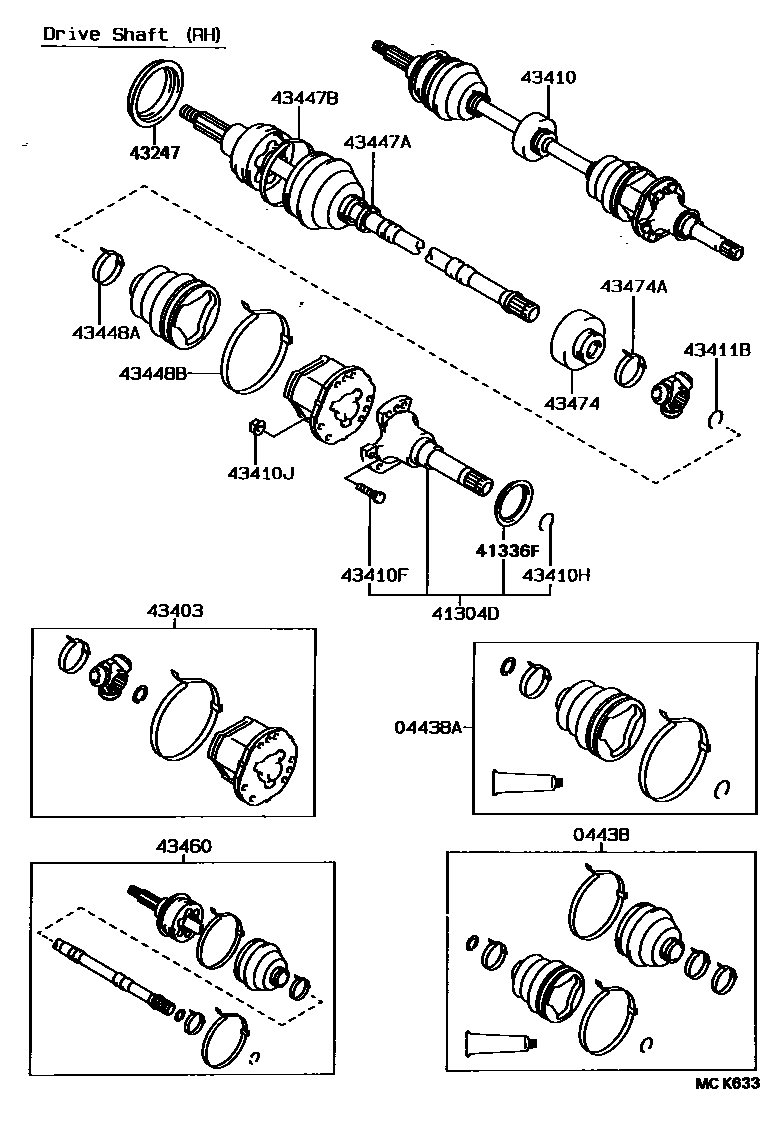

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
sub04438-12170
sub04438-12190
sub04438-12380
sub04438-32050
sub04438-20231
41304DSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
LH
RH
LH
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
sub43247-33010
43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)
43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
43410JNUT (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43460-29096
43474DAMPER, DRIVE SHAFT
43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)
18 parts on this diagram · 8 diagrams in section
