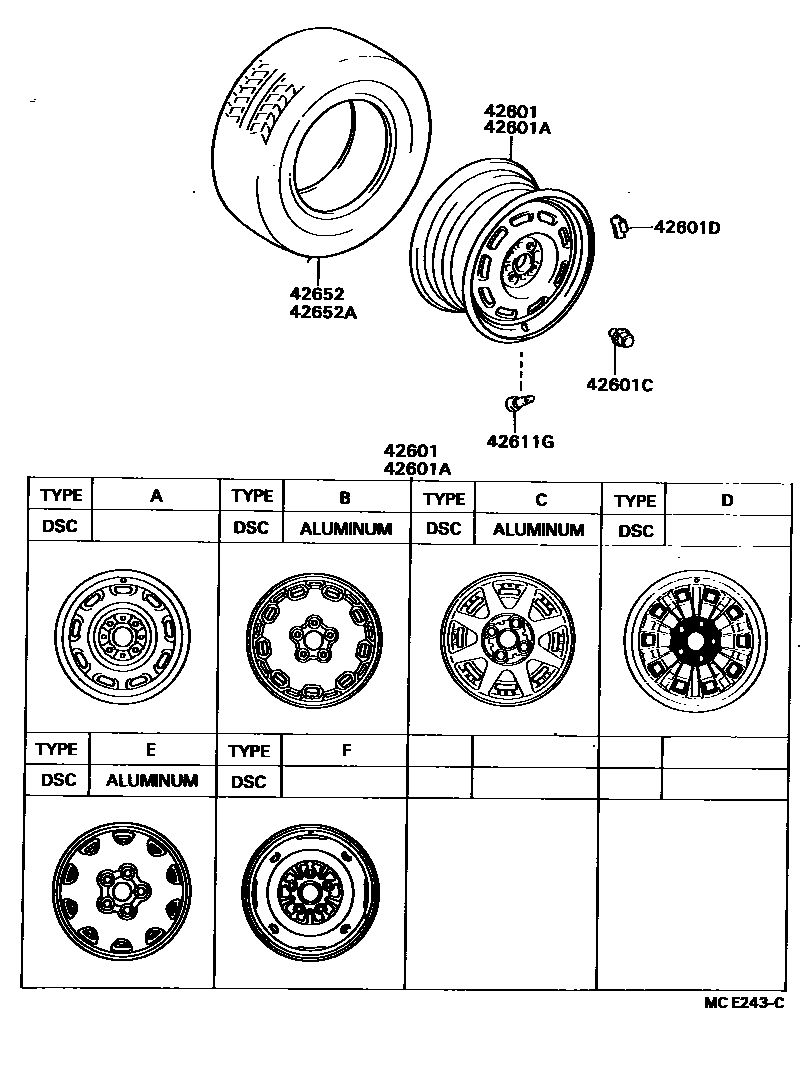

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X6JJ,6-JJX14,TYPE D SILVER,SILVER,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
sub42611-20360
13X5J,5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
sub42611-20410
13X5.5J,5.5-JX13,TYPE A SILVER,SILVER M,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
sub42611-20430
14X6JJ,6-JJX14,TYPE B,ALUMINUM WHEEL
14X6JJ,6-JJX14,TYPE E
13X5.5JJ,5.5-JJX13,TYPE C
42601AWHEEL, DISC (FOR SPARE)
14X6JJ,5-JX13,TYPE D,SILVER,SILVER,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3
sub42611-20360
13X5J,5.5-JX13,TYPE A,SILVER,SILVER M,040 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7,8D8 ,8E3 ,920
sub42611-20410
14X6JJ,6-JJX14,TYPE B,ALUMINUM WHEEL,040 ,168 ,20C ,202 ,21C ,3E5 ,3H4 ,4H5 ,4H6 ,8D7 ,8D8 ,8E3 ,920
14X6JJ,6-JJX14,TYPE E
15X4T,4T-15,TYPE F
13X5.5JJ,5.5-JJX13,TYPE C
42601CNUT, HUB (FOR AXLE)
W(HALF CAP)
W(ALUMINUM WHEEL)
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G
15G
20G
25G
30G
35G
40G
45G
50G
55G
60G
65G
70G
75G
80G
5G
5G
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
165SR13
185/70R13 85H
165SR13
195/60VR14
205/60VR14
185/70R13 85H
42652ATIRE (FOR SPARE)
165SR13
185/70R13 85H
T135/70D15
165SR13
195/60VR14
205/60VR14
185/70R13 85H
7 parts on this diagram · 2 diagrams in section
