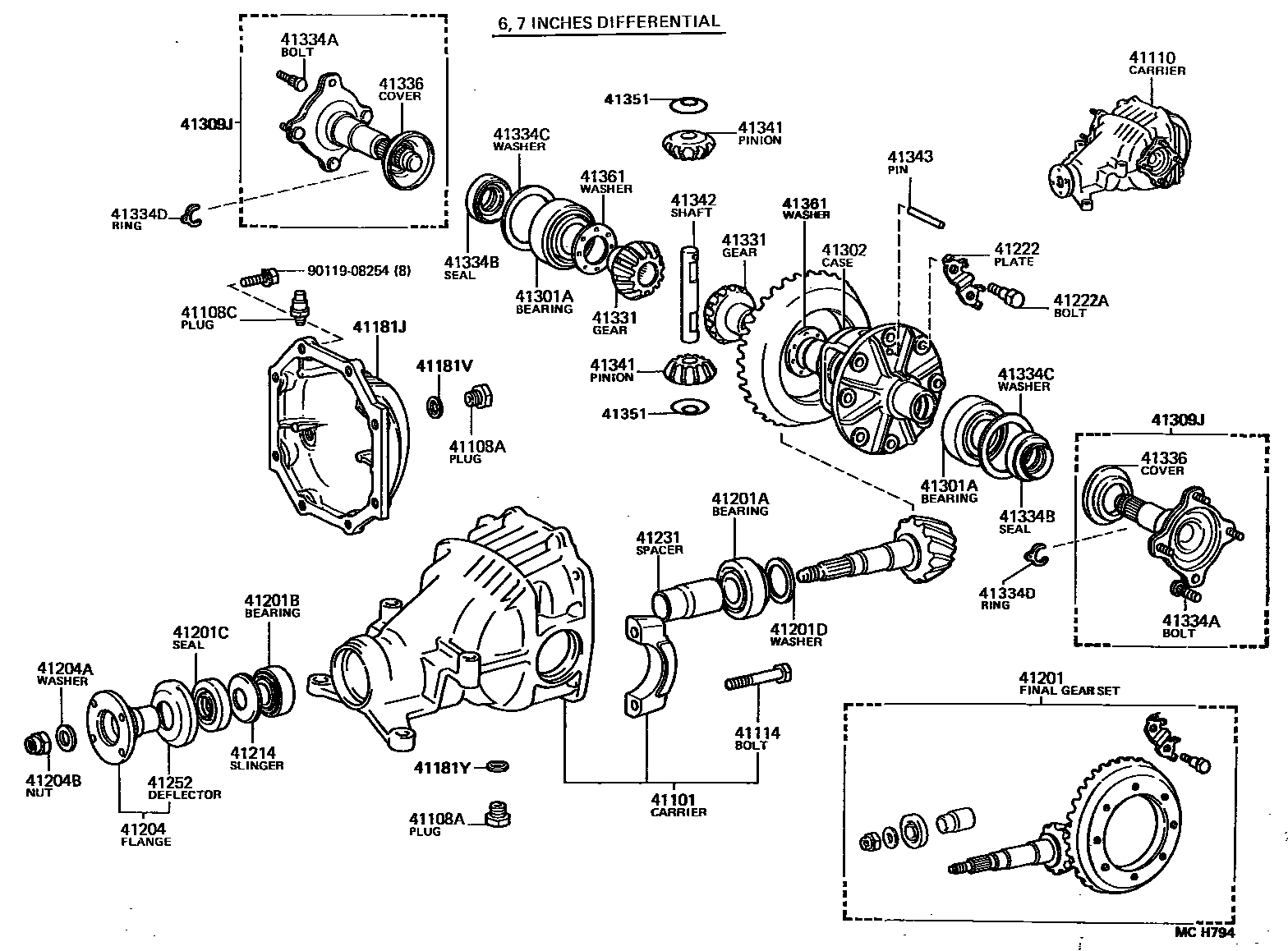

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
FILLER
DRAIN
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:14=2.929
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41181VPLUG (FOR REAR DIFFERENTIAL FILLER)
41181YGASKET (FOR REAR DIFFERENTIAL CARRIER DRAIN PLUG)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-34019
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41309JSHAFT, DIFFERENTIAL SIDE GEAR
41331GEAR, REAR DIFFERENTIAL SIDE
41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
sub90311-35032
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.4
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
9011908254
main90119-08254
36 parts on this diagram · 1 diagram in section
