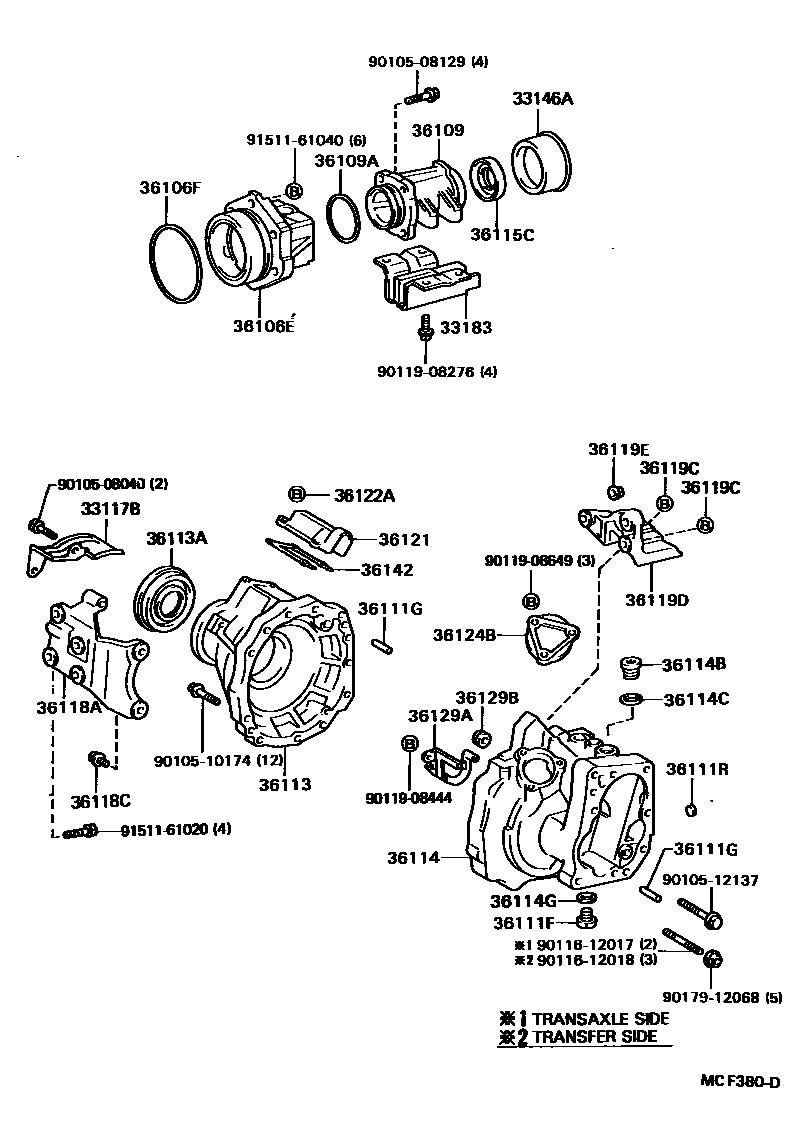

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
sub33146-30020
33183DAMPER, TRANSFER DYNAMIC
36106ECAGE SUB-ASSY, TRANSFER PINION BEARING
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=24,OD=12
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114CASE, TRANSFER, LH
sub36114-20021
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36118CBOLT (FOR TRANSFER STIFFENER PLATE)
TRANSFER SIDE
36119CBOLT (FOR TRANSFER OIL RECEIVER NO.1)
*10-1.25PX30-30
36119DPLATE, TRANSFER STIFFENER, CENTER
36119ENUT (FOR TRANSFER STIFFENER CENTER PLATE)
sub90179-10132
36121COVER, TRANSFER CASE, NO.1
36122ABOLT (FOR TRANSFER CASE)COVER NO.2
sub91611-B0825
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
36142GASKET, TRANSFER COVER
9010508040
main90105-08040
9010508129
main90105-08129
9010510174
main90105-10174
9010512137
main90105-12137
9011612017
main90116-12017
9011612018
main90116-12018
9011908276
main90119-08276
9011908444
main90119-08444
9011908649
main90119-08649
9017912068
main90179-12068
9151161020
main91511-61020
9151161040
main91511-61040
40 parts on this diagram · 1 diagram in section
