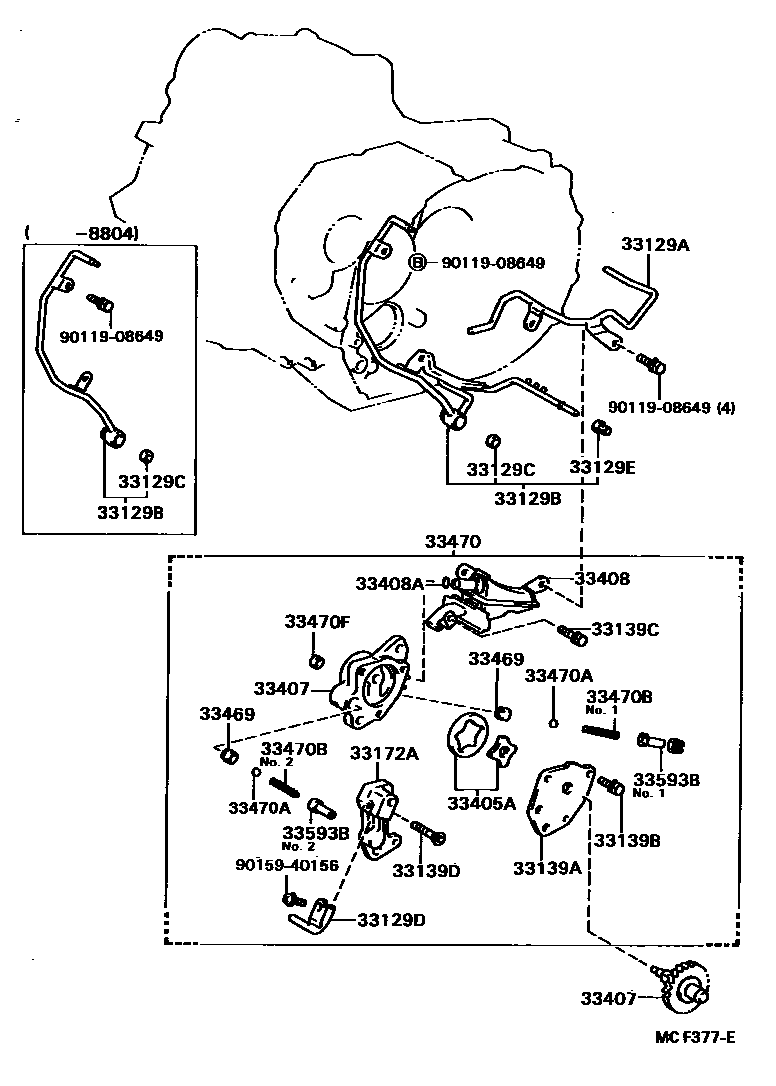

OIL PUMP, OIL COOLER & PIPE (MTM)

33129APIPE, MANUAL TRANSMISSION OIL, NO.1

main33129-20050i198710-198908

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-20031i198710-198804

main33106-20040i198804-198908

sub33106-33010

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004i198710-198908

33129DPIPE, TRANSMISSION OIL, NO.3

main33129-20040i198710-198908

33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)

main90389-05012i198804-198908

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20020i198710-198908

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199i198710-198908

33139CBOLT(FOR TRANSMISSION OIL PUMP COVER)

main90119-06268i198710-198908

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60064i198710-198908

33172ABY-PASS, TRANSMISSION OIL PUMP

main33172-20020i198710-198908

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20010i198710-198804

main33405-20020i198804-198908

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-12011i198710-198908

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20020i198710-198908

sub33408-20021

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012i198710-198908

33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)

main33469-20020i198710-198908

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-20020i198710-198804

sub33470-20021

main33470-20021i198804-198908

sub33470-20030

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-09001i198710-198908

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-07062i198710-198908

NO.2

main90501-08094i198710-198908

NO.1

33470FGASKET (FOR TRANSMISSION OIL PUMP)

main90430-09004i198710-198908

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20020i198710-198908

NO.1

main33593-20030i198710-198908

NO.2

9011908649

main90119-08649

9015940156

main90159-40156

22 parts on this diagram · 2 diagrams in section
