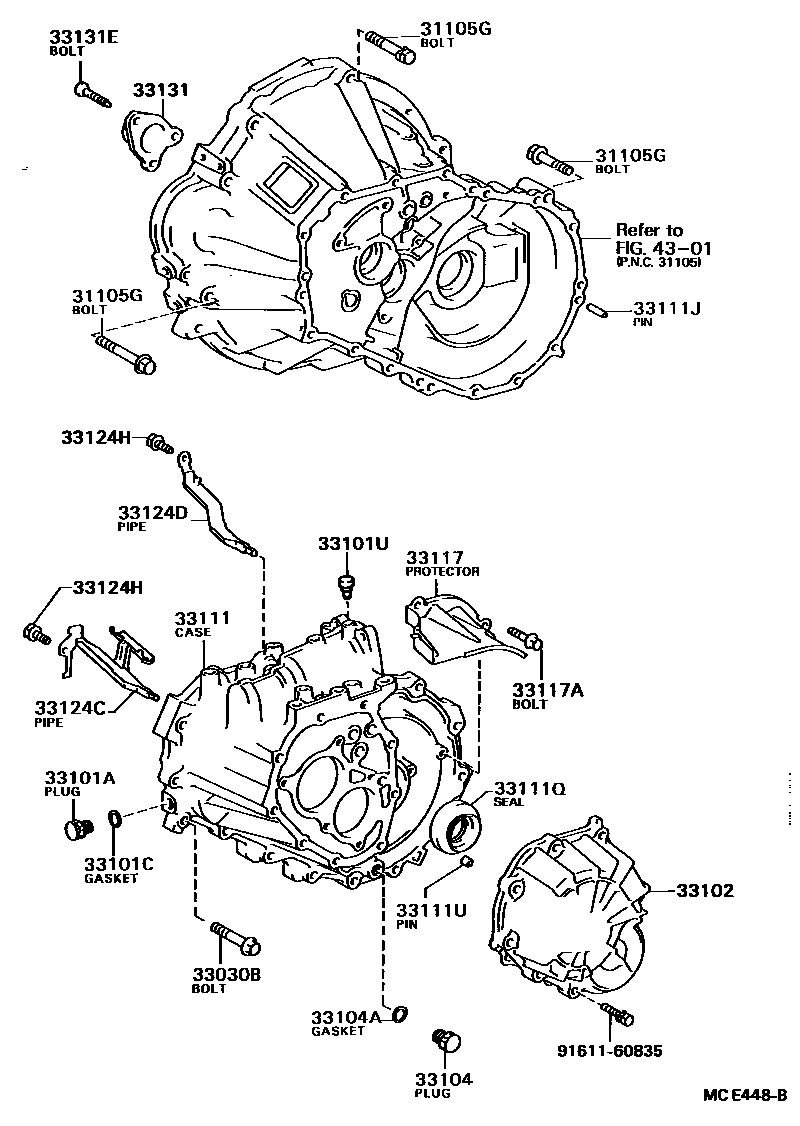

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52 0002 1S53 0003 1E50F2

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST16#..5F198708-198908

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT160,ST162..5F198708-198908

*10-1.25PX43-26

main90119-12042iAT160198708-198908

*12-1.25PX75-30

main90119-12168iST16#..5F198708-198908

*12-1.25PX55-30

main91651-41022iST162..5F198708-198908

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iST162..5F198708-198908

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAT160198708-198908

*8-1.25PX51-28

sub90105-08353

main90105-08086iAT160198904-198908

*8-1.25PX45-27.5

main90105-08126iST165198710-198908

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iST162..5F198708-198908

main90341-18006iAT160198708-198908

main90341-18033iST165198710-198908

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT160,ST16#..5F198708-198908

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iAT160,ST162..5F198708-198908

main90930-03111iST165198710-198908

sub90930-03148

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12020iAT160198708-198908

sub33102-12021

main33102-20040iST165198710-198908

sub33102-33010

main33102-32011iST162..5F198708-198908

sub33102-32012

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT160,ST16#..5F198708-198908

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT160,ST16#..5F198708-198908

33111CASE, MANUAL TRANSMISSION

main33101-20030iST165198710-198907

sub33101-20040

sub90560-10019

sub91511-61016

main33101-20040iST165198907-198908

sub33101-33010

main33111-16040iAT160198708-198908

sub33111-16070

sub90109-12073

main33111-20140iST162..5F198906-198910

sub33111-20141

main33111-32014iST162..5F198708-198906

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAT160198708-198908

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT160198708-198908

sub90311-34017

main90311-50010iST165198710-198908

sub90311-50027

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT160198708-198908

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-17010iAT160198708-198908

sub33117-16010

main33117-20020iST165198710-198908

main33117-32011iST162..5F198708-198908

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT160,ST16#..5F198708-198908

sub91641-H0820

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT160198708-198908

main33124-20020iST165198710-198908

main33124-32011iST162..5F198708-198908

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT160198708-198908

main33124-20030iST165198710-198908

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iST165198710-198908

sub90119-08830

main91611-60820iAT160198708-198908

sub91611-G0820

main91651-60618iST162..5F198708-198908

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT160198708-198908

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT160198708-198908

4301

9161160835

main91611-60835

21 parts on this diagram · 3 diagrams in section
