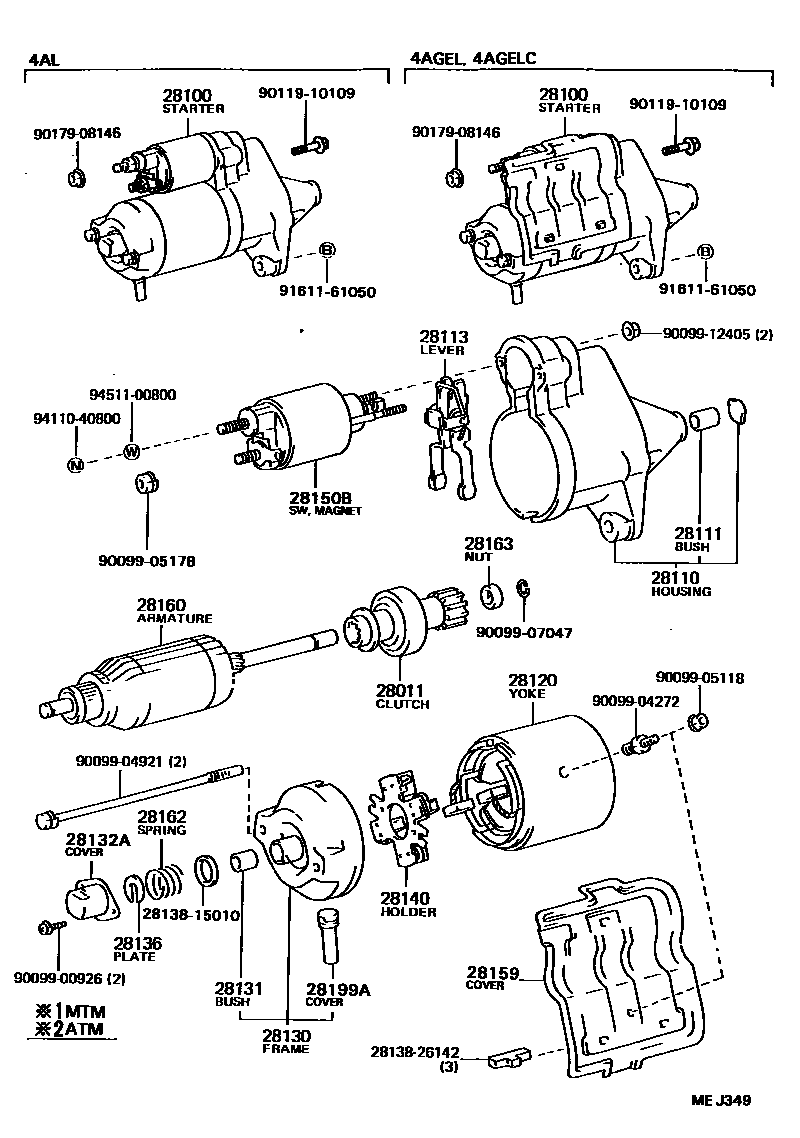

STARTER
28100STARTER ASSY
12V 0.8KW
12V 0.8KW
12V 1.0KW,COLD SPEC
12V 1.0KW
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC
COLD SPEC
28111BUSH(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
COLD SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC
COLD SPEC
28131BUSH, COMMUTATOR END FRAME
28132ACOVER, STARTER COMMUTATOR END FRAME
sub28132-15011
28136PLATE, STARTER LOCK
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC
28159COVER, STARTER PROTECTOR
28160ARMATURE ASSY, STARTER
28162SPRING, STARTER BRAKE
28163NUT OR COLLAR, PINION STOP, STARTER
28199APROTECTOR, DUST STARTER
COLD SPEC
2813815010RUBBER(FOR STARTER BEARING COVER)
main28138-15010
2813826142RUBBER(FOR STARTER BEARING COVER)
main28138-26142
9009900926
main90099-00926
9009904272
main90099-04272
9009904921
main90099-04921
9009905118
main90099-05118
9009905178
main90099-05178
9009907047
main90099-07047
9009912405
main90099-12405
9011910109
main90119-10109
9017908146
main90179-08146
9161161050
main91611-61050
9411040800
main94110-40800
9451100800
main94511-00800
31 parts on this diagram · 4 diagrams in section
