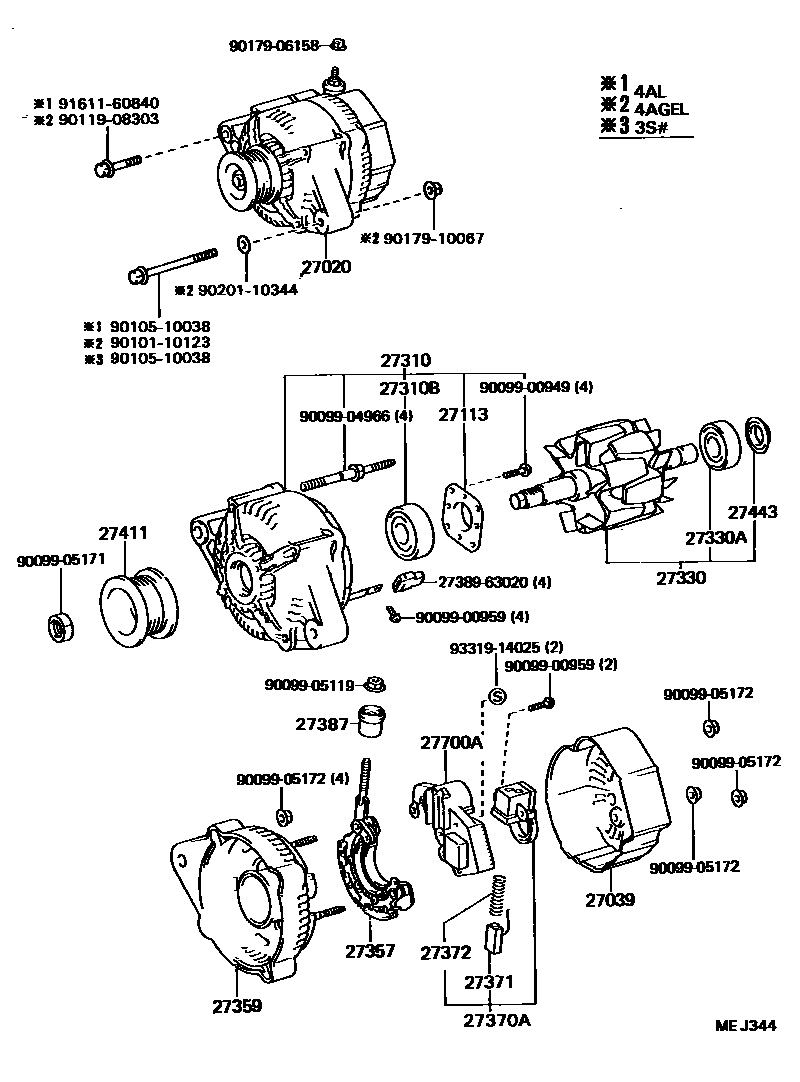

ALTERNATOR

0001 112V 55A,60A,70A 0002 112V 70A

27020ALTERNATOR ASSY

main27060-16012i4AG#..AT160198708-198804

12V 60A

main27060-16042i4AL..AT160198708-198908

12V 60A

sub27060-63102

main27060-16151i4AG#..AT160198804-198908

12V 60A

main27060-63082i3SGEL,3SGELC..ST162198708-198908

12V 70A

main27060-74010i3SGTE..ST165198710-198908

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-72010i4AG#,4AL,3SG#..AT160,ST16#198708-198908

sub27039-15170

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-70200i4AG#,4AL,3SGEL,3SGELC..AT160,ST162198708-198908

main27312-72100i3SGTE..ST165198710-198908

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16181i4AG#..AT160198708-198908

main27310-63021i3SGTE..ST165198710-198908

main27310-70100i3SGEL,3SGELC..ST162198708-198908

main27310-70200i4AL..AT160198708-198908

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i3SGTE..ST165198710-198908

sub90099-10199

main90099-10178i4AG#,4AL,3SGEL,3SGELC..AT160,ST162198708-198908

27330ROTOR ASSY, ALTERNATOR

main27330-72101i4AG#,4AL,3SG#..AT160,ST16#198708-198908

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AG#,4AL,3SG#..AT160,ST16#198708-198908

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AG#,4AL,3SG#..AT160,ST16#198708-198908

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i4AG#..AT160198708-198908

sub27359-16181

sub27384-16380

main27359-43160i3SGEL,3SGELC..ST162198708-198908

sub27359-43161

sub27384-16380

main27359-63081i3SGTE..ST165198710-198908

main27359-70200i4AL..AT160198708-198908

sub27359-43160

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i4AG#..AT160198708-198908

sub27370-54450

main27370-63021i4AL,3SG#..AT160,ST16#198708-198908

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i4AG#,4AL,3SG#..AT160,ST16#198708-198908

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-72100i4AG#,4AL,3SG#..AT160,ST16#198708-198908

sub27372-63020

27387INSULATOR, TERMINAL

main27387-70170i4AG#,4AL,3SG#..AT160,ST16#198708-198908

27411PULLEY, ALTERNATOR

main27411-16012i4AG#..AT160198708-198804

main27411-16180i4AL,3SG#..AT160,ST16#198708-198908

27443COVER, ALTERNATOR BEARING

main27443-63020i4AG#,4AL,3SG#..AT160,ST16#198708-198908

27700AREGULATOR ASSY, GENERATOR

main27700-16010i4AG#..AT160198804-198908

sub27700-66020

main27700-63021i4AG#,4AL,3SG#..AT160,ST16#198708-198812

sub27700-70030

main27700-70030i4AL,3SG#..AT160,ST16#198812-198908

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110123

main90101-10123

9010510038

main90105-10038

9011908303

main90119-08303

9017906158

main90179-06158

9017910067

main90179-10067

9020110344

main90201-10344

9161160840

main91611-60840

9331914025

main93319-14025

31 parts on this diagram · 2 diagrams in section
