1605

16261HOSE, WATER BY-PASS

main16261-15010i198708-198908

main16261-88360i198708-198908

main16261-88361i198908-198908

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003i198708-198908

sub90467-21010

main96112-10250i198708-198908

16262HOSE, WATER INLET

main16262-15010i198708-198908

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i198708-198908

sub90467-34004

16264HOSE, WATER BY-PASS, NO.2

main16264-15030i198708-198908

main16264-16030i198708-198908

main16264-88381i198710-198908

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i198708-198802

sub96135-51100

main90467-11049i198802-198908

sub90467-11009

main90467-13001i198708-198908

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-16010i198708-198908

main16267-88380i198710-198908

main16267-88381i198802-198908

main99555-00100i198708-198908

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i198708-198802

sub96135-51100

main90467-11049i198802-198908

sub90467-11009

main90467-13001i198708-198908

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-15050i198708-198908

main16268-16070i198708-198908

sub16268-16071

main16268-74040i198708-198908

main16268-88381i198710-198908

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i198708-198908

main96761-24017i198708-198908

16321INLET, WATER

main16321-15010i198708-198908

main16321-88360i198708-198908

main16321-88380i198710-198908

16322PIPE, WATER INLET

main16322-15030i198708-198908

16322ARING, O(FOR WATER INLET)

main96711-24035i198708-198908

sub96761-24035

16323HOUSING, WATER INLET

main16323-14010i198708-198908

main16323-15040i198708-198908

main16323-16050i198708-198908

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i198708-198908

sub16325-63011

16331OUTLET, WATER

main16304-74010i198708-198809

sub16304-74011

main16304-74011i198809-198908

main16304-74020i198708-198809

sub16304-74021

main16304-74021i198809-198908

main16304-88381i198710-198908

main16331-15060i198708-198908

main16331-16030i198708-198908

16331ATHERMOSTAT

main90916-03046i198708-198908

*WAX 82-95

main90916-03060i198708-198908

*WAX 82-95

sub90916-03090

16341GASKET, WATER OUTLET

main16341-15011i198708-198908

sub16341-15012

main16341-16020i198708-198908

main16341-63010i198708-198907

sub16341-63011

16361FAN

main16361-15080i198708-198908

main16361-63020i198710-198908

sub16361-74070

main16361-63040i198708-198908

main16361-64010i198708-198908

16363MOTOR, COOLING FAN

main16363-10010i198708-198908

main16363-16010i198708-198908

main16363-16020i198710-198908

16381BAR, FAN BELT ADJUSTING

main16381-15041i198708-198806

main16381-16021i198806-198908

main16381-16050i198708-198908

16385SLIDER, FAN BELT ADJUSTING

main16385-15010i198708-198908

16400RADIATOR ASSY

main16400-15190i198708-198908

sub16400-15200

main16400-16010i198708-198908

sub16400-15200

main16400-74060i198708-198908

sub16400-74070

main16400-74070i198708-198908

main16400-74170i198710-198905

sub16400-74640

main16400-74171i198905-198908

main16400-74640i198904-198905

16401CAP SUB-ASSY, RADIATOR

main16401-63010i198708-198908

main16401-74170i198904-198908

16470TANK ASSY, RADIATOR RESERVE

main16470-16050i198708-198908

main16470-74010i198708-198908

sub16470-74170

main16470-74060i198710-198905

sub16470-74170

main16470-74080i198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main16470-74160i198905-198908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-73020i198708-198908

NO.1

main85338-74080i198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main90445-12043i198708-198908

L=600(*H,L=360)

sub90445-12078

main90445-12078i198708-198908

L=600

main90445-12078i198708-198908

L=1800(*H,L=160),NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i198708-198908

main90467-13001i198905-198908

sub96135-51300

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-74010i198708-198908

16471CAP SUB-ASSY, RESERVE TANK

main16405-16040i198708-198908

main16405-74010i198708-198908

main16405-74050i198710-198905

sub16405-74150

main16405-74080i198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

main16405-74140i198905-198908

16472HOSE, BREATHER

main85338-14030i198708-198908

main85338-74040i198708-198908

W(ANTI-LOCK BRAKE SYSTEM)

16533SUPPORT, RADIATOR, UPPER

main16533-74010i198708-198908

main16533-74020i198710-198908

16571HOSE, RADIATOR, INLET

main16571-16060i198708-198908

main16571-16110i198708-198908

OUTLET SIDE

main16571-74070i198710-198908

main16571-74080i198708-198908

sub16571-74090

main16573-16030i198708-198908

RADIATOR SIDE

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i198708-198908

sub90467-34003

main90467-34003i198708-198908

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-16060i198708-198908

main16572-74030i198708-198901

main16572-74070i198710-198908

main16572-74120i198901-198908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i198708-198908

sub90467-34003

main90467-34003i198708-198908

sub90467-34004

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-15020i198708-198908

16701SHROUD SUB-ASSY, FAN

main16711-16060i198708-198908

sub16711-15210

main16711-74020i198708-198908

main16711-74030i198708-198908

main16711-74090i198710-198908

9009900183

main90099-00183

9009905164

main90099-05164

9011908419

main90119-08419

9011910194

main90119-10194

9017908068

main90179-08068

9017908123

main90179-08123

9046208028

main90462-08028

9151160616

main91511-60616

9151160820

main91511-60820

9161160840

main91611-60840

9162160818

main91621-60818

9165140612

main91651-40612

9165140814

main91651-40814

9165140816

main91651-40816

9165160612

main91651-60612

9165160614

main91651-60614

9165160825

main91651-60825

9212260818

main92122-60818

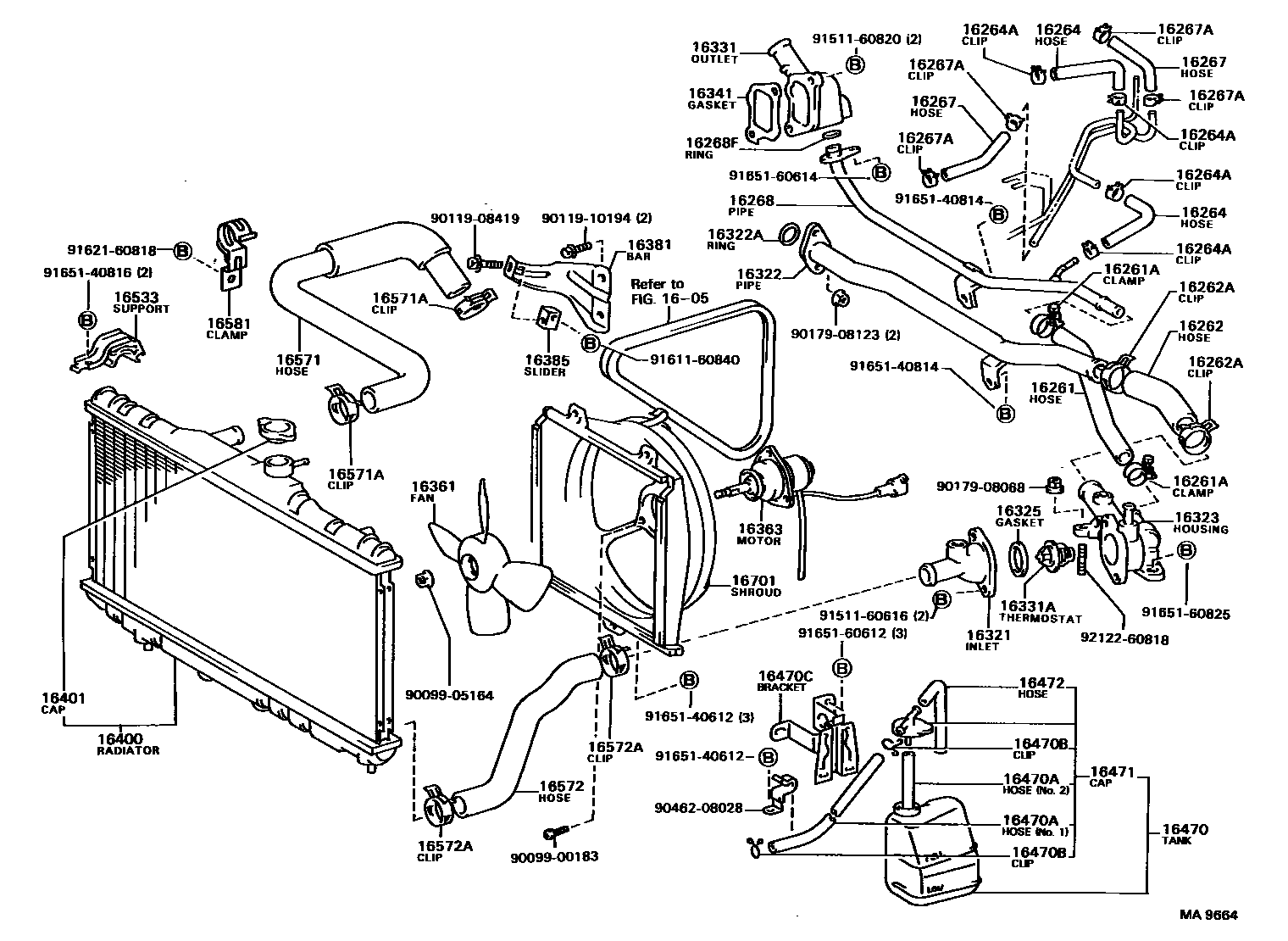

RADIATOR & WATER OUTLET
