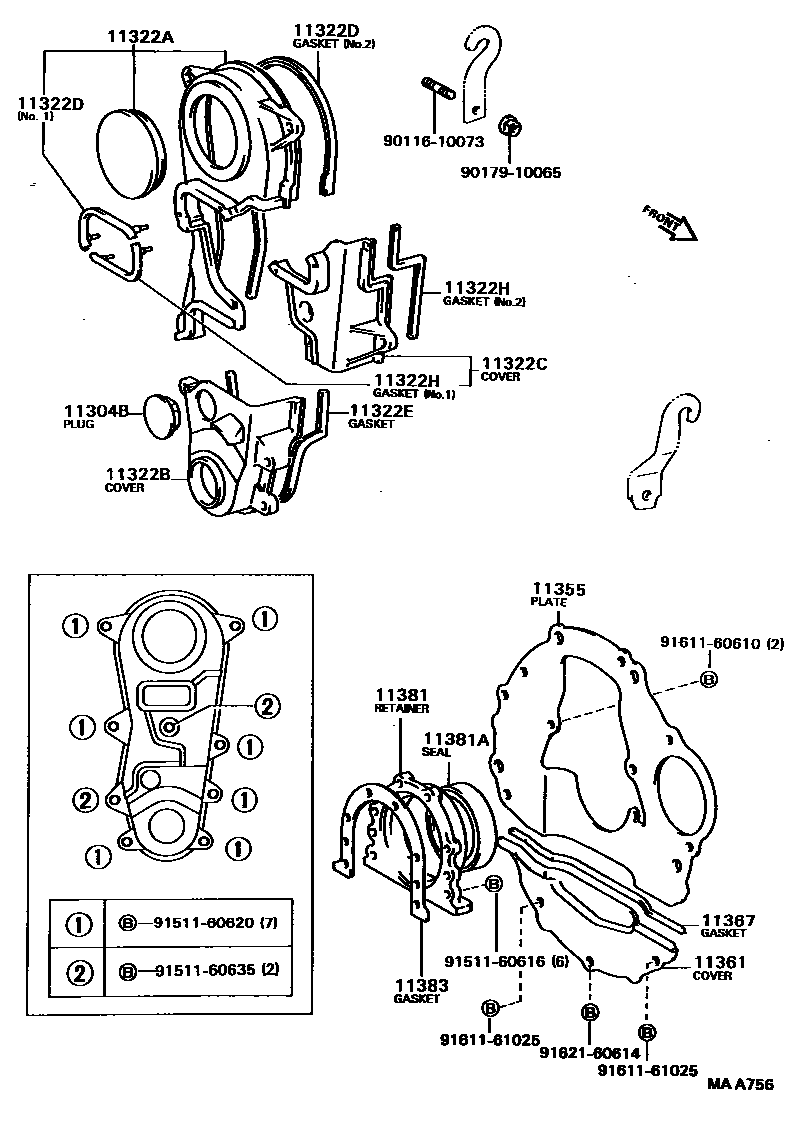

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=34
OD=22
11322ACOVER, TIMING BELT, NO.1
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
NO.2
NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
NO.2
NO.1
11355PLATE, REAR END
11361COVER, FLYWHEEL HOUSING UNDER
11367GASKET, FLYWHEEL HOUSING UNDER
9011610073
main90116-10073
9017910065
main90179-10065
9151160616
main91511-60616
9151160620
main91511-60620
9151160635
main91511-60635
9161160610
main91611-60610
9161161025
main91611-61025
9162160614
main91621-60614
22 parts on this diagram · 4 diagrams in section
