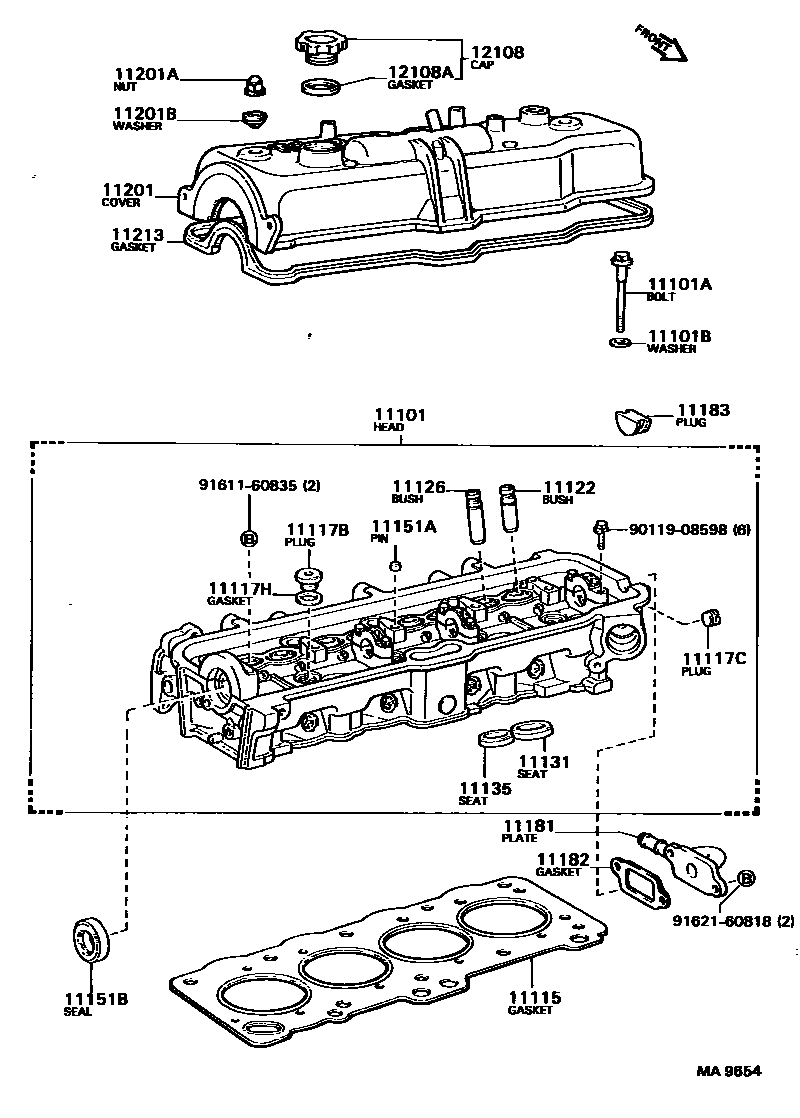

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
LH
RH
RH
LH
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
RH
LH
12108AGASKET(FOR OIL FILLER CAP)
9011908598
main90119-08598
9161160835
main91611-60835
9162160818
main91621-60818
25 parts on this diagram · 4 diagrams in section
