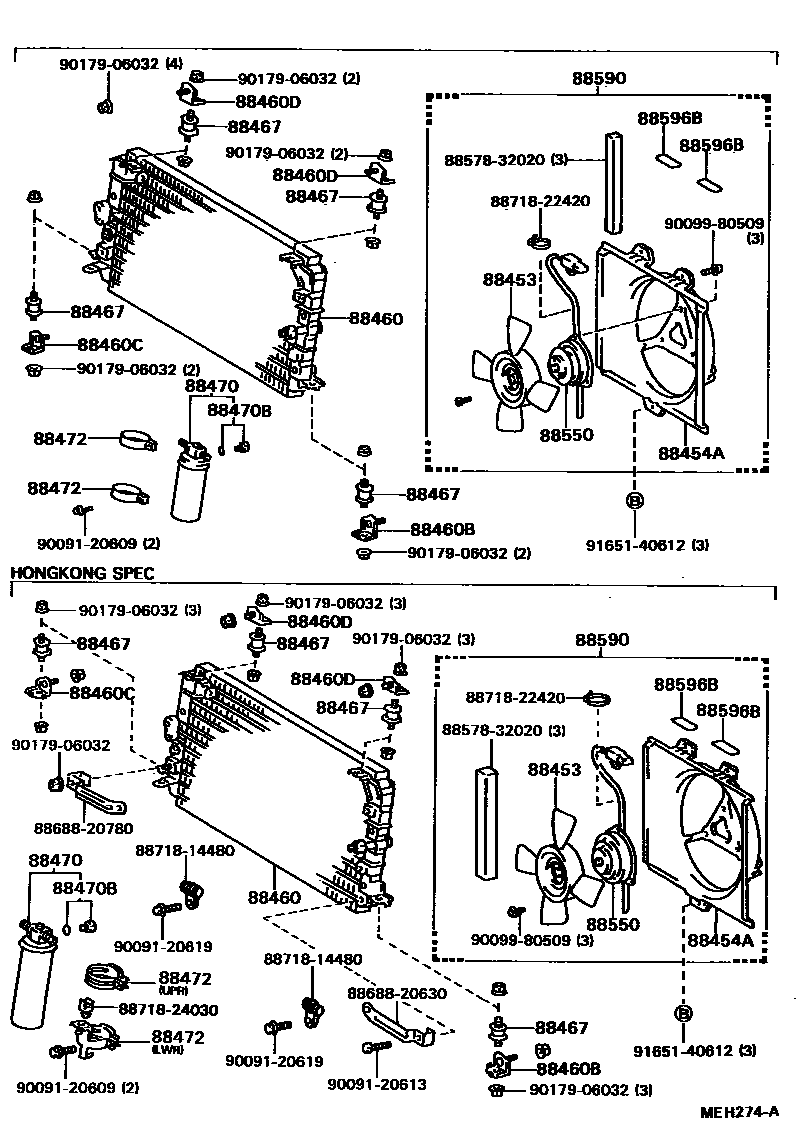

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88453FAN, COOLING (FOR CONDENSER)

main88453-10010iAT160..CBR198508-198708

main88453-32020iST162..EUG,FRG198508-198708

HONGKONG SPEC

88454ASHROUD, FAN

main88454-32030iST162..EUG,FRG198508-198708

HONGKONG SPEC

88460CONDENSER ASSY, COOLER

main88460-20200iAT160..CBR198508-198708

HONGKONG SPEC

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-20650iAT160..CBR198508-198708

HONGKONG SPEC

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-20660iAT160..CBR198508-198708

HONGKONG SPEC

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-20620iAT160..CBR198508-198708

HONGKONG SPEC

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040iAT160..CBR198508-198708

PIPING

main88467-14040iAT160..CBR198508-198708

HONGKONG SPEC

main88467-14040iAT160..CBR198508-198708

CONDENSER

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iAT160..CBR198508-198708

HONGKONG SPEC

sub88470-14010

88470BBOLT, FUSE

main88475-12020iAT160..CBR198508-198708

HONGKONG SPEC

88472BRACKET, RECEIVER TANK, NO.1

main88472-20030iST162..(CP,LB)..RHD198508-198708

LWR,HONGKONG SPEC

main88472-22090iST162..(CP,LB)..RHD198508-198708

UPR,HONGKONG SPEC

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iAT160..CBR198508-198708

HONGKONG SPEC

88590BLOWER ASSY, W/SHROUD

main88590-12140iAT160..CBR198508-198708

main88590-20100iST162..EUG,FRG198508-198708

HONGKONG SPEC

88596BPLATE, CAUTION, NO.1

main88596-12010iST162..EUG,FRG198508-198608

AIR CONDITIONER CAUTION

sub88723-12010

main88596-12010iST162..EUG,FRG198508-198608

A.C CAUTION,HONGKONG SPEC

sub88723-12010

main88596-12040iST162..EUG,FRG198508-198608

CAUTION

main88596-24010iST162..RHD198508-198708

CAUTION

main88723-12010iST162..EUG,FRG198608-198708

AIR CONDITIONER CAUTION

main88723-12010iST162..EUG,FRG198608-198708

A.C CAUTION,HONGKONG SPEC

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8868820630BRACKET, COOLER DIAPHRAGM

main88688-20630

8868820780BRACKET, COOLER DIAPHRAGM

main88688-20780

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

9009120609

main90091-20609

9009120613

main90091-20613

9009120619

main90091-20619

9009980509

main90099-80509

9017906032

main90179-06032

9165140612

main91651-40612

25 parts on this diagram · 3 diagrams in section
