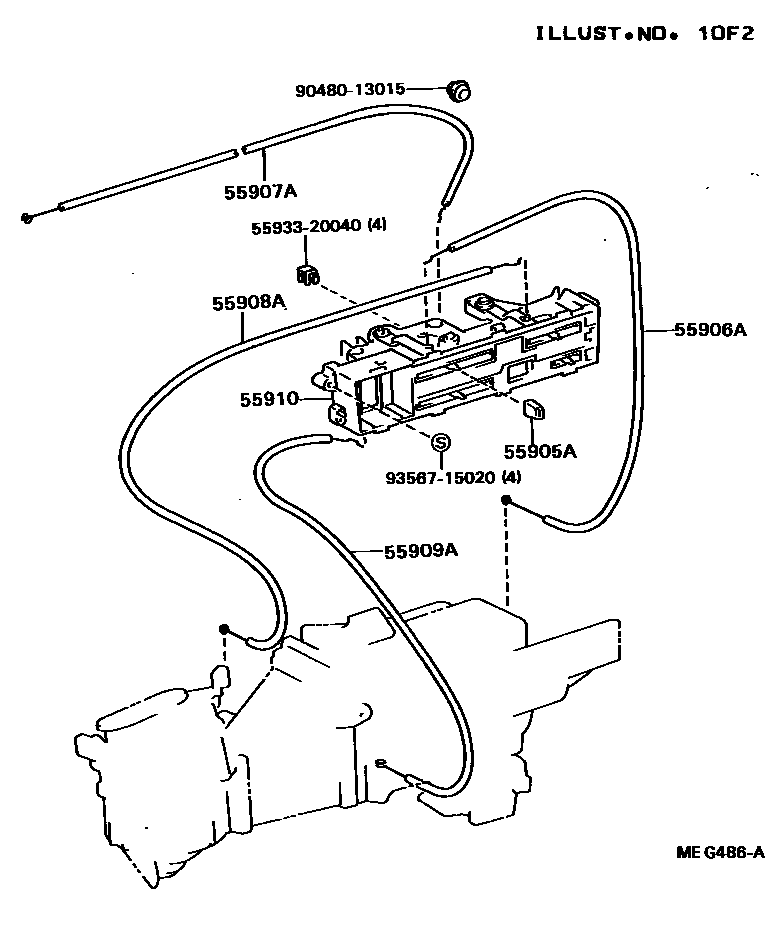

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55905AKNOB, HEATER CONTROL

main55905-12070iAT160,ST162198508-198708

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20210iST162..RHD198508-198708

main55906-20230iAT160,ST162..LHD198508-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20180iST162..RHD198508-198708

main55907-20190iAT160,ST162..LHD198508-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20100iST162..RHD198508-198708

main55908-20110iAT160,ST162..LHD198508-198708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20050iST162..RHD198508-198708

main55909-20060iAT160,ST162..LHD198508-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20370iST162..RHD198508-198708

main55910-20390iAT160,ST162..LHD198508-198708

5593320040GUIDE, LEVER, NO.2

main55933-20040

9048013015

main90480-13015

9356715020

main93567-15020

9 parts on this diagram · 3 diagrams in section
