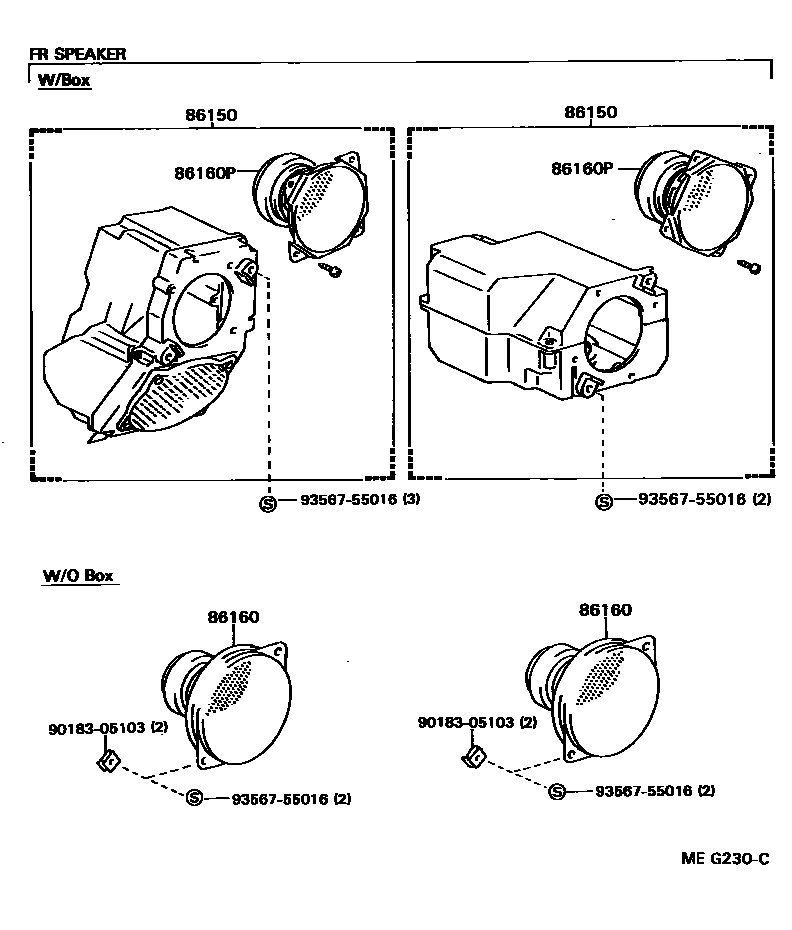

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-20050iST162..(CP,LB)..RHD198508-198708

FR,RH

main86150-20060iST162..(CP,LB)..RHD198508-198708

FR,LH

main86150-20070iAT160,ST162..(CP,LB)..LHD198608-198708

FR,LH

main86150-20080iST162..FRG,SDZ198508-198608

FR,RH

main86150-20090iST162..LB..RHD198508-198608

RR,RH

sub86150-20091

main86150-20100iST162..LB..RHD198508-198608

RR,LH

sub86150-20101

86160SPEAKER ASSY, FRONT NO.1

main86160-20240×2iAT160,ST162198508-198708

86160PSPEAKER ASSY, FRONT NO.2

main86160-20280×2iST162..(CP,LB)..RHD198508-198708

main86160-20290×2iST162..FRG,SDZ198508-198608

9018305103

main90183-05103

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section
