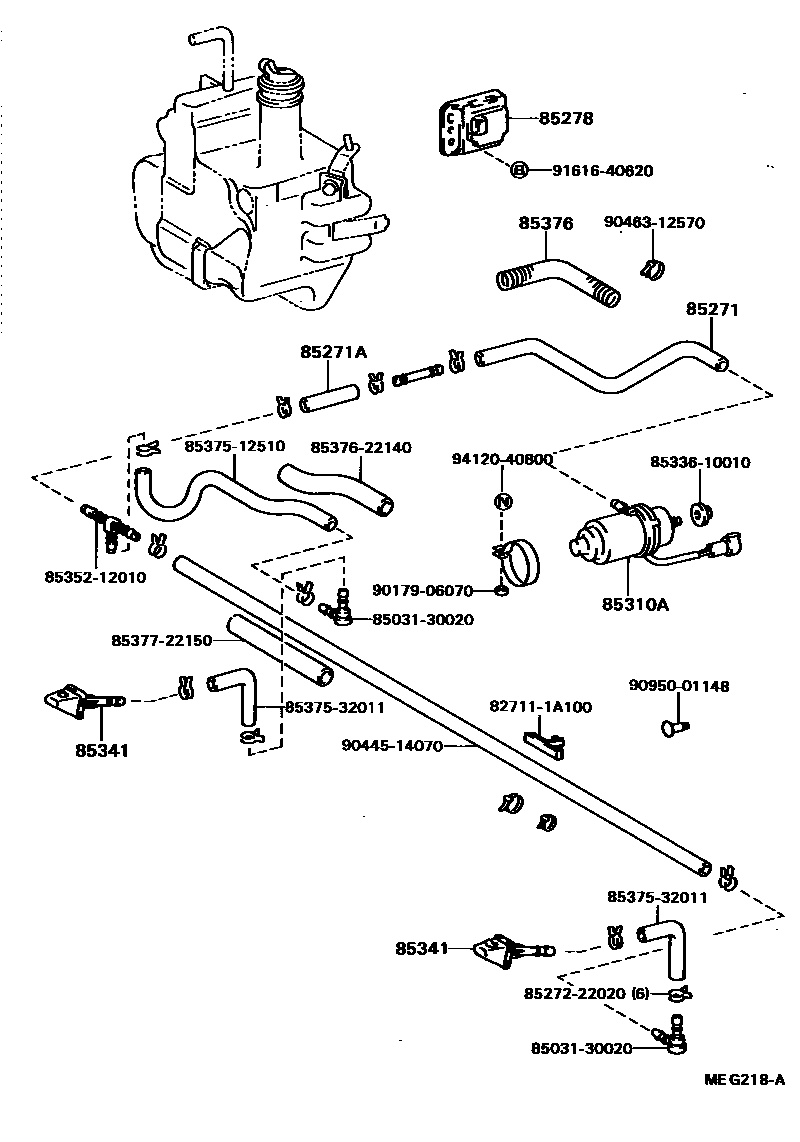

HEADLAMP CLEANER

85271HOSE, HEADLAMP CLEANER, NO.1

main85375-12480iAT160,ST162..CP,LB198508-198708

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-20190iAT160,ST162..CP,LB198508-198708

L=90

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22070iAT160,ST162..CP,LB198508-198708

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22100iAT160,ST162..CP,LB198508-198708

sub85310-95J02

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-20090iAT160,ST162..CP,LB198508-198708

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12480iAT160,ST162..CP,LB198508-198708

827111A100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A100

8503130020VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

8533610010SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-10010

8535212010

main85352-12010

8537512510HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12510

8537532011HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-32011

8537622140PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-22140

8537722150

main85377-22150

9017906070

main90179-06070

9044514070

main90445-14070

9046312570

main90463-12570

9095001148

main90950-01148

9161640620

main91616-40620

9412040800

main94120-40800

21 parts on this diagram · 1 diagram in section
