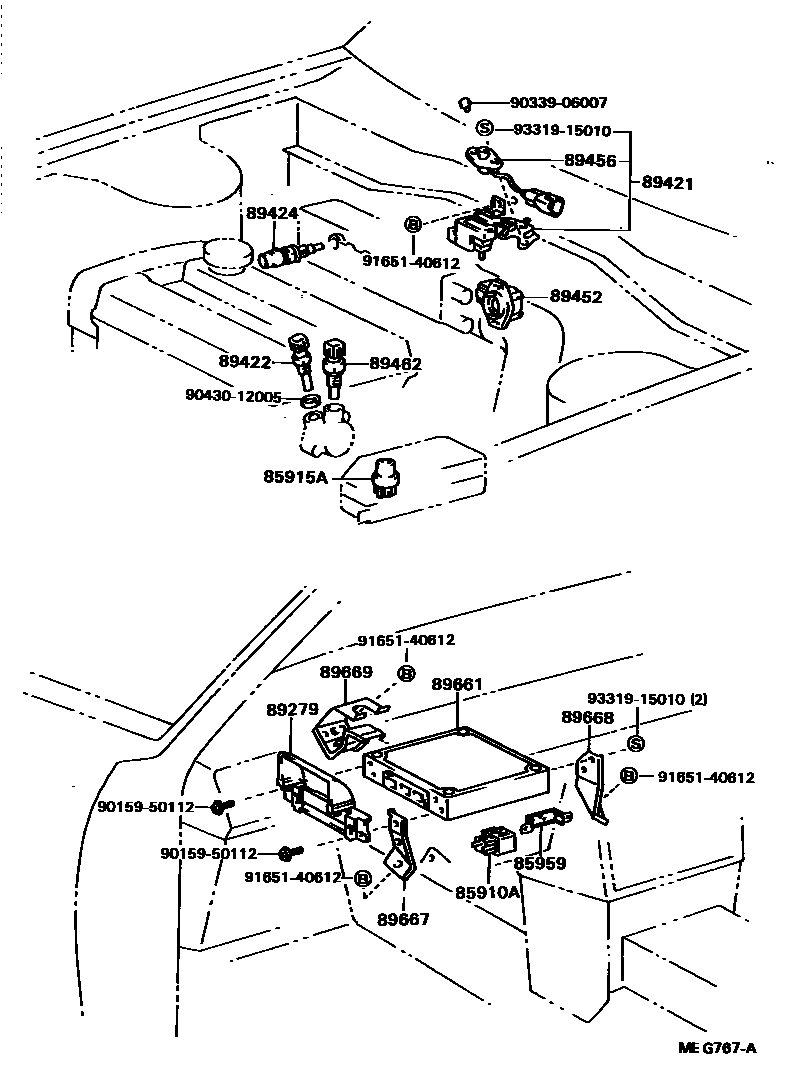

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iAT160,ST162..TWC198508-198708

85915ARELAY, MAIN

main90987-02004iAT160,ST162..TWC198508-198708

85959HOLDER, RELAY

main85959-20040iAT160,ST162..TWC198508-198708

89279COVER, ENGINE CONTROL COMPUTER

main89279-32030iAT160..TWC198508-198708

main89279-32040iST162198508-198708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-20040iAT160..TWC198508-198708

sub89420-20060

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iAT160,ST162..TWC198508-198708

sub89422-12010

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iAT160..TWC198508-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20050iST162198508-198708

main89452-20070iAT160..TWC198608-198708

main89452-28010iAT160..TWC198508-198608

sub89452-28040

89456RESISTOR, VARIABLE

main89456-20010iAT160..TWC198508-198708

89462SWITCH, START INJECTOR TIME

main89462-20010iST162..FRG198508-198708

main89462-30011iAT160..TWC198508-198708

main89462-40010iST162..EUG,SDZ198508-198708

89661COMPUTER, ENGINE CONTROL

main89661-20120iAT160..TWC198508-198708

main89661-20170iST162..SDZ198508-198708

main89661-20180iST162..EUG198508-198708

main89661-20210iST162..FRG198508-198708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20060iST162..RHD198508-198708

main89667-20070iAT160,ST162..LHD..TWC198508-198708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20040iST162..RHD198508-198708

main89668-20050iAT160,ST162..LHD..TWC198508-198708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20030iAT160,ST162..TWC198508-198708

9015950112

main90159-50112

9033906007

main90339-06007

9043012005

main90430-12005

9165140612

main91651-40612

9331915010

main93319-15010

19 parts on this diagram · 2 diagrams in section
