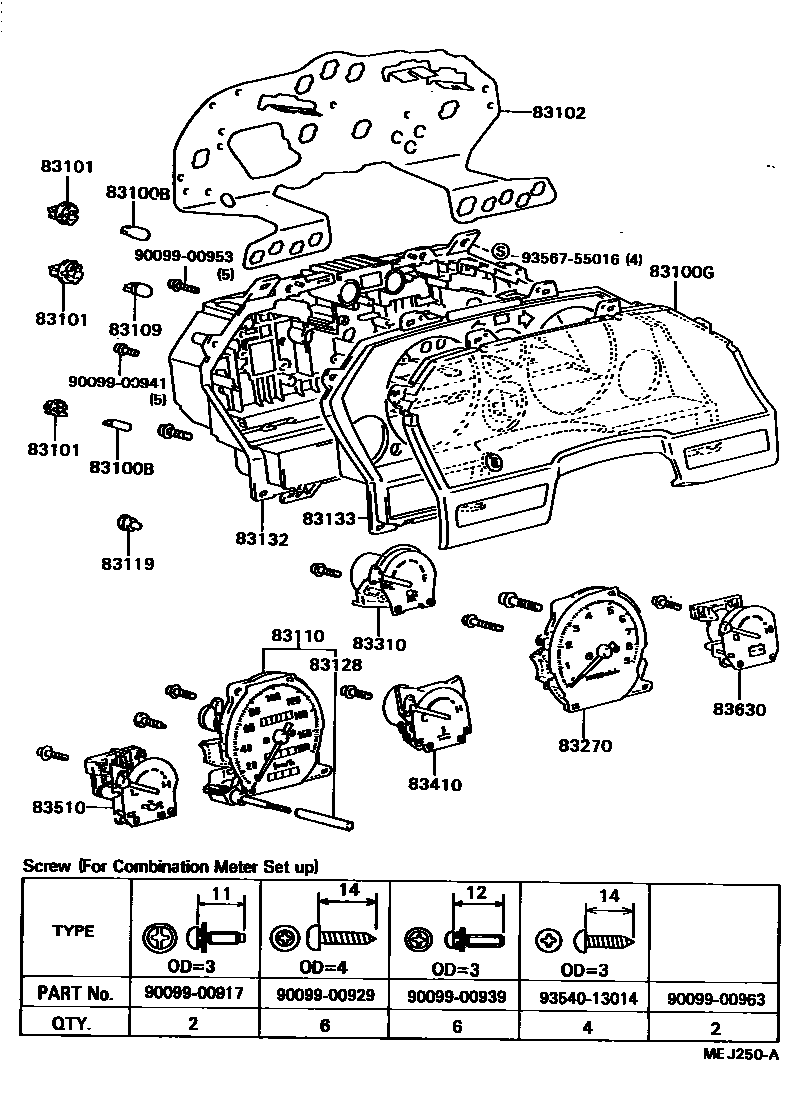

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iAT160,ST162198508-198708

12V 1.2W W/O SOCKET

main90981-11038iST162..CP,LB198508-198708

12V 5W,W/*DS

main99132-12034iAT160,ST162198508-198708

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-1B030iST162..(CP,LB)..RHD198508-198708

W/*DS

main83138-1B050iST162..(CP,LB)..LHD198508-198708

W/*DS

main83138-1B130iST162..RHD198508-198708

main83138-1B150iAT160,ST162..LHD198508-198708

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020iST162..CP,LB198508-198708

BULB;12V 3.4W,W/*DS

main83101-14030iAT160,ST162198508-198708

BULB;12V 3.4W

main83101-14040iAT160,ST162198508-198708

BULB;12V 1.4W

main83101-20090iST162..CP,LB198508-198708

BULB;12V 5W,W/*DS

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1D790iST162..(CP,LB)..RHD198508-198708

W/*DS

main83247-1D830iST162..(CP,LB)..LHD198508-198708

W/*DS

main83247-1J090iST162..RHD..5F198508-198608

sub83247-1J110

main83247-1J110iST162..RHD..4FC198508-198608

main83247-1J210iAT160198508-198608

main83247-1J230iST162..LHD..5F198508-198608

main83247-1J250iST162..LHD..4FC198508-198608

main83247-1J440iST162..RHD..5F198608-198708

main83247-1J460iST162..RHD..4FC198608-198708

main83247-1J520iAT160..CBR198608-198708

main83247-1J540iAT160..TWC198608-198708

main83247-1J560iST162..LHD..5F198608-198708

main83247-1J700iST162..LHD..4FC198608-198708

83109BULB, COMBINATION METER, NO.2

main83109-24020iAT160,ST162198608-198708

12V3.4W W(GREEN CAP),W/O *DS

main83109-24030iAT160,ST162198508-198608

12V3.4W W(GREEN CAP)

main83109-24030iST162..CP,LB198608-198708

12V3.4W W(GREEN CAP),W/*DS

main83109-24040iST162..CP,LB198508-198708

12V1.4W W(GREEN CAP),W/*DS

83110SPEEDOMETER ASSY

main83110-2B420iST162..RHD198508-198708

main83110-2B470iAT160..CBR198508-198708

main83110-2B480iAT160,ST162..LHD..TWC198508-198708

sub83110-2B490

83119BULB, COMBINATION METER, NO.3

main83101-20080iST162..4FC198508-198708

12V 1.4W,W(SOCKET)

83128KNOB, TRIP COUNTER

main83128-14610iST162..CP,LB198508-198708

W/*DS

main83128-14670iAT160,ST162198508-198708

83132CASE, COMBINATION METER

main83132-1D080iST162..RHD..5F198608-198708

main83132-1D100iST162..RHD..4FC198608-198708

main83132-1D160iAT160..CBR198608-198708

main83132-1D170iST162..LB..FRG198508-198708

W/*DS

main83132-1D180iAT160..TWC198608-198708

sub83132-1D200

main83132-1D200iST162..LHD198608-198708

main83132-1D340iST162..LHD..4FC198608-198708

main83132-1D850iST162..(CP,LB)..RHD198508-198708

W/*DS

main83132-1D890iST162..(CP,LB)..LHD..(EUG,SDZ)198508-198708

W/*DS

main83132-1J110iST162..RHD..5F198508-198608

sub83132-1J130

main83132-1J130iST162..RHD..4FC198508-198608

sub83132-1C150

main83132-1J250iAT160198508-198608

sub83132-1J290

main83132-1J270iST162..LHD198508-198608

sub83132-1J290

main83132-1J290iST162..LHD..4FC198508-198608

83133PLATE, COMBINATION METER, NO.1

main83133-1B290iST162..RHD..4FC198508-198708

W/*DS

main83133-1B310iST162..(CP,LB)..LHD198508-198708

W/*DS

main83133-1B470iST162..RHD198508-198708

main83133-1B490iAT160,ST162..LHD198508-198708

83270TACHOMETER ASSY, ENGINE

main83242-1B070iST162..RHD..5F198508-198708

main83242-1B110iST162..RHD..4FC198508-198708

main83242-1B230iAT160..CBR198508-198708

main83242-1B250iAT160..TWC198508-198708

main83242-1B270iST162..LHD..5F..(EUG,SDZ)198508-198708

main83242-1B290iST162..LHD..4FC198508-198708

main83242-1B430iST162..FRG198508-198708

83310GAGE ASSY, FUEL RECEIVER

main83243-14710iST162..RHD198508-198708

main83243-14730iAT160,ST162..LHD198508-198708

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B110iAT160,ST162..EUG,SDZ198508-198708

main83244-1B130iST162..FRG198508-198708

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14650iAT160,ST162198508-198708

83630VOLTMETER ASSY

main83251-14630iAT160,ST162198508-198708

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9009900941

main90099-00941

9009900953

main90099-00953

9009900963

main90099-00963

9354013014

main93540-13014

9356755016

main93567-55016

23 parts on this diagram · 3 diagrams in section
