WIRING & CLAMP

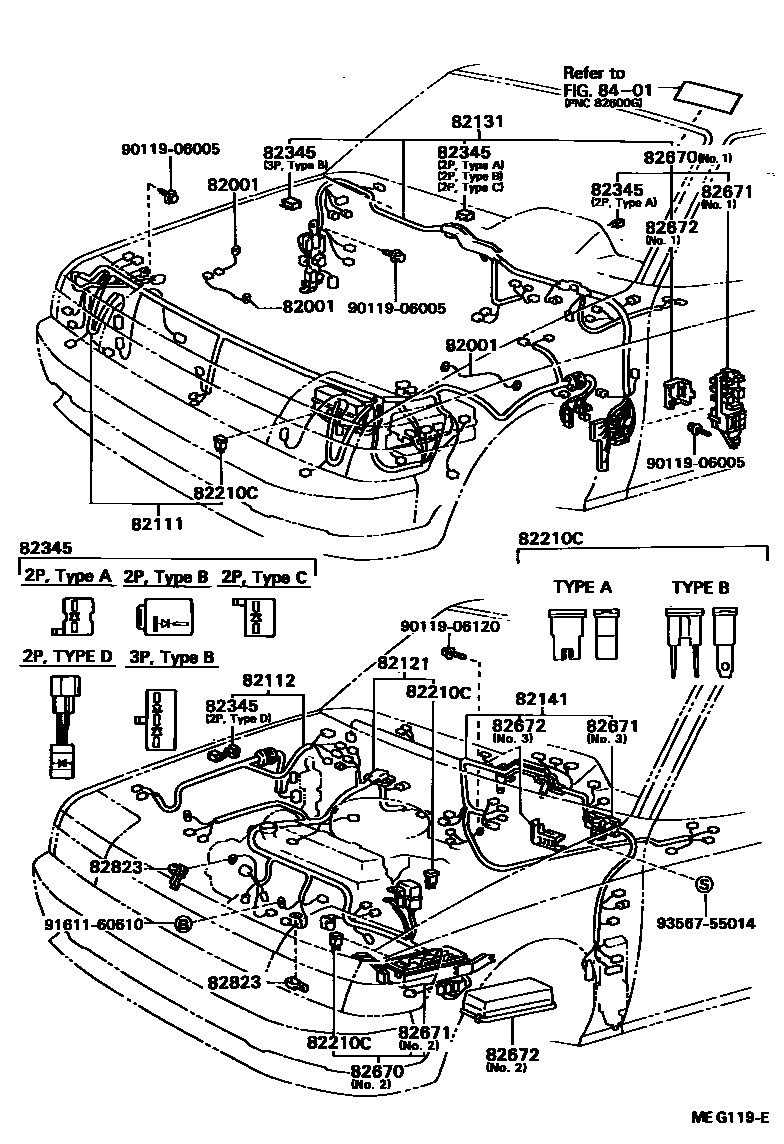

Parts diagram
82001CABLE, BOND, NO.1
main90980-07206i198508-198708
FENDER RH
main90980-07235i198508-198708
ENGINE HANGGER
main90980-07236i198508-198708
ENGINE HANGGER
main90980-07239i198508-198708
ENGINE HANGGER
main90980-07264i198508-198708
TRANSMISSION-FENDER LH
82111WIRE, ENGINE ROOM MAIN
main82111-20460i198508-198604
sub82111-20461
main82111-20461i198604-198708
main82111-20470i198508-198604
sub82111-20471
main82111-20471i198604-198708
main82111-20480i198508-198604
*FRG
sub82111-20481
main82111-20481i198604-198708
*FRG
main82111-20790i198611-198708
ENGLAND SPEC
82112WIRE, ENGINE ROOM, NO.2
main82112-20090i198508-198708
main82112-20120i198508-198708
main82112-20200i198508-198607
sub82112-20201
main82112-20201i198607-198708
82121WIRE, ENGINE
main82121-20450i198508-198511
sub82121-20451
main82121-20451i198511-198607
sub82121-20452
main82121-20452i198607-198609
main82121-20453i198609-198708
main82121-20460i198508-198511
sub82121-20461
main82121-20461i198511-198607
sub82121-20462
main82121-20462i198607-198609
main82121-20463i198609-198708
main82121-20490i198508-198609
main82121-20491i198609-198612
sub82121-20492
main82121-20492i198612-198708
main82121-20510i198508-198609
main82121-20511i198609-198708
main82121-20520i198508-198511
sub82121-20521
main82121-20521i198511-198607
sub82121-20522
main82121-20522i198607-198609
main82121-20523i198609-198708
main82121-20530i198508-198511
sub82121-20531
main82121-20531i198511-198607
sub82121-20532
main82121-20532i198607-198609
main82121-20533i198609-198708
main82121-20560i198508-198511
sub82121-20561
main82121-20561i198511-198607
sub82121-20562
main82121-20562i198607-198609
main82121-20563i198609-198708
82131WIRE, COWL
main82131-2B360i198508-198602
sub82131-2B361
main82131-2B361i198602-198604
main82131-2B362i198604-198708
main82131-2B390i198508-198602
sub82131-2B391
main82131-2B391i198602-198604
main82131-2B392i198604-198708
main82131-2B400i198508-198602
sub82131-2B401
main82131-2B401i198602-198604
main82131-2B402i198604-198708
main82131-2D440i198611-198708
ENGLAND SPEC
82141WIRE, INSTRUMENT PANEL
main82141-20380i198508-198708
main82141-20410i198508-198708
main82141-20420i198508-198708
main82141-20430i198508-198708
W/*DS
main82141-20530i198508-198708
W/*DS
82210CFUSIBLE LINK
main90982-08188i198508-198708
30A,TERM.:FEMALE,PNK,30A,TYPE A
main90982-08189i198508-198708
40A,TERM.:FEMALE,GRN,40A
main90982-08203i198508-198708
80A,TERM.:MALE,BLK,80A
main90982-08223i198508-198708
30A,TERM.:MALE,PNK,30A,TYPE B
82345DIODE
main82345-12020i198607-198708
2P,TYPE B
main82345-20030i198610-198708
2P,TYPE D
sub82345-20070
main82345-20040i198611-198708
3P,TYPE B,ENGLAND SPEC
main82345-20040i198508-198708
3P,TYPE B
main82345-20050i198611-198708
3P,TYPE A,ENGLAND SPEC
main82345-20060i198508-198708
2P,TYPE A
main82345-32010i198508-198708
2P,TYPE C
82670BLOCK ASSY, JUNCTION, NO.1
main82670-20010i198508-198708
NO.1
main82670-20040i198508-198708
NO.1
main82670-20050i198508-198708
NO.2
82671BLOCK, JUNCTION
main82671-20030i198508-198708
NO.1
main82671-20040i198508-198708
NO.2
main82671-20050i198508-198708
NO.3
82672COVER, JUNKTION BLOCK
main82672-20010i198508-198708
NO.1
main82672-20030i198508-198708
NO.1
main82672-20040i198508-198708
NO.2
main82672-20050i198508-198708
NO.2,*FRG
main82672-20070i198508-198708
NO.3,W/*DS
main82672-20080i198508-198708
NO.3
82823CAP, TERMINAL, NO.1
main82823-20030i198508-198708
STARTER
main82823-20040i198508-198607
ALTERNATOR
main82823-22050i198607-198708
ALTERNATOR
main82823-22060i198607-198708
ALTERNATOR
8401
9011906005
main90119-06005
9011906120
main90119-06120
9161160610
main91611-60610
9356755014
main93567-55014

17 parts on this diagram · 9 diagrams in section
