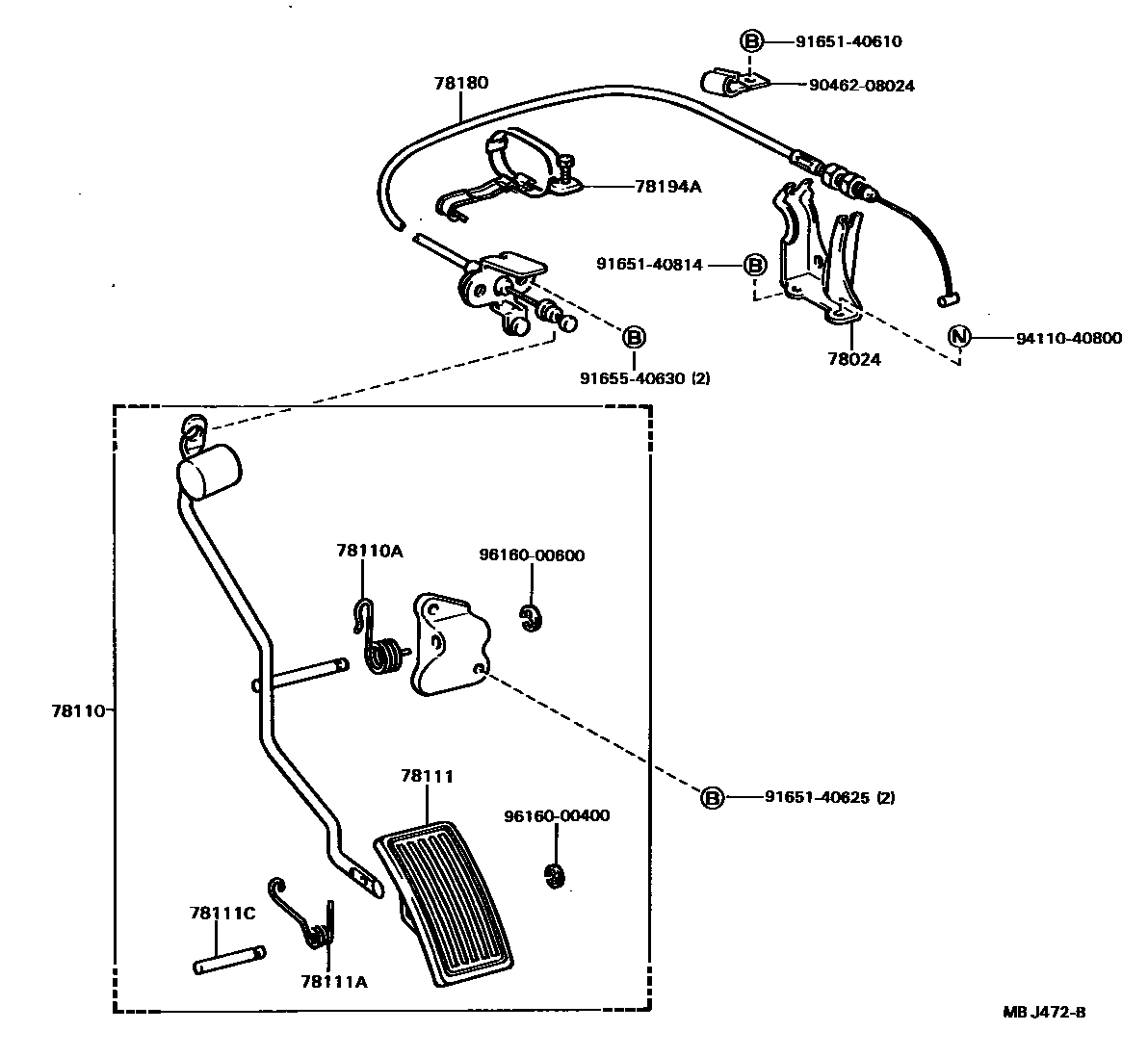

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20030iST162..5F..(EUG,SDZ)198508-198708

main78024-20070iST162..4FC198508-198708

main78184-12160iAT160..CBR198508-198708

main78184-12190iAT160..TWC198508-198708

78110ROD ASSY, ACCELERATOR PEDAL

main78120-20260iST162..RHD..5F198508-198708

main78120-20270iST162..RHD..4FC198508-198708

main78120-20280iAT160,ST162..LHD..5F198508-198708

main78120-20290iST162..LHD..4FC198508-198708

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iST162..RHD..4FC198508-198708

main90508-18054iST162..LHD..4FC198508-198708

main90508-26054iST162..RHD..5F198508-198708

main90508-26062iAT160,ST162..LHD..5F198508-198708

78111PEDAL, ACCELERATOR

main78111-20030iAT160,ST162198508-198708

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT160,ST162198508-198708

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT160,ST162198508-198708

78180WIRE ASSY, ACCELERATOR

main78180-20240iAT160..CBR198508-198708

L=1223

main78180-20350iAT160..CBR198508-198708

L=1090

main78180-20430iST162..RHD..4FC198508-198708

main78180-20470iST162..FRG198508-198708

main78180-20580iAT160..TWC198508-198708

main78180-20620iST162..RHD..5F198508-198708

main78180-20640iST162..LHD..5F..(EUG,SDZ)198508-198708

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-20040iAT160..CBR198508-198708

main78194-20060iST162..LHD198508-198708

9046208024

main90462-08024

9165140610

main91651-40610

9165140625

main91651-40625

9165140814

main91651-40814

9165540630

main91655-40630

9411040800

main94110-40800

9616000400

main96160-00400

9616000600

main96160-00600

16 parts on this diagram · 4 diagrams in section
