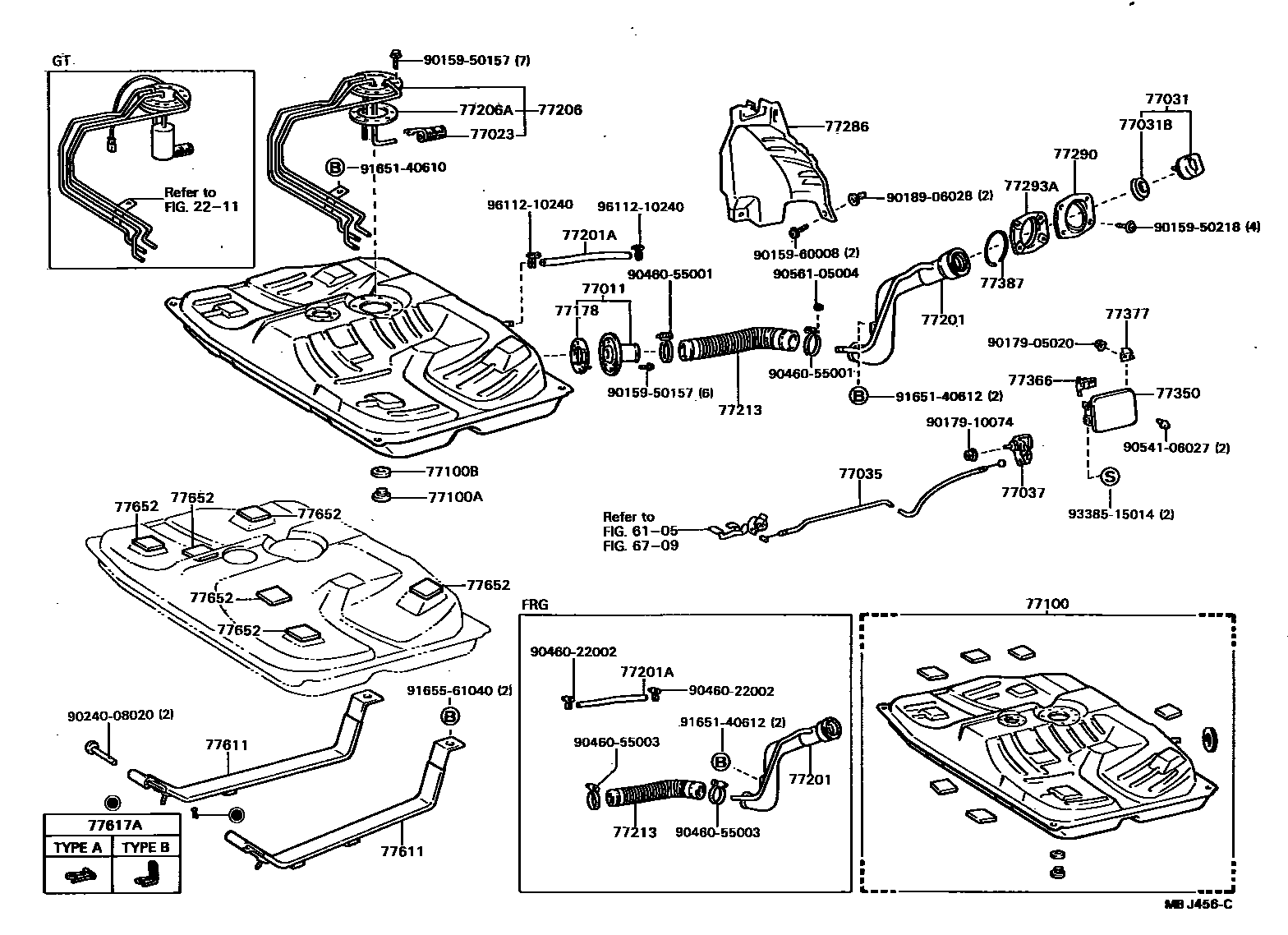

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20010iAT160,ST162198508-198609

sub77011-20020

main77011-20020iAT160,ST162198609-198708

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAT160..CBR198508-198708

77031CAP ASSY, FUEL TANK

main77310-12100iAT160,ST162..EUG,SDZ198508-198708

main77310-16010iST162..FRG198508-198708

sub77310-16011

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAT160,ST162..EUG,SDZ198508-198708

main77316-16010iST162..FRG198508-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20140iAT160,ST162..LHD198508-198708

sub77035-14090

main77035-20160iST162..RHD198508-198708

sub77035-20300

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iAT160,ST162198508-198708

sub77037-38010

77100TANK ASSY, FUEL

main77001-29205iAT160,ST162198508-198608

sub77001-29255

main77001-29255iAT160,ST162198608-198708

77100APLUG(FOR FUEL TANK)

main90341-20004iAT160,ST162198508-198708

77100BGASKET(FOR FUEL TANK)

main90430-20007iAT160,ST162198508-198708

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iAT160,ST162198508-198708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20160iAT160,ST162..EUG,SDZ198508-198608

sub77201-20210

main77201-20170iST162..FRG198508-198708

main77201-20210iAT160,ST162..EUG,SDZ198608-198708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22912iAT160,ST162198508-198604

L=220

sub90445-22024

main95311-13024iAT160,ST162198604-198708

*H,L=240

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-20040iAT160..CBR198508-198608

sub77017-20050

main77017-20050iAT160..CBR198608-198708

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-20020iAT160..CBR198508-198708

77213HOSE, FUEL TANK SUB INLET

main77213-20080iAT160,ST162198508-198708

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20100iAT160,ST162198508-198708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20030iAT160,ST162198508-198708

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20020iAT160,ST162198508-198708

77350LID ASSY, FUEL FILLER OPENING

main77350-20090iAT160,ST162198508-198708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20010iAT160,ST162198508-198708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iAT160,ST162198508-198708

77387RING, FUEL INLET BOX

main77391-16011iAT160,ST162198508-198708

77611BAND, FUEL TANK

main77601-20060iAT160,ST162198508-198610

RH

sub77601-20080

main77601-20080iAT160,ST162198610-198708

RH

main77602-20090iAT160,ST162198508-198610

LH

sub77602-20110

main77602-20110iAT160,ST162198610-198708

LH

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAT160,ST162198508-198708

TYPE B

main90468-14004iAT160,ST162198508-198708

TYPE A

77652CUSHION, FUEL TANK, NO.1

main77651-20050iAT160,ST162198508-198708

9015950157

main90159-50157

9015950218

main90159-50218

9015960008

main90159-60008

9017905020

main90179-05020

9017910074

main90179-10074

9018906028

main90189-06028

9024008020

main90240-08020

9046022002

main90460-22002

9046055001

main90460-55001

9046055003

main90460-55003

9054106027

main90541-06027

9056105004

main90561-05004

9165140610

main91651-40610

9165140612

main91651-40612

9165561040

main91655-61040

9338515014

main93385-15014

9611210240

main96112-10240

45 parts on this diagram · 4 diagrams in section
