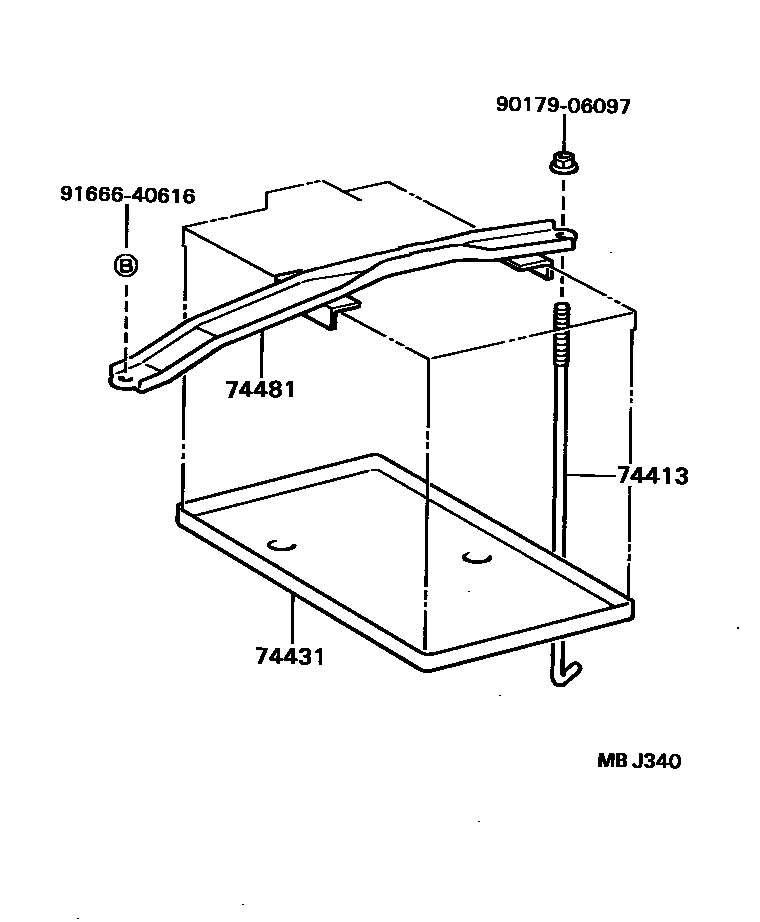

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-14010iAT160,ST162198508-198708

74431TRAY, BATTERY

main74431-14020iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

N40L

main74431-14030iAT160,ST162198508-198708

55D23L-MF

sub74431-52040

74481CLAMP, BATTERY HOLD DOWN

main74404-20170iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

N40L

main74404-20180iAT160,ST162198508-198708

55D23L-MF

9017906097

main90179-06097

9166640616

main91666-40616

5 parts on this diagram · 1 diagram in section
