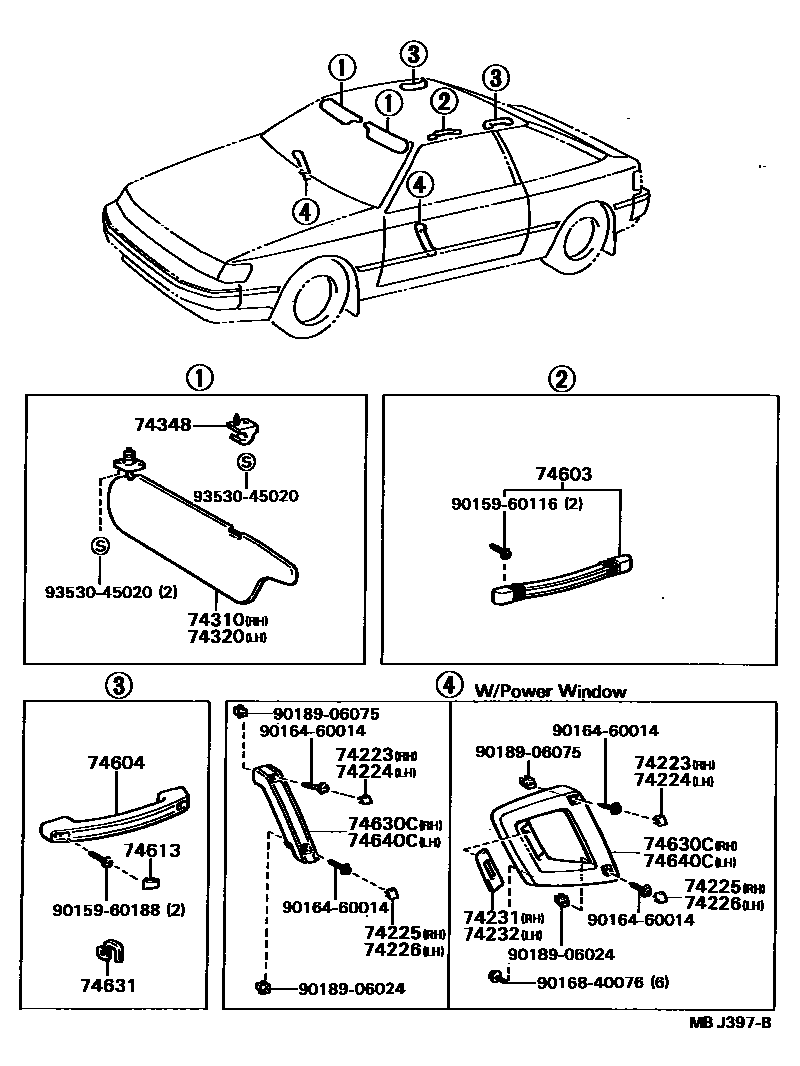

ARMREST & VISOR

74223CAP, DOOR ARMREST, RH

main74223-20030-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74223-20030

main74223-20030-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74223-20030

main74223-20030-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74223-20030

74224CAP, DOOR ARMREST, LH

main74224-20030-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74224-20030

main74224-20030-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74224-20030

main74224-20030-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74224-20030

74225CAP, DOOR ARMREST, REAR RH

main74225-20020-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74225-20020

main74225-20020-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74225-20020

74226CAP, DOOR ARMREST, REAR LH

main74225-20020-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74225-20020

main74225-20020-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74225-20020

main74225-20020-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74225-20020

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20140-03iST162..RHD198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74231-20140-04iST162..(CP,LB)..RHD198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74231-20140-06iST162..(CP,LB)..RHD198508-198708

W/*PW,BROWN,BROWN,TRIM4#

main74231-20150-03iST162..LHD198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74231-20150-04iST162..(CP,LB)..LHD198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74231-20150-06iST162..(CP,LB)..LHD198508-198708

W/*PW,BROWN,BROWN,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-20140-03iST162..RHD198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74232-20140-04iST162..(CP,LB)..RHD198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74232-20140-06iST162..(CP,LB)..RHD198508-198708

W/*PW,BROWN,BROWN,TRIM4#

main74232-20150-03iST162..LHD198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74232-20150-04iST162..(CP,LB)..LHD198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74232-20150-06iST162..(CP,LB)..LHD198508-198708

W/*PW,BROWN,BROWN,TRIM4#

74310VISOR ASSY, RH

main74310-20310-03iAT160198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74310-20310

main74310-20310-04iAT160198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74310-20310

main74310-20310-06iAT160198508-198708

BROWN,BROWN,TRIM4#

sub74310-20310

main74310-20480-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74310-20480-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main74310-20480-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

main74310-20490-03iST162..LHD..(EUG,FRG)198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74310-20490-04iST162..(CP,LB)..LHD..(EUG,FRG)198508-198708

BLUE,DEEP BLUE,TRIM8#

main74310-20490-06iST162..(CP,LB)..LHD..(EUG,FRG)198508-198708

BROWN,BROWN,TRIM4#

main74310-20520-03iST162..SDZ198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74310-20480

sub74310-20520

main74310-20520-04iST162..SDZ198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74310-20480

sub74310-20520

main74310-20520-06iST162..SDZ198508-198708

BROWN,BROWN,TRIM4#

sub74310-20480

sub74310-20520

74320VISOR ASSY, LH

main74320-20410-03iAT160198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74320-20410

main74320-20410-04iAT160198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74320-20410

main74320-20410-06iAT160198508-198708

BROWN,BROWN,TRIM4#

sub74320-20410

main74320-20450-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74320-20450-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main74320-20450-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

main74320-20460-03iST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main74320-20460-04iST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main74320-20460-06iST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

74348HOLDER, VISOR

main74348-20020-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74348-12020

sub74348-20020

main74348-20020-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74348-12020

sub74348-20020

main74348-20020-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74348-12020

sub74348-20020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-14030-16iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74610-14030

sub74610-12050

main74610-14030-24iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74610-14030

sub74610-12050

main74610-14030-33iAT160,ST162..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74610-14030

sub74610-12050

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-16010-04iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,BLUE,DEEP BLUE,TRIM8#

sub74603-16010

sub74610-16010

sub74610-12030

main74603-16010-06iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,BROWN,BROWN,TRIM4#

sub74603-16010

sub74610-16010

sub74610-12030

main74603-16010-13iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,GRAY,SHADOW GRAY,TRIM1#

sub74603-16010

sub74610-16010

sub74610-12030

main74610-10020-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74610-10020

main74610-10020-14iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74610-10020

main74610-10020-33iAT160,ST162..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74610-10020

74613PLUG, ASSIST GRIP

main74617-14010-10iAT160,ST162..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub74617-14010

main74617-14010-26iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74617-14010

main74617-14010-34iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74617-14010

main74617-16010-24iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,BLUE,DEEP BLUE,TRIM8#

sub74617-16010

main74617-16010-26iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,BROWN,BROWN,TRIM4#

sub74617-16010

main74617-16010-53iAT160,ST162..(CP,LB)..(EUG,FRG)198508-198708

W/*IPM,GRAY,LIGHT GRAY,TRIM1#

sub74617-16010

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20010-03iAT160,ST162..CP,LB198508-198708

W/O *PW,GRAY,SHADOW GRAY,TRIM1#

main74630-20010-04iAT160,ST162..CP,LB198508-198708

W/O *PW,BLUE,DEEP BLUE,TRIM8#

main74630-20010-06iAT160,ST162..CP,LB198508-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74630-20020-03iST162198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74630-20020-04iST162..CP,LB198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74630-20020-06iST162..CP,LB198508-198708

W/*PW,BROWN,BROWN,TRIM4#

74631HOOK, COAT, A

main74631-14010-10iAT160,ST162..CP,LB198508-198708

GRAY,LIGHT GRAY,TRIM1#

sub74631-14010

sub74631-20040

main74631-14010-26iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-34iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub74631-14010

sub74631-20040

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20010-03iAT160,ST162..CP,LB198508-198708

W/O *PW,GRAY,SHADOW GRAY,TRIM1#

main74640-20010-04iAT160,ST162..CP,LB198508-198708

W/O *PW,BLUE,DEEP BLUE,TRIM8#

main74640-20010-06iAT160,ST162..CP,LB198508-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74640-20020-03iST162198508-198708

W/*PW,GRAY,SHADOW GRAY,TRIM1#

main74640-20020-04iST162..CP,LB198508-198708

W/*PW,BLUE,DEEP BLUE,TRIM8#

main74640-20020-06iST162..CP,LB198508-198708

W/*PW,BROWN,BROWN,TRIM4#

9015960116

main90159-60116

9015960188

main90159-60188

9016460014

main90164-60014

9016840076

main90168-40076

9018906024

main90189-06024

9018906075

main90189-06075

9353045020

main93530-45020

22 parts on this diagram · 1 diagram in section
