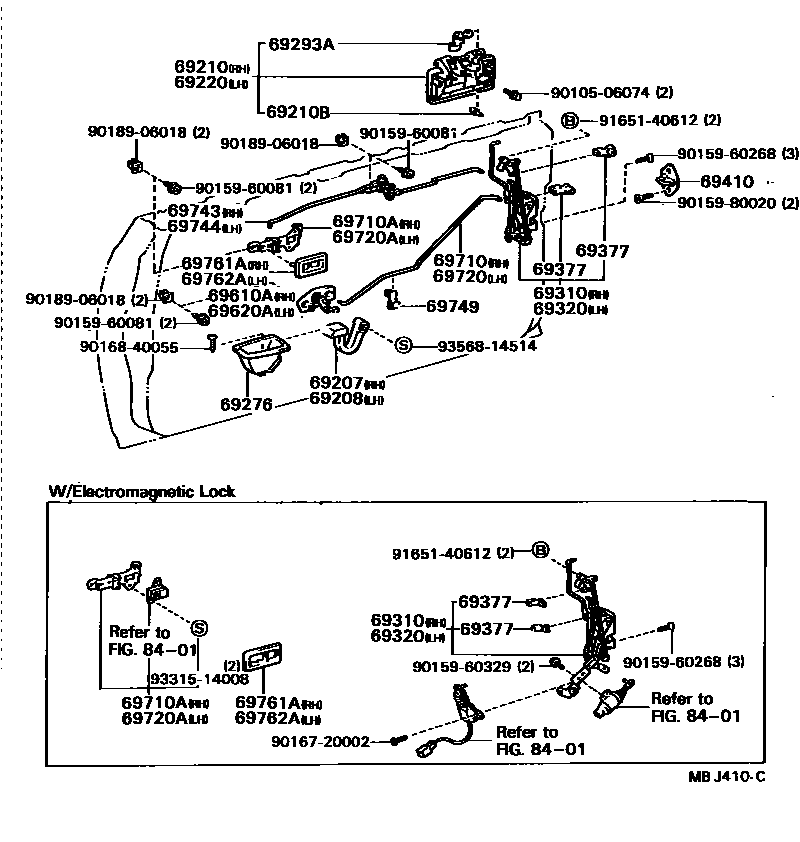

FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W/O *EL
W/*EL
69320LOCK ASSY, FRONT DOOR, LH
W/O *EL
W/*EL
69377SNAP, FRONT DOOR LOCK CONTROL ROD
OPEN LINK,LH
LOCKING LINK,RH
LOCKING LINK,LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69610ACONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
W/*EL,GRAY,SHADOW GRAY,TRIM1#
W/*EL,BLUE,DEEP BLUE,TRIM8#
W/*EL,BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
W/*EL,GRAY,SHADOW GRAY,TRIM1#
W/*EL,BLUE,DEEP BLUE,TRIM8#
W/*EL,BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
8401
9010506074
main90105-06074
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980020
main90159-80020
9016720002
main90167-20002
9016840055
main90168-40055
9018906018
main90189-06018
9165140612
main91651-40612
9331514008
main93315-14008
9356814514
main93568-14514
34 parts on this diagram · 1 diagram in section
