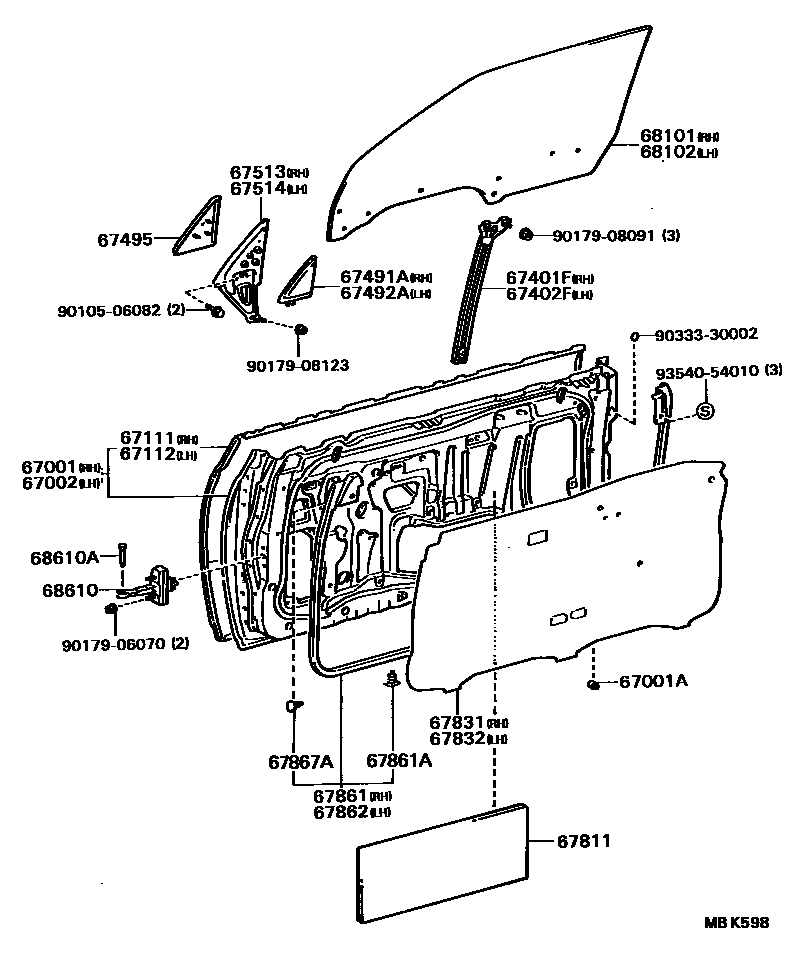

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20650iAT160,ST162..CP,LB198508-198708

sub67001-20660

main67001-20660iST162..CVT198610-198708

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iAT160,ST162198508-198708

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20620iAT160,ST162..CP,LB198508-198708

sub67002-20621

main67002-20630iST162..CVT198610-198708

sub67002-20631

67111PANEL, FRONT DOOR, OUTER RH

main67111-20160iAT160,ST162198508-198708

67112PANEL, FRONT DOOR, OUTER LH

main67112-20180iAT160,ST162198508-198708

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20160iAT160,ST162198508-198708

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20150iAT160,ST162198508-198708

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20120iAT160,ST162198508-198512

main67491-20121iAT160,ST162198512-198708

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20140iAT160,ST162198508-198512

main67492-20141iAT160,ST162198512-198708

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-20060iAT160198508-198708

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-20050iAT160,ST162198508-198512

sub67513-20051

main67513-20051iAT160,ST162198512-198708

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-20050iAT160,ST162198508-198512

sub67514-20051

main67514-20051iAT160,ST162198512-198708

67811PAD, FRONT DOOR SILENCER

main67812-12010iAT160,ST162..CP,LB198605-198708

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20300iST162..RHD198508-198605

sub67831-20310

main67831-20310iAT160,ST162..LHD198508-198708

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-20130iST162..RHD198508-198605

sub67832-20140

main67832-20140iAT160,ST162..LHD198508-198708

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20250iAT160,ST162198508-198708

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAT160,ST162198508-198708

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20250iAT160,ST162198508-198708

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-30020iAT160,ST162198508-198708

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20400iAT160,ST162198508-198708

*TT,T=5.0,*TT,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20320iAT160,ST162198508-198708

*TT,T=5.0,*TT,T=5.0

68610CHECK ASSY, FRONT DOOR

main68610-20050iAT160,ST162198508-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-90K00iAT160,ST162198508-198708

9010506082

main90105-06082

9017906070

main90179-06070

9017908091

main90179-08091

9017908123

main90179-08123

9033330002

main90333-30002

9354054010

main93540-54010

29 parts on this diagram · 2 diagrams in section
