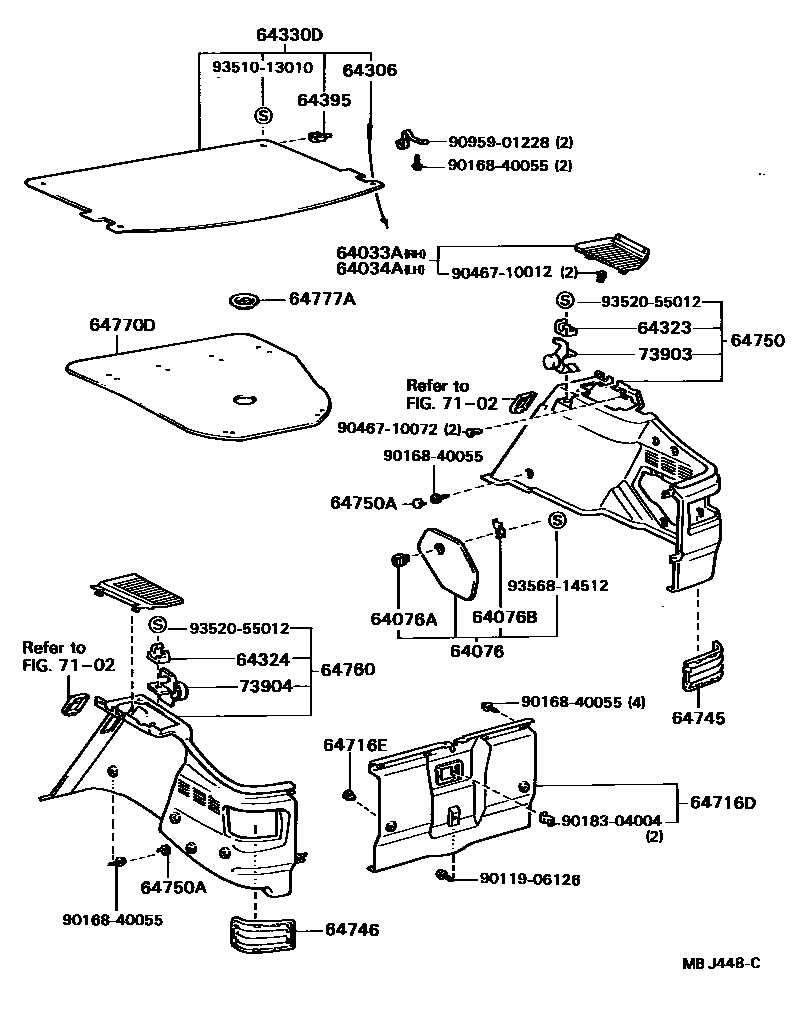

DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
W/O 3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1#
sub64033-20070
W/O 3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8#
sub64033-20070
W/O 3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4#
sub64033-20070
W/O 3-POINTBELT,W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/O 3-POINTBELT,W/SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/O 3POINTBELT,W/SPEAKER,BROWN,BROWN,TRIM4#
W/3-POINTBELT,W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#
sub64033-20090
W/3-POINTBELT,W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#
sub64033-20090
W/3POINTBELT,W/O SPEAKER,BROWN,BROWN,TRIM4#
sub64033-20090
W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4#
W/SPEAKER,BROWN,BROWN,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
W/O 3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1#
sub64034-20070
W/O 3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8#
sub64034-20070
W/O 3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4#
sub64034-20070
W/O 3-POINTBELT,W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/O 3-POINTBELT,W/SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/O 3POINTBELT,W/SPEAKER,BROWN,BROWN,TRIM4#
W/3-POINTBELT,W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#
sub64034-20090
W/3-POINTBELT,W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#
sub64034-20090
W/3POINTBELT,W/O SPEAKER,BROWN,BROWN,TRIM4#
sub64034-20090
W/3-POINT BELT,SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#
W/3-POINT BELT,SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/SPEAKER,BLUE,DEEP BLUE,TRIM8#
W/3-POINT BELT,SPEAKER,BROWN,BROWN,TRIM4#
W/SPEAKER,BROWN,BROWN,TRIM4#
64076COVER, DECK TRIM SIDE JACK
64076AKNOB, DECK TRIM SIDE JACK COVER
64076BSTOPPER, DECK TRIM SIDE JACK COVER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64330DPANEL ASSY, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64716DCOVER, DECK TRIM, REAR
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64750PANEL ASSY, DECK SIDE TRIM, RH
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
64760PANEL ASSY, DECK SIDE TRIM, LH
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
185/70HR13
7102
73903BRACKET SUB-ASSY, REAR SHELF, RH
73904BRACKET SUB-ASSY, REAR SHELF, LH
9011906126
main90119-06126
9016840055
main90168-40055
9018304004
main90183-04004
9046710012
main90467-10012
9046710072
main90467-10072
9095901228
main90959-01228
9351013010
main93510-13010
9352055012
main93520-55012
9356814512
main93568-14512
31 parts on this diagram · 1 diagram in section
