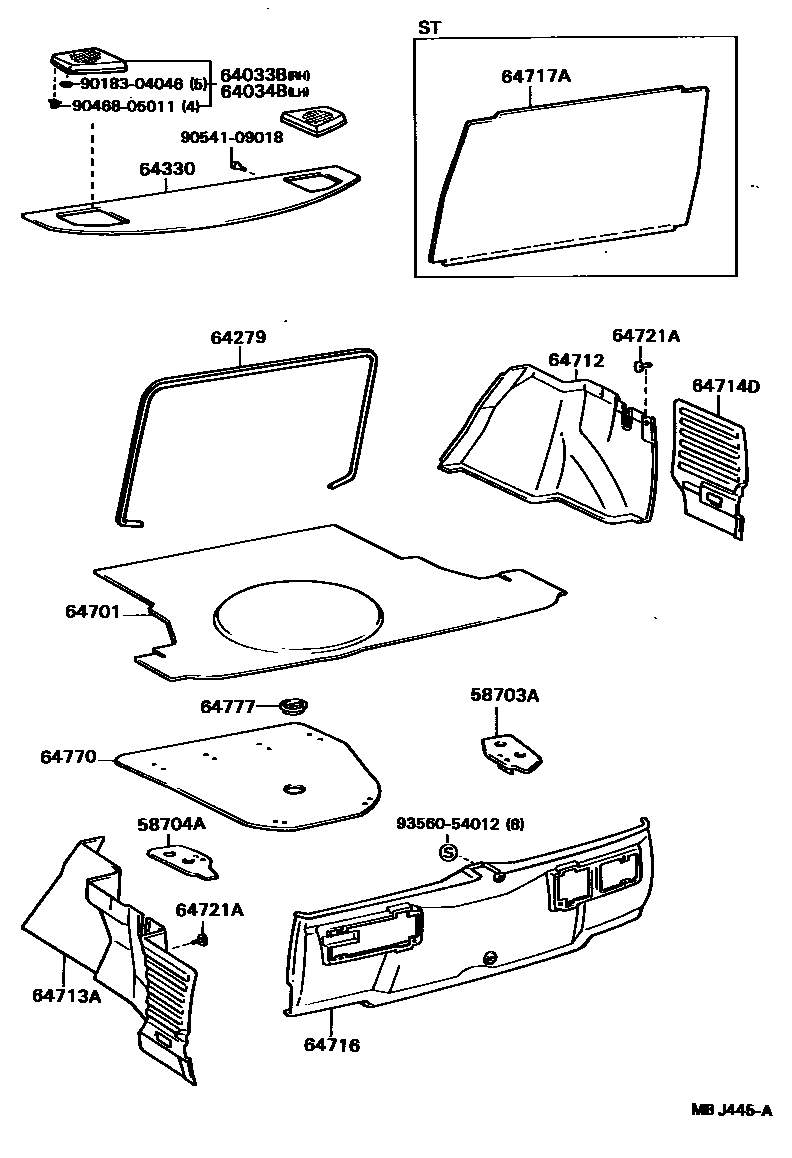

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20080iAT160,ST162..CP,CVT198508-198708

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20040iAT160,ST162..CP,CVT198508-198708

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20020-03iST162..CP..RHD;ST162..CP..SDZ198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64033-20020-04iAT160,ST162..CP198508-198708

BLUE,DEEP BLUE,TRIM8#

main64033-20020-06iAT160,ST162..CP198508-198708

BROWN,BROWN,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20020-03iST162..CP..RHD;ST162..CP..SDZ198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64034-20020-04iAT160,ST162..CP198508-198708

BLUE,DEEP BLUE,TRIM8#

main64034-20020-06iAT160,ST162..CP198508-198708

BROWN,BROWN,TRIM4#

64279PROTECTOR, ROOM PARTITION

main64279-20030-03iAT160,ST162..CP..TWC198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub64279-20030

main64279-20030-04iAT160,ST162..CP..TWC198508-198708

BLUE,DEEP BLUE,TRIM8#

sub64279-20030

main64279-20030-06iAT160,ST162..CP..TWC198508-198708

BROWN,BROWN,TRIM4#

sub64279-20030

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20660-03iAT160..CP..CBR198608-198708

W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#

sub64330-20660

main64330-20660-04iAT160..CP..CBR198608-198708

W/SPEAKER,BLUE,DEEP BLUE,TRIM8#

sub64330-20660

main64330-20660-06iAT160..CP..CBR198608-198708

W/SPEAKER,BROWN,BROWN,TRIM4#

sub64330-20660

main64330-20670-03iAT160,ST162..CP..TWC198508-198708

W/SPEAKER,GRAY,SHADOW GRAY,TRIM1#

sub64330-20670

main64330-20670-04iAT160,ST162..CP..TWC198508-198708

W/SPEAKER,BLUE,DEEP BLUE,TRIM8#

sub64330-20670

main64330-20670-06iAT160,ST162..CP..TWC198508-198708

W/SPEAKER,BROWN,BROWN,TRIM4#

sub64330-20670

main64330-20770-03iAT160,ST162..CP..TWC198508-198708

W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#

sub64330-20770

main64330-20770-04iAT160,ST162..CP..TWC198508-198708

W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#

sub64330-20770

main64330-20770-06iAT160,ST162..CP..TWC198508-198708

W/O SPEAKER,BROWN,BROWN,TRIM4#

sub64330-20770

main64330-20790-03iAT160..CP..CBR198508-198708

W/O SPEAKER,GRAY,SHADOW GRAY,TRIM1#

sub64330-20790

main64330-20790-04iAT160..CP..CBR198508-198708

W/O SPEAKER,BLUE,DEEP BLUE,TRIM8#

sub64330-20790

main64330-20790-06iAT160..CP..CBR198508-198708

W/O SPEAKER,BROWN,BROWN,TRIM4#

sub64330-20790

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20310iAT160..CP..CBR198508-198708

main64711-20360iAT160,ST162..(CP,CVT)..TWC198508-198708

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20110iAT160..CP..CBR198508-198608

main64712-20120iAT160,ST162..CP..TWC198508-198708

64713ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64072-20090iAT160..CP..CBR198508-198608

main64072-20100iAT160,ST162..CP,CVT198508-198708

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20200iAT160..CP..CBR198508-198608

main64714-20210iAT160,ST162..CP..TWC198508-198708

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20150iAT160..CP..CBR198508-198708

sub64716-20170

main64716-20170iAT160,ST162..(CP,CVT)..TWC198508-198708

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20130iAT160..CP..CBR198508-198708

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-01iAT160,ST162..CP,CVT198508-198708

BLACK,BLACK

sub90467-07042

sub90467-06175

64770COVER ASSY, SPARE WHEEL

main64770-20080iAT160..CP..CBR198508-198708

main64770-20090iAT160,ST162..(CP,CVT)..TWC198508-198708

main64770-20090iAT160..CP..CBR198608-198708

185/70HR13

64777CLAMP, SPARE WHEEL COVER

main64777-32020iAT160..CP..CBR198508-198612

sub64777-32030

main64777-32030iAT160..CP..CBR198612-198708

9018304046

main90183-04046

9046805011

main90468-05011

9054109018

main90541-09018

9356054012

main93560-54012

19 parts on this diagram · 1 diagram in section
