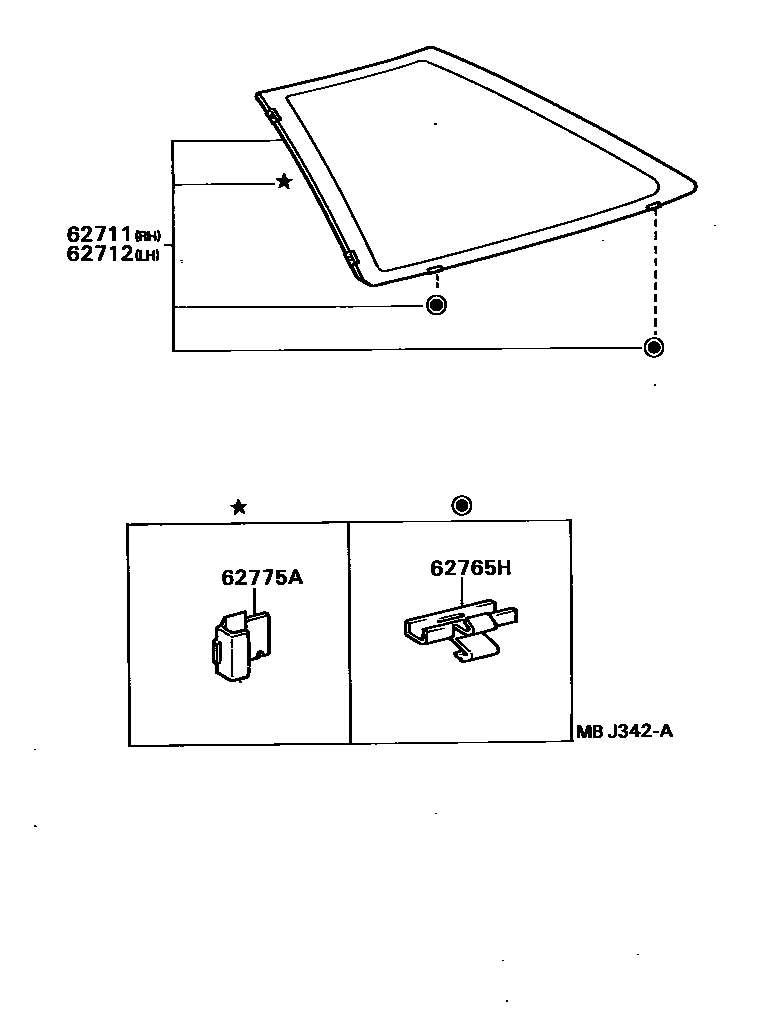

QUARTER WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62710-20070iAT160,ST162..CP198508-198708

*TT,T=3.5,*TT,T=3.5

main62710-20080iAT160,ST162..LB198508-198708

*TT,T=3.5,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62720-20070iAT160,ST162..CP198508-198708

*TT,T=3.5,*TT,T=3.5

main62720-20080iAT160,ST162..LB198508-198708

*TT,T=3.5,*TT,T=3.5

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-20040iAT160,ST162..CP,LB198508-198708

62775ACLIP, QUARTER WINDOW

main62775-20010iAT160,ST162..CP,LB198508-198708

4 parts on this diagram · 2 diagrams in section
