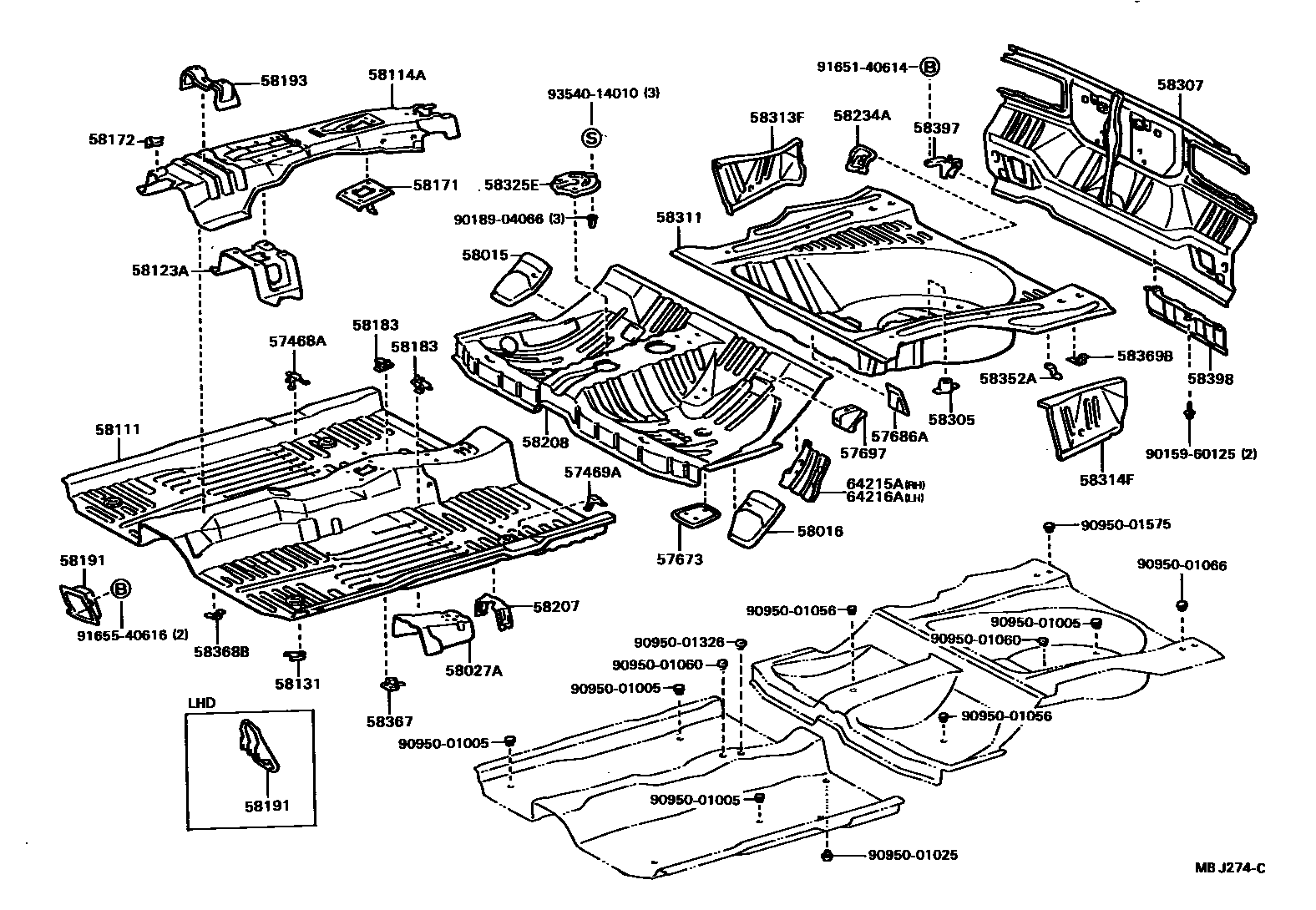

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
sub57673-20060
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57697RETAINER, REAR SEAT CUSHION
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
RR LICENCE=SIDE LIGHTING
RR LICENCE=LOWER LIGHTING
RR LICENCE=SIDE LIGHTING
RR LICENCE=LOWER LIGHTING
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58352ABRACKET, REAR FLOOR STAY
58367BRACKET, FUEL TUBE CLAMP
58368BBRACKET, FUEL TUBE, NO.2
58369BBRACKET, FUEL TUBE, NO.3
58397COVER, LOWER BACK, OUTER RH
58398COVER, LOWER BACK, OUTER LH
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
9015960125
main90159-60125
9018904066
main90189-04066
9095001005
main90950-01005
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001066
main90950-01066
9095001326
main90950-01326
9095001575
main90950-01575
9165140614
main91651-40614
9165540616
main91655-40616
9354014010
main93540-14010
46 parts on this diagram · 2 diagrams in section
