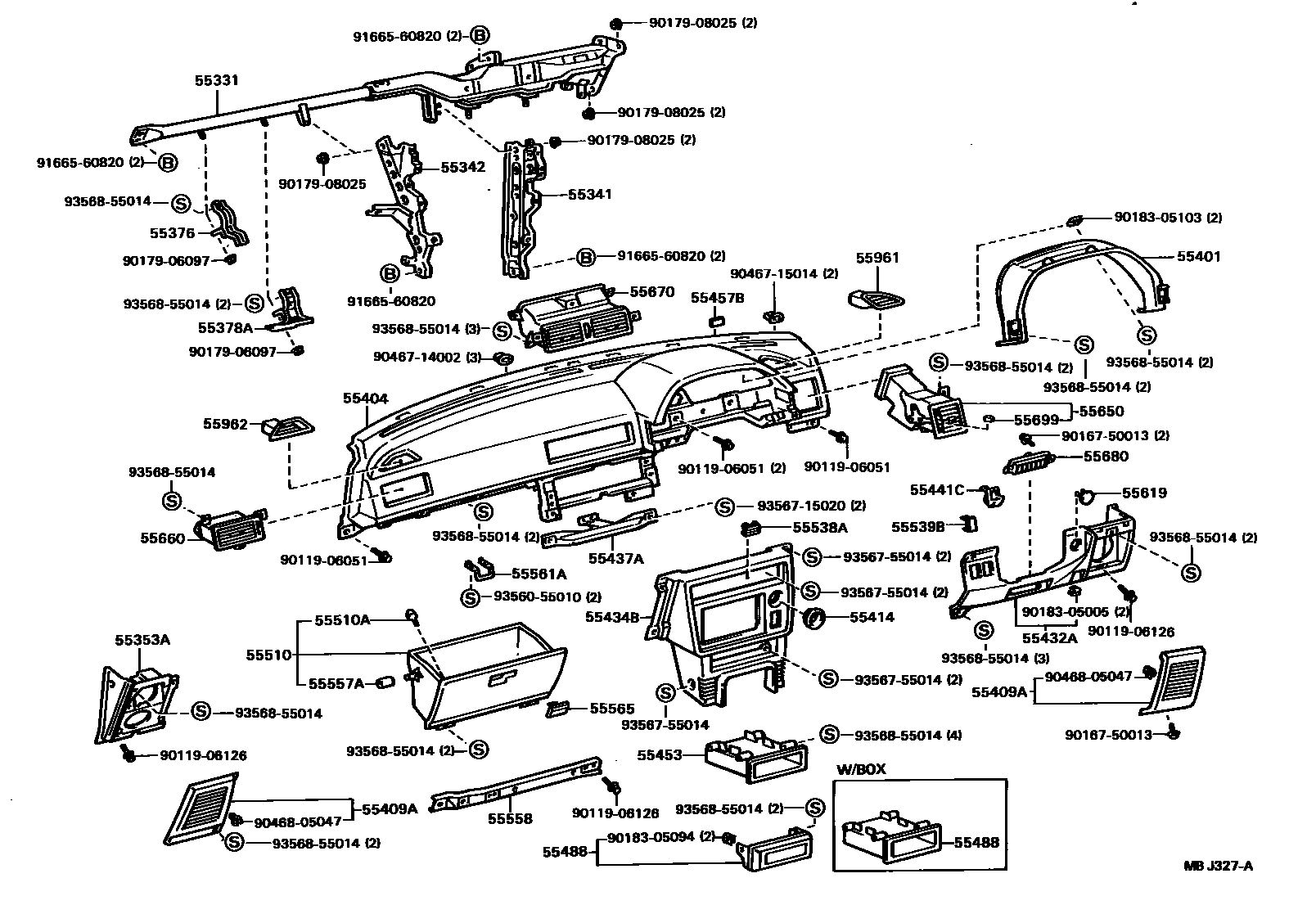

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20070iST162..RHD198508-198708

main55330-20080iAT160,ST162..LHD198508-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-20060iST162..RHD198508-198708

main55306-20070iAT160,ST162..LHD198508-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-20060iST162..RHD198508-198708

main55307-20070iAT160,ST162..LHD198508-198708

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20050-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55353-20050

main55353-20050-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55353-20050

main55353-20050-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

sub55353-20050

main55353-20060-03iAT160,ST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55353-20060

main55353-20060-04iAT160,ST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55353-20060

main55353-20060-06iAT160,ST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

sub55353-20060

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20030iAT160,ST162198508-198708

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20080iST162..RHD198508-198708

main55378-20090iAT160,ST162..LHD198508-198708

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-20200iST162..RHD198508-198708

main55404-20210iAT160,ST162..LHD198508-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20470-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55401-20470-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main55401-20470-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

main55401-20480-03iAT160,ST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55401-20480-04iAT160,ST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main55401-20480-06iAT160,ST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-20090-03iST162..RHD198508-198708

RH,GRAY,SHADOW GRAY,TRIM1#

sub55472-20090

main55472-20090-04iST162..(CP,LB)..RHD198508-198708

RH,BLUE,DEEP BLUE,TRIM8#

sub55472-20090

main55472-20090-06iST162..(CP,LB)..RHD198508-198708

RH,BROWN,BROWN,TRIM4#

sub55472-20090

main55472-20100-03iAT160,ST162..LHD198508-198708

RH,GRAY,SHADOW GRAY,TRIM1#

sub55472-20100

main55472-20100-04iAT160,ST162..(CP,LB)..LHD198508-198708

RH,BLUE,DEEP BLUE,TRIM8#

sub55472-20100

main55472-20100-06iAT160,ST162..(CP,LB)..LHD198508-198708

RH,BROWN,BROWN,TRIM4#

sub55472-20100

main55473-20080-03iST162..RHD198508-198708

LH,GRAY,SHADOW GRAY,TRIM1#

sub55473-20080

main55473-20080-04iST162..(CP,LB)..RHD198508-198708

LH,BLUE,DEEP BLUE,TRIM8#

sub55473-20080

main55473-20080-06iST162..(CP,LB)..RHD198508-198708

LH,BROWN,BROWN,TRIM4#

sub55473-20080

main55473-20090-03iAT160,ST162..LHD198508-198708

LH,GRAY,SHADOW GRAY,TRIM1#

sub55473-20090

main55473-20090-04iAT160,ST162..(CP,LB)..LHD198508-198708

LH,BLUE,DEEP BLUE,TRIM8#

sub55473-20090

main55473-20090-06iAT160,ST162..(CP,LB)..LHD198508-198708

LH,BROWN,BROWN,TRIM4#

sub55473-20090

55414BEZEL, CIGAR LIGHTER HOLE

main55477-20060iAT160,ST162198508-198708

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20170-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55432-20170-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main55432-20170-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20050-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55434-20050-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

main55434-20050-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

main55434-20070-03iAT160,ST162..(CP,LB)..LHD..(EUG,FRG)198508-198708

W/O RADIO,GRAY,SHADOW GRAY,TRIM1#

main55434-20070-04iAT160,ST162..(CP,LB)..LHD..(EUG,FRG)198508-198708

W/O RADIO,BLUE,DEEP BLUE,TRIM8#

main55434-20070-06iAT160,ST162..(CP,LB)..LHD..(EUG,FRG)198508-198708

W/O RADIO,BROWN,BROWN,TRIM4#

main55434-20080-03iST162..SDZ198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55434-20080-03iST162..SDZ198508-198708

W/RADIO,GRAY,SHADOW GRAY,TRIM1#

main55434-20080-04iST162..SDZ198508-198708

BLUE,DEEP BLUE,TRIM8#

main55434-20080-04iST162..SDZ198508-198708

W/RADIO,BLUE,DEEP BLUE,TRIM8#

main55434-20080-06iST162..SDZ198508-198708

BROWN,BROWN,TRIM4#

main55434-20080-06iST162..SDZ198508-198708

W/RADIO,BROWN,BROWN,TRIM4#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-20040iST162..RHD198508-198708

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-03iAT160,ST162198508-198708

GRAY,GRAY,TRIM1#

sub55441-20140

main55441-20140-14iAT160,ST162198508-198610

BLUE,BLUE,TRIM8#

sub55441-20140

main55441-20140-16iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub55441-20140

main55441-20140-24iAT160,ST162..CP,LB198610-198708

BLUE,DEEP BLUE,TRIM8#

sub55441-20140

55453COVER, RADIO TUNER OPENING

main55521-16010iST162..SDZ;ST162..(CP,LB)..RHD198508-198708

sub55521-16030

main55522-20060iAT160,ST162..(CP,LB)..LHD198508-198708

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iAT160,ST162198508-198708

55488COVER, STEREO OPENING

main55521-16010iAT160,ST162..CP,LB198508-198708

W/BOX

sub55521-16030

main55521-20120iAT160,ST162198508-198708

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20110-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55550-20111

main55550-20110-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55550-20111

main55550-20110-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub55550-20111

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT160,ST162198508-198708

55538ACOVER, COOLER SWITCH HOLE

main55538-20040iST162..RHD198508-198608

sub55538-20050

main55538-20050iST162..RHD198608-198708

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20030-03iAT160,ST162198508-198708

GRAY,GRAY,TRIM1#

sub55539-32010

sub55539-20030

main55539-20030-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55539-32010

sub55539-20030

main55539-20030-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-20030

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iAT160,ST162198508-198708

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20060iST162..RHD198508-198708

main55558-20070iAT160,ST162..LHD198508-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-20050iAT160,ST162198508-198708

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55565-20040

main55565-20040-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55565-20040

main55565-20040-06iAT160,ST162..CP,LB198508-198708

BROWN,SABLE,TRIM4#

sub55565-20040

55619COVER, SWITCH HOLE

main55619-14010-16iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub55619-14010

main55619-14010-24iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55619-14010

main55619-14010-33iAT160,ST162..CP,LB198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55619-14010

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20120-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55650-20120

main55650-20120-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55650-20120

main55650-20120-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

sub55650-20120

main55650-20130-03iAT160,ST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55650-20130

main55650-20130-04iAT160,ST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55650-20130

main55650-20130-06iAT160,ST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

sub55650-20130

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20060-03iST162..RHD198508-198608

GRAY,SHADOW GRAY,TRIM1#

sub55660-20061

main55660-20060-04iST162..RHD198508-198608

BLUE,DEEP BLUE,TRIM8#

sub55660-20061

main55660-20060-06iST162..RHD198508-198608

BROWN,BROWN,TRIM4#

sub55660-20061

main55660-20061-03iST162..RHD198608-198708

GRAY,SHADOW GRAY,TRIM1#

sub55660-20061

main55660-20061-04iST162..(CP,LB)..RHD198608-198708

BLUE,DEEP BLUE,TRIM8#

sub55660-20061

main55660-20061-06iST162..(CP,LB)..RHD198608-198708

BROWN,BROWN,TRIM4#

sub55660-20061

main55660-20070-03iAT160,ST162..LHD198508-198608

GRAY,SHADOW GRAY,TRIM1#

sub55660-20071

main55660-20070-04iAT160,ST162..LHD198508-198608

BLUE,DEEP BLUE,TRIM8#

sub55660-20071

main55660-20070-06iAT160,ST162..LHD198508-198608

BROWN,BROWN,TRIM4#

sub55660-20071

main55660-20100-03iAT160,ST162..LHD198608-198708

GRAY,SHADOW GRAY,TRIM1#

sub55660-20100

main55660-20100-04iAT160,ST162..(CP,LB)..LHD198608-198708

BLUE,DEEP BLUE,TRIM8#

sub55660-20100

main55660-20100-06iAT160,ST162..(CP,LB)..LHD198608-198708

BROWN,BROWN,TRIM4#

sub55660-20100

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20060-03iAT160,ST162198508-198608

GRAY,SHADOW GRAY,TRIM1#

sub55670-20061

main55670-20060-04iAT160,ST162198508-198608

BLUE,DEEP BLUE,TRIM8#

sub55670-20061

main55670-20060-06iAT160,ST162198508-198608

BROWN,BROWN,TRIM4#

sub55670-20061

main55670-20061-03iAT160,ST162198608-198708

GRAY,SHADOW GRAY,TRIM1#

sub55670-20061

main55670-20061-04iAT160,ST162..CP,LB198608-198708

BLUE,DEEP BLUE,TRIM8#

sub55670-20061

main55670-20061-06iAT160,ST162..CP,LB198608-198708

BROWN,BROWN,TRIM4#

sub55670-20061

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iST162..EUG,FRG198508-198708

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55905-20230-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55905-20230

main55905-20230-04iAT160,ST162..CP,LB198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55905-20230

main55905-20230-06iAT160,ST162..CP,LB198508-198708

BROWN,BROWN,TRIM4#

sub55905-20230

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20100-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55961-20100

main55961-20100-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55961-20100

main55961-20100-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

sub55961-20100

main55962-20100-03iAT160,ST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55962-20100

main55962-20100-04iAT160,ST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55962-20100

main55962-20100-06iAT160,ST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

sub55962-20100

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-20120-03iAT160,ST162..LHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55961-20120

main55961-20120-04iAT160,ST162..(CP,LB)..LHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55961-20120

main55961-20120-06iAT160,ST162..(CP,LB)..LHD198508-198708

BROWN,BROWN,TRIM4#

sub55961-20120

main55962-20110-03iST162..RHD198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub55962-20110

main55962-20110-04iST162..(CP,LB)..RHD198508-198708

BLUE,DEEP BLUE,TRIM8#

sub55962-20110

main55962-20110-06iST162..(CP,LB)..RHD198508-198708

BROWN,BROWN,TRIM4#

sub55962-20110

9011906051

main90119-06051

9011906126

main90119-06126

9016750013

main90167-50013

9017906097

main90179-06097

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9046715014

main90467-15014

9046805047

main90468-05047

9166560820

main91665-60820

9356055010

main93560-55010

9356715020

main93567-15020

9356755014

main93567-55014

9356855014

main93568-55014

49 parts on this diagram · 2 diagrams in section
