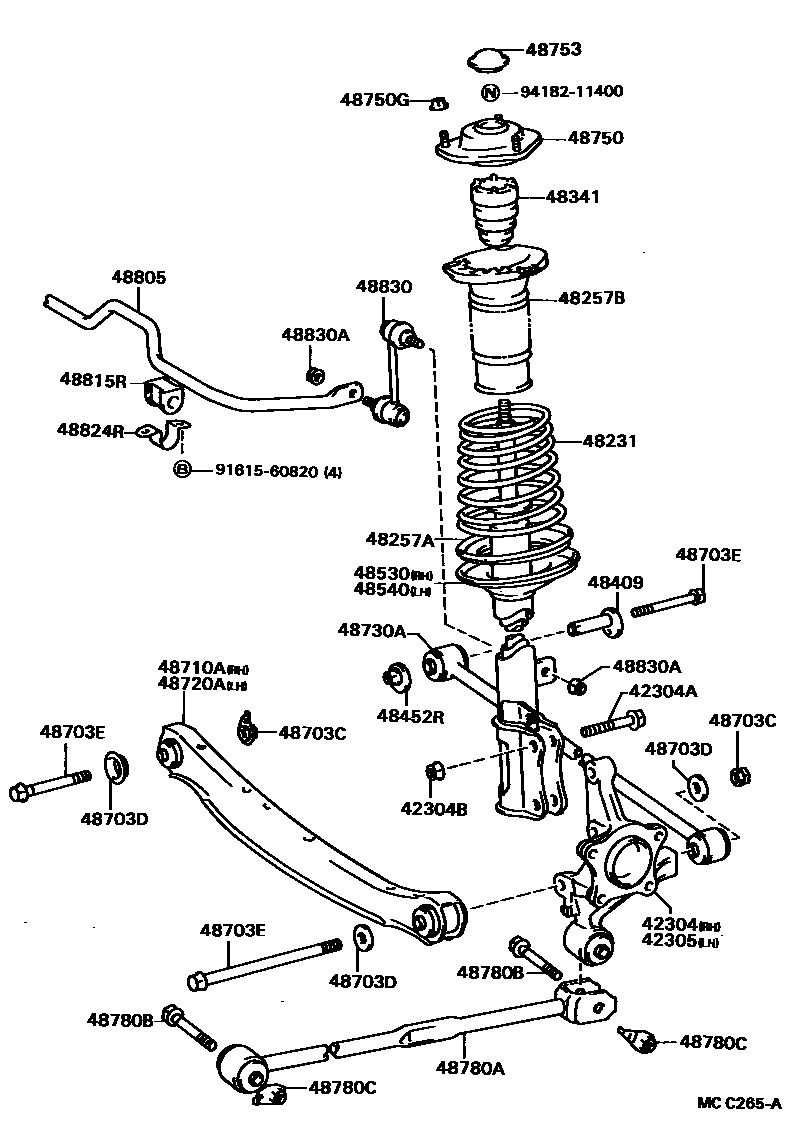

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20010iAT160198508-198708

main42304-20020iST162198508-198708

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12042×4iAT160,ST162198508-198708

sub90105-12263

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025×4iAT160,ST162198508-198708

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20010iAT160198508-198708

main42305-20020iST162198508-198708

48231SPRING, COIL, REAR

main48231-20190iAT160..CP..CBR198508-198708

RH

sub48231-20200

main48231-20210×2iAT160..LB..CBR198508-198708

main48231-20440iST162..CVT,LB198508-198708

LH

sub48231-2B201

main48231-20490×2iAT160..CP..TWC198508-198708

sub48231-2B640

main48231-20580×2iAT160..LB..TWC198508-198708

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010×2iAT160,ST162198508-198708

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-32030×2iAT160,ST162198508-198708

48341BUMPER, REAR SPRING

main48341-20090×2iAT160,ST162198508-198708

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-20020×2iAT160,ST162198508-198708

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32010×2iAT160,ST162198508-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20130iAT160,ST162198508-198708

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20130iAT160,ST162198508-198708

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12049×2iAT160,ST162198508-198608

BODY SIDE

main90179-12063×2iAT160,ST162198608-198708

BODY SIDE

main90179-14019×2iAT160,ST162198508-198708

CARRIER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90201-14017×4iAT160,ST162198508-198708

CARRIER SIDE

main90209-13008×2iAT160,ST162198508-198708

BODY SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-10132×2iAT160,ST162198508-198708

*10-1.25PX80-20,BODY SIDE,RR

main90105-12117×2iAT160,ST162198508-198608

BODY SIDE,FR

main90105-12147×2iAT160,ST162198608-198708

*12-1.25PX74.5-25,BODY SIDE,FR

main90105-14036×2iAT160,ST162198508-198708

*14-1.5PX248-30,CARRIER SIDE

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20060iAT160,ST162198508-198708

sub48710-20220

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-20050iAT160,ST162198508-198708

sub48720-20090

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20010×2iAT160,ST162198508-198708

48750SUPPORT ASSY, REAR SUSPENSION

main48750-20010iAT160,ST162198508-198708

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08095×6iAT160,ST162198508-198604

main90179-08111×6iAT160,ST162198604-198708

48753COVER, REAR SUSPENSION SUPPORT

main48753-16010iAT160,ST162198508-198708

48780AROD ASSY, STRUT, REAR

main48780-20020×2iAT160,ST162198508-198708

48780BBOLT(FOR STRUT ROD)

main90105-12035×4iAT160,ST162198508-198608

main90105-12082×4iAT160,ST162198608-198703

main90119-12131×4iAT160,ST162198703-198708

48780CNUT(FOR STRUT ROD)

main90179-12023×2iAT160,ST162198508-198608

CARRIER SIDE

main90179-12049×2iAT160,ST162198508-198608

BODY SIDE

main90179-12062×2iAT160,ST162198608-198708

CARRIER SIDE

main90179-12063×2iAT160,ST162198608-198708

BODY SIDE

48805BAR SUB-ASSY, REAR STABILIZER

main48812-20150iAT160198508-198708

main48812-20170iST162198508-198708

48815RBUSH, STABILIZER(FOR REAR)

main48818-20080×2iAT160198508-198708

main48818-20100×2iST162198508-198708

sub48818-12160

48824RBRACKET, STABILIZER(FOR REAR)

main48832-20020×2iAT160,ST162198508-198708

48830LINK ASSY, REAR STABILIZER

main48830-20010×2iAT160,ST162198508-198708

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iAT160,ST162198508-198708

9161560820

main91615-60820

9418211400

main94182-11400

31 parts on this diagram · 1 diagram in section
