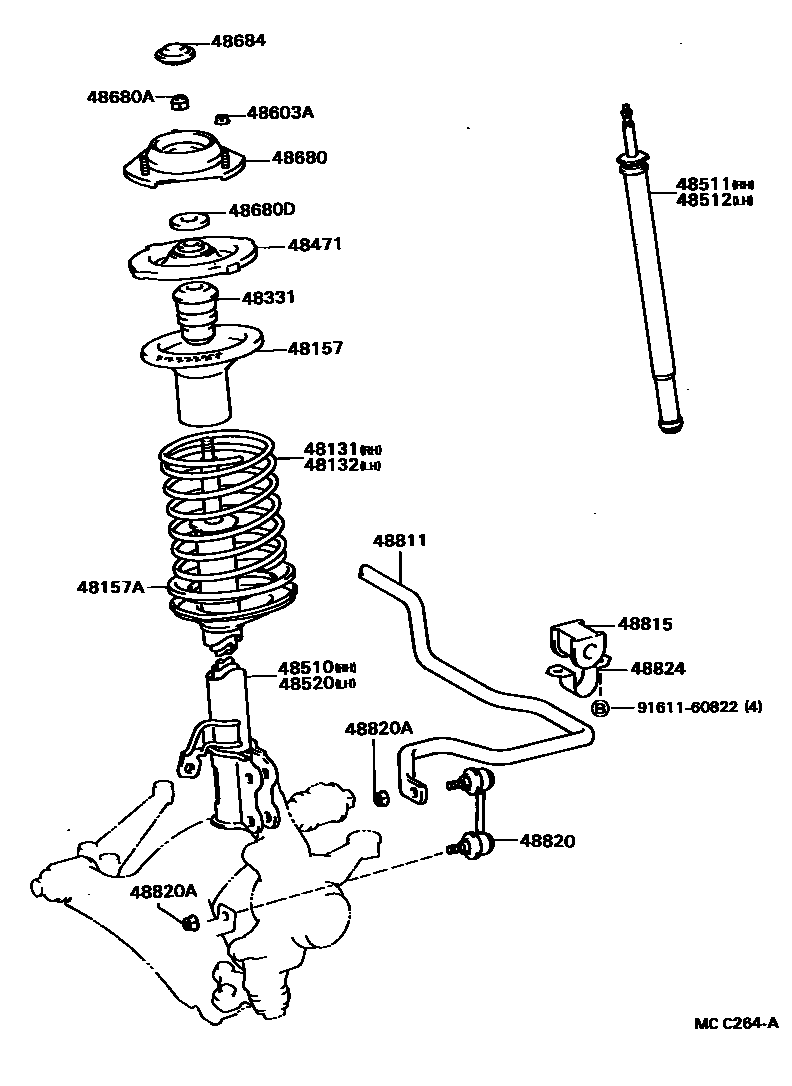

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-2D330iAT160..CBR¥10,200198508-198708

sub48131-1E720¥10,800

main48131-2D430iAT160..TWC¥10,600198508-198708

main48131-2D470iST162..(CP,LB)..5F¥9,200198508-198708

main48131-2D500iST162..4FC¥10,100198508-198708

main48131-2D700iST162..CVT¥10,100198610-198708

48132SPRING, FRONT COIL, LH

main48131-2D330iAT160..CBR¥10,200198508-198708

sub48131-1E720¥10,800

main48131-2D430iAT160..TWC¥10,600198508-198708

main48131-2D460iST162..(CP,LB)..RHD..5F¥9,100198508-198708

main48131-2D470iST162..RHD..4FC¥9,200198508-198708

main48131-2D500iST162..LHD..4FC¥10,100198508-198708

main48131-2D680iST162..CVT..RHD¥9,800198610-198708

main48131-2D700iST162..CVT..LHD¥10,100198610-198708

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20040iAT160,ST162¥2,060198508-198708

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12020iAT160,ST162¥680198508-198708

48331BUMPER, FRONT SPRING, NO.1

main48331-20040iAT160,ST162¥2,090198508-198708

sub48331-12130¥2,080

48471SEAT, FRONT SPRING, UPPER

main48044-32010iAT160,ST162¥1,300198508-198708

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20260iAT160,ST162..TWC¥23,600198508-198708

sub48510-20261¥24,400

main48510-20270iAT160..CBR¥23,600198508-198708

sub48510-20271¥24,400

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20140iAT160..CBR¥14,700198508-198708

sub48511-20150¥14,700

main48511-20150iAT160,ST162..TWC¥14,700198508-198708

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20140iAT160..CBR¥14,700198508-198708

sub48511-20150¥14,700

main48511-20150iAT160,ST162..TWC¥14,700198508-198708

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20250iAT160,ST162..TWC¥23,600198508-198708

sub48520-20251¥24,400

main48520-20260iAT160..CBR¥23,600198508-198708

sub48520-20261¥24,400

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-20090iAT160,ST162¥6,500198508-198708

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAT160,ST162¥310198508-198708

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT160,ST162¥260198508-198708

48684COVER, BEARING DUST

main48684-32010iAT160,ST162¥590198508-198708

48811BAR, STABILIZER, FRONT

main48811-20250iAT160..CBR¥15,300198508-198708

main48811-20320iAT160,ST162..TWC¥10,000198508-198708

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-24010iAT160..CBR¥600198508-198708

main48815-24020iAT160,ST162..TWC¥590198508-198708

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAT160,ST162¥5,300198508-198708

48820ANUT(FOR FRONT STABILIZER LINK)

48824BRACKET, STABILIZER, FRONT

main48824-20040iAT160,ST162¥300198508-198708

9161160822

main91611-60822¥170

21 parts on this diagram · 1 diagram in section
