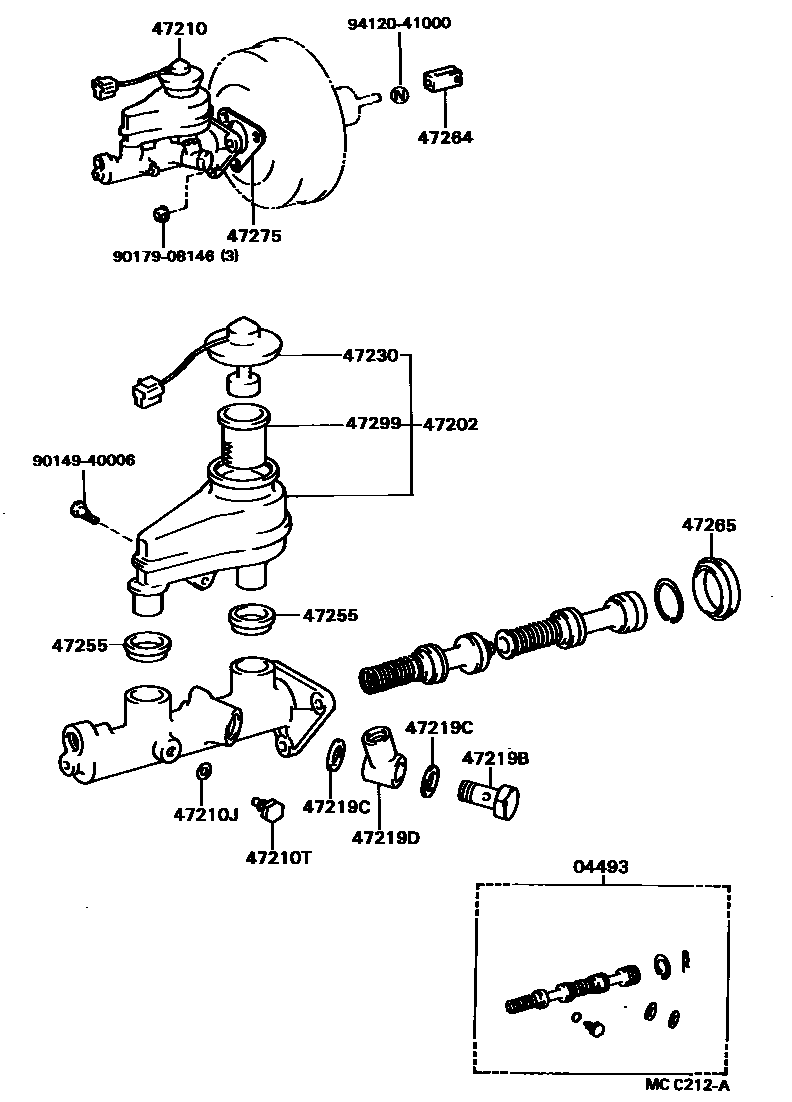

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-20130iAT160,ST162198508-198708

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20270iST162..RHD198508-198708

main47202-20280iAT160,ST162..LHD198508-198708

main47202-20300iST162..SDZ198508-198708

NORTHERN EUROPE SPEC

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-20380iST162..RHD198508-198708

main47201-20390iAT160,ST162..LHD198508-198708

main47201-20410iST162..SDZ198508-198708

NORTHERN EUROPE SPEC

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT160,ST162198508-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAT160,ST162198508-198708

47219BBOLT, UNION(FOR FLUID OUTLET REAR SIDE)

main90401-10023iST162..RHD198508-198708

47219CGASKET(FOR FLUID OUTLET UNION BOLT REAR SIDE)

main90430-10074iST162..RHD198508-198708

47219DUNION(FOR FLUID OUTLET REAR SIDE)

main90405-10073iST162..RHD198508-198708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12060iST162..SDZ198508-198708

NORTHERN EUROPE SPEC

main84460-12070iAT160,ST162198508-198708

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAT160,ST162198508-198708

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAT160,ST162198508-198708

47265BOOT, MASTER CYLINDER

main47265-20050iAT160,ST162198508-198708

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT160,ST162198508-198708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAT160,ST162198508-198708

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

17 parts on this diagram · 2 diagrams in section
