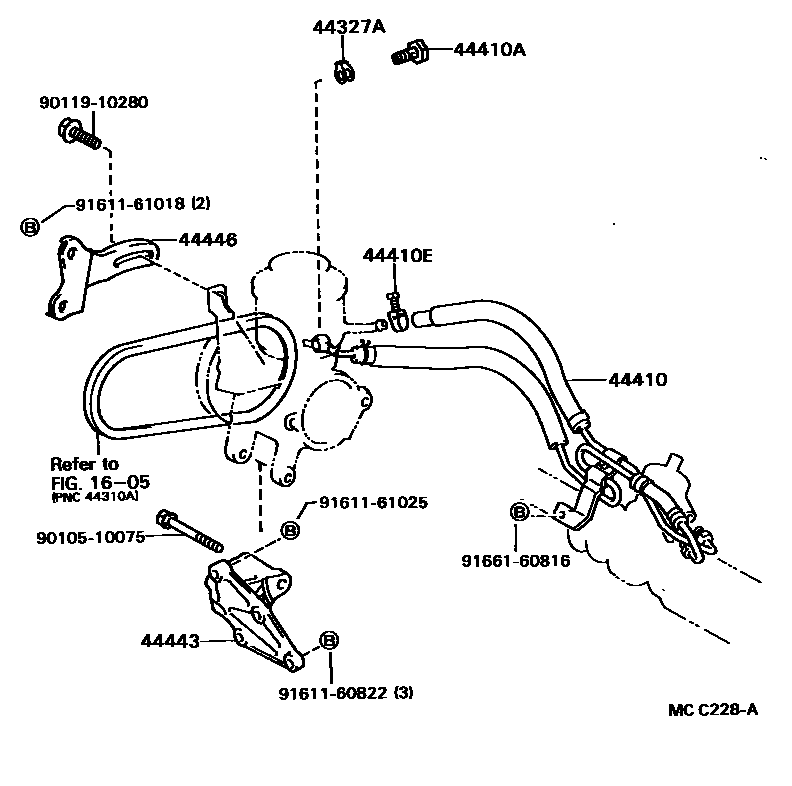

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST162;AT160..CBR¥260198508-198708

44410TUBE ASSY, PRESSURE FEED

main44410-20220iAT160..CBR¥26,300198508-198708

main44410-20250iST162..RHD¥14,200198508-198708

sub44410-20320¥14,600

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT160..CBR¥610198508-198708

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iAT160¥580198508-198708

GEAR SIDE

main90467-16008iAT160¥240198508-198708

RESERVOIR SIDE

sub90467-16019¥300

44443BRACKET, PUMP

main44443-12050iAT160..CBR¥8,500198508-198708

main44443-12060iAT160..TWC¥14,100198508-198708

main44443-20050iST162¥5,300198508-198708

44446STRUT, ADJUSTING

main44446-12030iAT160..CBR¥1,630198508-198708

9010510075

main90105-10075¥180

9011910280

main90119-10280¥360

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9166160816

main91661-60816¥130

13 parts on this diagram · 4 diagrams in section
