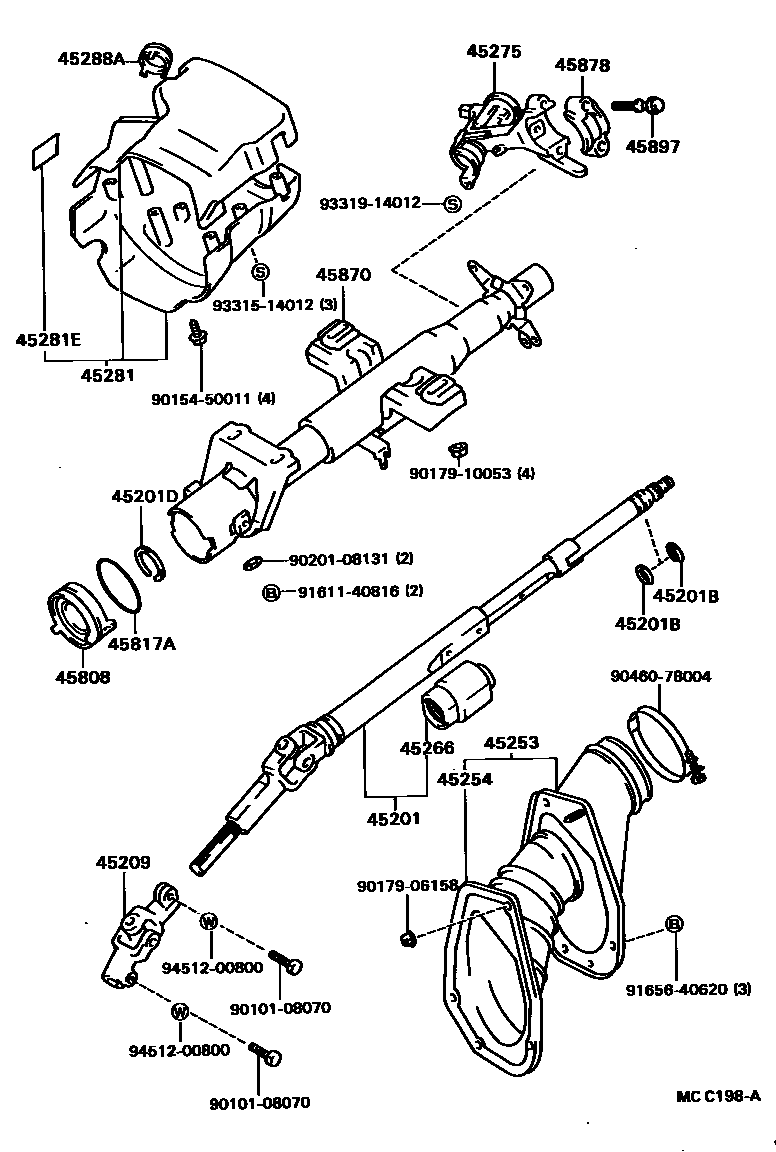

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
W/TILT STEERING
W/POWER STEERING
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-10020
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
W/POWER STEERING
45275BRACKET, STEERING COLUMN, UPPER
sub45280-20330
45281HOUSING, STEERING COLUMN
45281EPLATE, SAFETY CAUTION
45288ASPACER, COLUMN COVER
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9015450011
main90154-50011
9017906158
main90179-06158
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9165640620
main91656-40620
9331514012
main93315-14012
9331914012
main93319-14012
9451200800
main94512-00800
28 parts on this diagram · 3 diagrams in section
